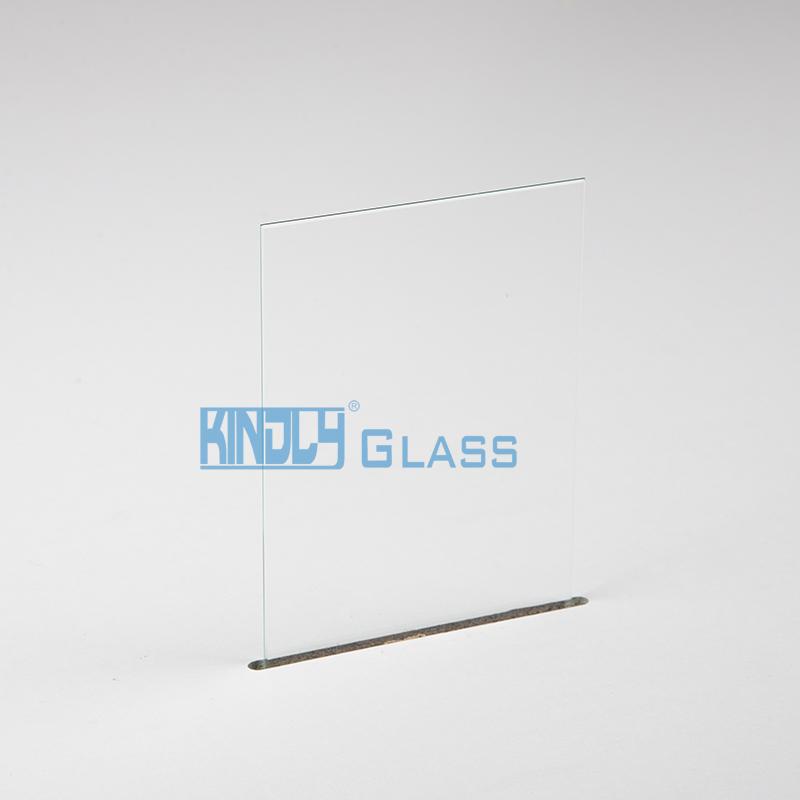

0.7-2.0mm Float Clear Glass

0.7-2.0mm Float Clear Glass 0.7-2.0mm Float Clear Glass 0.7-2.0mm Float Clear Glass 0.7-2.0mm Float Clear Glass
Type Float Clear Glass
Thickness 1.8,2, 2.5, 2.7 , 2.9 mm
3, 3.2 3.5 3.8,4 mm
4.5,5, 5.5,6,8,10,12mm
15,19,22,25mm
Standard Size 1220 x 1830, 1650 x 2200, 1700 x 2440, 1830 x 2440, 1900 x 2440, 1830 x 2200, 2000 x 2200, 2000 x 2440, 2140 x 3050/3300/3660, 2250 x 3050/3300/3660, 2440 x 3050/3300/3660
Jumbo Size 3300/3660*4000,5000,6000,7000,8000,9000,10000mm
3300/3660*11000,12000,13000,14000,15000mm
Incoterms EXW,FOB,CFR,CIF,CIP,DDU,DDP.
Lead time About 10 days upon receipt of your deposit or confirmation.
MOQ 100 Sqm.
Package Paper or powder interlayer between two glass panels and plywood crates with straps.
Payment Terms T/T, L/C, D/P, Western Union,Paypal.
Place of origin CHINA


Type Float Clear Glass
Thickness 1.8,2, 2.5, 2.7 , 2.9 mm
3, 3.2 3.5 3.8,4 mm
4.5,5, 5.5,6,8,10,12mm
15,19,22,25mm
Standard Size 1220 x 1830, 1650 x 2200, 1700 x 2440, 1830 x 2440, 1900 x 2440, 1830 x 2200, 2000 x 2200, 2000 x 2440, 2140 x 3050/3300/3660, 2250 x 3050/3300/3660, 2440 x 3050/3300/3660
Jumbo Size 3300/3660*4000,5000,6000,7000,8000,9000,10000mm
3300/3660*11000,12000,13000,14000,15000mm
Incoterms EXW,FOB,CFR,CIF,CIP,DDU,DDP.
Lead time About 10 days upon receipt of your deposit or confirmation.
MOQ 100 Sqm.
Package Paper or powder interlayer between two glass panels and plywood crates with straps.
Payment Terms T/T, L/C, D/P, Western Union,Paypal.
Place of origin CHINA

Float glass is a term for perfectly flat, clear glass (basic product). The term  float glass derives from the production method, introduced in the UK by Sir Alastair Pilkington in the late 1950's, by which 90% of today's flat glass is manufactured.

Production:The raw materials (silica sand, calcium, oxide, soda and magnesium) are properly weighted and mixed and then introduced into a furnace where they are melted at 1500° C. The molten glass then flows from the glass furnace into a bath of molten tin in a continuous ribbon. The glass, which is highly viscous, and the tin, which is very fluid, do not mix and the contact surface between these two materials is perfectly flat. When it leaves the bath of molten tin the glass has cooled down sufficiently to pass to an annealing chamber called a lehr. Here it is cooled at controlled temperatures, until it is essentially at room temperature.



Following is the standrad thickness and size :



Thickness  mm Clear Float Glass Panel Size mm Max loading Weight for 1*20' FCL
1.8,2,  2.5,  2.7  2.9 914 x 1220,   1220 x 1830, 1500x 2000,1650 x 2200, 1700 x 2440, 1830 x 2440,  1900 x 2440,  1830 x 2200,  2000 x 2200, 2000 x 2440 27500KGS
3,  3.2  3.5  3.8 1220 x 1830, 1650 x 2200, 1700 x 2440, 1830 x 2440,  1900 x 2440,  1830 x 2200,  2000 x 2200, 2000 x 2440, 2140 x 3050/3300/3660 27500KGS
4,  4.5,  4.8 1220 x 1830, 1650 x 2200, 1700 x 2440, 1830 x 2440,  1900 x 2440,  1830 x 2200,  2000 x 2200, 2000 x 2440, 2140 x 3050/3300/3660,  2250 x 3050/3300/3660,      2440 x 3050/3300/3660   27500KGS
5,  5.5 1220 x 1830, 1650 x 2200, 1700 x 2440, 1830 x 2440,  1900 x 2440,  1830 x 2200,  2000 x 2200, 2000 x 2440, 2140 x 3050/3300/3660,  2250 x 3050/3300/3660,      2440 x 3050/3300/3660   27500KGS
6 1220 x 1830, 1650 x 2200, 1700 x 2440, 1830 x 2440,  1900 x 2440,  1830 x 2200,  2000 x 2200, 2000 x 2440, 2140 x 3050/3300/3660,  2250 x 3050/3300/3660,      2440 x 3050/3300/3660   27500KGS
8 1220 x 1830, 1650 x 2200, 1700 x 2440, 1830 x 2440,  1900 x 2440,  1830 x 2200,  2000 x 2200, 2000 x 2440, 2140 x 3050/3300/3660,  2250 x 3050/3300/3660,      2440 x 3050/3300/3660   27500KGS
10 1220 x 1830, 1650 x 2200, 1700 x 2440, 1830 x 2440,  1900 x 2440,  1830 x 2200,  2000 x 2200, 2000 x 2440, 2140 x 3050/3300/3660,  2250 x 3050/3300/3660,      2440 x 3050/3300/3660   27500KGS
12 1220 x 1830, 1650 x 2200, 1700 x 2440, 1830 x 2440,  1900 x 2440,  1830 x 2200,  2000 x 2200, 2000 x 2440, 2140 x 3050/3300/3660,  2250 x 3050/3300/3660,      2440 x 3050/3300/3660, 3300 x 4500-6500   27500KGS
15 1830 x 2440, 2140 x 3050/3300/3660,  2250x3050/3300/3660,    2440 x 3050/3300/3660        3300 x 4500-13000 27500KGS
19 1830 x 2440, 2140 x 3050/3300/3660,  2250x3050/3300/3660,        2440 x 3050/3300/3660    3300 x 4500-13000 27500KGS
22 1830 x 2440, 2140 x 3050/3300/3660,  2250x3050/3300/3660,         2440 x 3050/3300/3660   3300 x 4500-13000 27500KGS
25 1830 x 2440, 2140 x 3050/3300/3660,      50x3050/3300/3660,             2440 x 3050/3300/3660   3300 x 4500-13000 27500KGS

Following is parameter for float clear glas:

Qingdao Kangdeli Industrial and Trading Co.,Ltd.
Thickness Visible Light Transmittance Visible Light Reflectivity Solar Radiant Heat Shading Coefficient U value Sopund Insulation UV Penet ration
Direct Penetrate Reflect Absorb Total penetrate Short Wave Long Wave Total W/m2K Rm(dB) Rw(dB) Solar energy sources series Architecture Series or else
2mm 91.50% 8% 91% 8% 1% 91% 1.08 0.01 1.05 5.8 25 29 89% 79%
3mm 91.50% 8% 90% 8% 1% 91% 1.05 0.01 1.05 5.8 26 30 88% 76%
3.2mm 91.40% 8% 90% 8% 2% 91% 1.03 0.01 1.05 5.8 26 30 88% 75%
4mm 91.38% 8% 90% 8% 2% 91% 1.03 0.01 1.05 5.8 27 30 87.5% 73%
5mm 91.30% 8% 90% 8% 2% 90% 1.03 0.01 1.03 5.8 29 32 87% 71%
6mm 91.08% 8% 89% 8% 3% 90% 1.02 0.01 1.03 5.7 29 32 86.5% 70%
8mm 90.89% 8% 88% 8% 4% 89% 1.01 0.01 1.02 5.7 31 34 85.4% 68%
10mm 90.62% 8% 88% 8% 4% 89% 1.01 0.02 1.02 5.6 33 36 84% 66%
12mm 90.44% 8% 87% 8% 5% 88% 1.00 0.02 1.02 5.5 34 37 82.5% 64%
15mm 90.09% 8% 86% 8% 6% 87% 0.99 0.02 1.00 5.5 35 38 81% 61%
19mm 89.73% 8% 84% 8% 7% 86% 0.97 0.02 0.99 5.5 37 40 80% 59%
22mm 89.60% 8% 82% 8% 9% 85% 0.95 0.02 0.97 5.5 38 43 80% 58%
25mm 89.00% 8% 81% 8% 9% 84% 0.93 0.02 0.95 5.5 39 45 79% 56%
Packing: Paper or powder interlayer between two glass panels and plywood crates or wooden crates with straps.

Crates type including  open crates, end cap, common frame as following:
