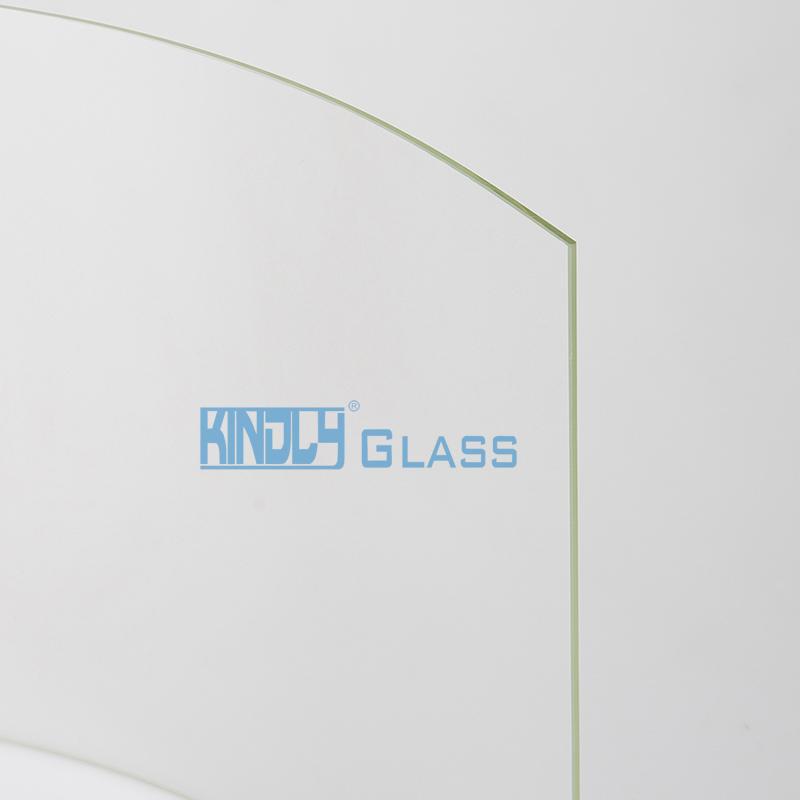

4mm Curved Borosilicate Float Glass 3.3

4mm Curved Borosilicate Float Glass 3.3 4mm Curved Borosilicate Float Glass 3.3 4mm Curved Borosilicate Float Glass 3.3 4mm Curved Borosilicate Float Glass 3.3
Type Borosilicate Fireproof Glass
Thickness 2,3,4,5,6,8,10,12, 15mm
Standard Size 1200*1800mm 1200*600mm 1200*900mm
Incoterms EXW,FOB,CFR,CIF,CIP,DDU,DDP.
Lead time About 20 days upon receipt of your deposit or confirmation.
MOQ 100 Sqm.
Package Paper or powder interlayer between two glass panels and plywood crates with straps.
Payment Terms T/T, L/C, D/P, Western Union,Paypal.
Place of origin CHINA


Type Borosilicate Fireproof Glass
Thickness 2,3,4,5,6,8,10,12, 15mm
Standard Size 1200*1800mm 1200*600mm 1200*900mm
Incoterms EXW,FOB,CFR,CIF,CIP,DDU,DDP.
Lead time About 20 days upon receipt of your deposit or confirmation.
MOQ 100 Sqm.
Package Paper or powder interlayer between two glass panels and plywood crates with straps.
Payment Terms T/T, L/C, D/P, Western Union,Paypal.
Place of origin CHINA

Borosilicate Glass 3.3 is highly resistant to water, neutral and acid solutions, concentrated acids and acid mixtures, and to chorine, bromine, iodine and organic substances. The chemical resistance of this glass is superior to that of most metals and other materials, even when exposed to long processing periods and temperatures above 100 ºC. A slight release of mainly monovalent ions takes place after exposure of the glass to water or acids. A very thin layer of impervious silica gel is subsequently formed on the surface of the glass, which in turn slows clown further attack. At higher temperatures and in more concentrated forms the glass surface is subject to increased attack by hydrofluoric acid, hot phosphoric acid and alkaline solutions.



cut, edgework, drill, acceptable



Characteristics:

great heat resistance performance, stable chemical property;

high light transmission



Application

household electrical appliance

fireplace glass

optical(filter)

medical and physic(slide glass,Titration plate )

Borosilicate Glass Properties
  Metric US
Coefficient of mean linear thermal
expansion a acc. to DIN ISO 7991
3.3 · 10-6 K-1
(20 °C; 300 °C)
3.3 · 10-6 K-1
(68 °F; 572 °F)
Transformation temperature Tg
525 °C
977 °F
Density r at 25 °C 2.23 g · cm-3 139.2 lb · ft-3
Modulus of elasticity E (Young’s modulus) 63 · 103 N · mm-2 91 · 105 lb · in-2 (psi)
Poisson’s ratio m 0.2 0.2
Thermal conductivity lw at 90 °C 1.2 W · m-1 · K-1 0.69 Btu · hr -1 · ft-1 · °F-1
Refractive index (l = 587.6 nm) nd 1.473 1.473
Stress-optical coefficient (DIN 52 314) K 4.0 · 10-6 mm2 · N -1 4.0 · 10-6 mm2 · N-1
Chemical Composition Chemical Resistance
SiO2    B2O3     Na2O+K2O         AI2O3 Hydrolytic Class (DIN ISO 719) HGB 1
81      13              4                   2 Acid Class (DIN 12116) Class S 1
  Alkali Class (DIN ISO 695) Class A 2
Packing: Paper or powder interlayer between two glass panels and plywood crates or wooden crates with straps.

Crates type including  open crates, end cap, common frame as following:
