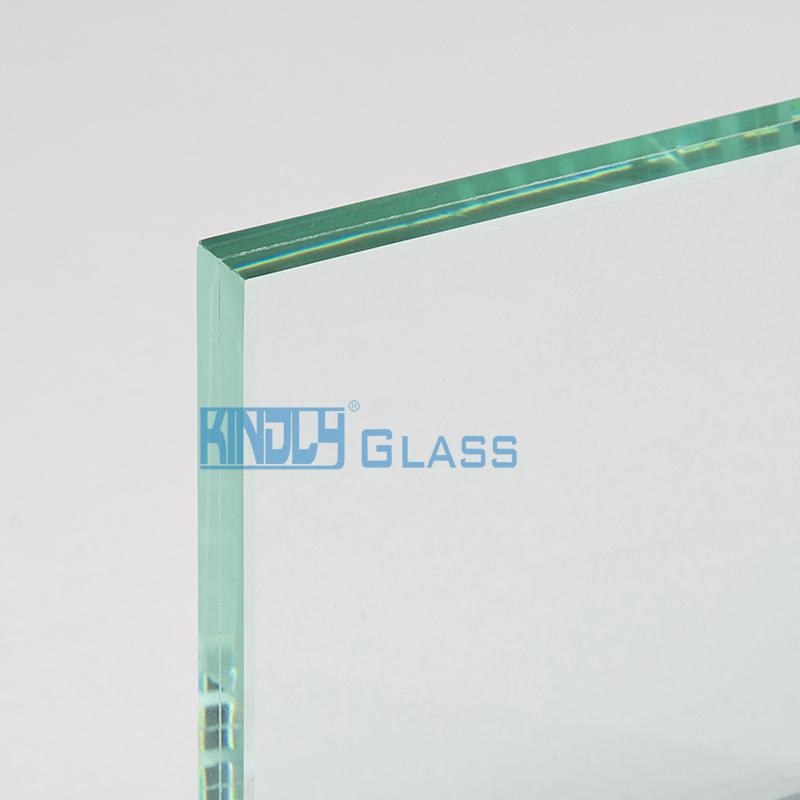

55.1 SGP Clear Laminated Glass

55.1 SGP  Clear Laminated Glass 55.1 SGP  Clear Laminated Glass 55.1 SGP  Clear Laminated Glass 55.1 SGP  Clear Laminated Glass
Type SGP Laminated Glass
Thickness 3,4,5,6,8,10,12mm
Other Colors French Green (Light Green),Dark Green(Natural Green); Ford Blue, Dark Blue (Diamond Blue); Ocean Blue, Kunshan Blue, Crystal Blue; Euro Bronze(Grey Bronze), Golden Bronze, Pink; Blue Grey,Dark Grey, Crystal Grey, Black; Crystal Yellow.
Standard Size Minimun :305*305MM
Maxinum:2440*4500MM
Incoterms EXW,FOB,CFR,CIF,CIP,DDU,DDP.
Lead time About 20 days upon receipt of your deposit or confirmation.
MOQ 100 Sqm.
Package Paper or cork pad interlayer between two glass panels and plywood crates with straps.
Payment Terms T/T, L/C, D/P, Western Union,Paypal.
Place of origin CHINA


Type SGP Laminated Glass
Thickness 3,4,5,6,8,10,12mm
Other Colors French Green (Light Green),Dark Green(Natural Green); Ford Blue, Dark Blue (Diamond Blue); Ocean Blue, Kunshan Blue, Crystal Blue; Euro Bronze(Grey Bronze), Golden Bronze, Pink; Blue Grey,Dark Grey, Crystal Grey, Black; Crystal Yellow.
Standard Size Minimun :305*305MM
Maxinum:2440*4500MM
Incoterms EXW,FOB,CFR,CIF,CIP,DDU,DDP.
Lead time About 20 days upon receipt of your deposit or confirmation.
MOQ 100 Sqm.
Package Paper or cork pad interlayer between two glass panels and plywood crates with straps.
Payment Terms T/T, L/C, D/P, Western Union,Paypal.
Place of origin CHINA

Laminated glass with interlayer (SGP) is the latest innovation of glass  laminated  products. It extends the performance of laminated glass beyond current technologies.

It  offers five times the tear strength and 100 times the rigidity of conventional PVB  interlayer.

Because of its added strength, clarity, durability, fabrication and installation ease, it is an excellent candidate for demanding applications in the architectural market place.

It can offer improved ballistic protection or thinner constructions than are now

possible with conventional laminated glass.



Benefits:

* Better edge stability than PVB , makingit the correct choice for exposed edge applications.

*  Approximately five times stronger than PVB, allowing for thinner laminated for equal or greater strength.

* Unmatched clarity

*  UV protection

* Sound attenuation



Qingdao Kangdeli Industrial and Trading Co.,Ltd.
Laminated Glass with  Dupont SGP Interlayer
Laminate Color Nominal Laminate Thickness Make-Up Visible Light U-Factor SC SHGC
Outboard Lite SGP Inboard Lite Transmittance% Reflectance%(Outdoor)
Clear 5/16"  1/8" Clear 0.060 SGP 1/8" Clear 88 8 0.99 0.89 0.77
Clear 7/16" 3/16" Clear 0.060 SGP 3/16" Clear 86 8 0.97 0.85 0.73
Clear 9/16" 1/4" Clear 0.060 SGP 1/4" Clear 85 8 0.95 0.83 0.72

Packing: Paper or cork  pad interlayer between two glass panels and plywood crates with straps.


Crates type including  open crates, end cap, common frame as following:
