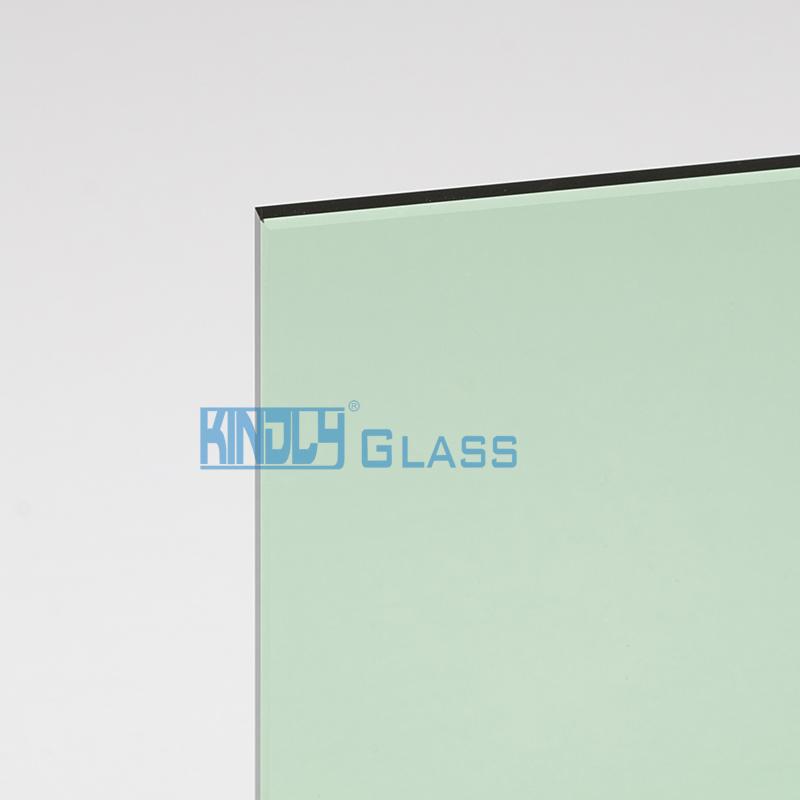

6-8mm Dark Green Tinted Glass(Natural Green Tinted)

6-8mm Dark Green Tinted Glass(Natural Green Tinted) 6-8mm Dark Green Tinted Glass(Natural Green Tinted) 6-8mm Dark Green Tinted Glass(Natural Green Tinted) 6-8mm Dark Green Tinted Glass(Natural Green Tinted)
Type Float Tinted Glass
Thickness 3,4,5,5.5,6,8,10,12mm
Other Colors French Green (Light Green),Dark Green(Natural Green);

Ford Blue, Dark Blue (Diamond Blue), Ocean Blue;

Kunshan Blue, Crystal Blue;

Euro Bronze(Grey Bronze), Golden Bronze, Pink;

Blue Grey,Dark Grey, Crystal Grey, Black;

Crystal Yellow.
Standard Size 1650x2440,1830x2440,1650x2140,

2140x3300/3660,2250x3300/3660,

2440x3300/3660
Incoterms EXW,FOB,CFR,CIF,CIP,DDU,DDP.
Lead time About 20 days upon receipt of your deposit or confirmation.
MOQ 100 Sqm.
Package Paper or powder interlayer between two glass panels and plywood crates with straps.
Payment Terms T/T, L/C, D/P, Western Union, Paypal.
Place of origin CHINA


Type Float Tinted Glass
Thickness 3,4,5,5.5,6,8,10,12mm
Other Colors French Green (Light Green),Dark Green(Natural Green);

Ford Blue, Dark Blue (Diamond Blue), Ocean Blue;

Kunshan Blue, Crystal Blue;

Euro Bronze(Grey Bronze), Golden Bronze, Pink;

Blue Grey,Dark Grey, Crystal Grey, Black;

Crystal Yellow.
Standard Size 1650x2440,1830x2440,1650x2140,

2140x3300/3660,2250x3300/3660,

2440x3300/3660
Incoterms EXW,FOB,CFR,CIF,CIP,DDU,DDP.
Lead time About 20 days upon receipt of your deposit or confirmation.
MOQ 100 Sqm.
Package Paper or powder interlayer between two glass panels and plywood crates with straps.
Payment Terms T/T, L/C, D/P, Western Union, Paypal.
Place of origin CHINA

Tinted glass is a normal float-clear glass into whose melt colorants are added for tinting and solar-radiation absorption

                         properties.This reduces heat penetration in buildings. Coloured glass is an important architectural element

                         for the exterior appearance of facades. It is also used in interior decoration (doors, partitions, staircase

                         panels, mirrors,...).



Thickness:3,4,5,5.5,6,8,10,12,mm

Tolerance:2-6mm:+/-0.20mm,8-12mm:+/-0.30mm

Size as below:



Thickness(mm) Tinted and Coated Glass Panel Size(mm) Max Loading Weight/CNT
3 1650 x 2440,  1830 x 2440, 1650 x 2140,  2140 x 3300/3660, 2250 x 3300/3660, 2440 x 3300/3660   27 Tons
4 1650 x 2440,  1830 x 2440, 1650 x 2140,  2140 x 3300/3660,2250 x 3300/3660, 2440 x 3300/3660   27 Tons
5,  5.5 1650 x 2440,  1830 x 2440, 1650 x 2140,  2140 x 3300/3660, 2250 x 3300/3660,  2440 x 3300/3660   27 Tons
6 1650 x 2440,  1830 x 2440, 1650 x 2140,  2140 x 3300/3660, 2250 x 3300/3660, 2440 x 3300/3660   27 Tons
8 1650 x 2440,  1830 x 2440, 1650 x 2140,  2140 x 3300/3660,2250 x 3300/3660, 2440 x 3300/3660   27 Tons
10 1650 x 2440,  1830 x 2440, 1650 x 2140,  2140 x 3300/3660,2250 x 3300/3660, 2440 x 3300/3660   27 Tons
12 1650 x 2440,  1830 x 2440, 1650 x 2140,  2140 x 3300/3660, 2250 x 3300/3660, 2440 x 3300/3660   27 Tons

Production is the same as in float glass production. The only variation is the colorants mixed at the beginning with the standard raw materials.

Specific parameters as below:



Color Thick mm Visible Trans V.T% Solar heat Shading Coefficient
Reflect % Absorb.% Direct Trans. H.T.%  Total Heat Trans. H.T.%  Relative Heat Gain BTU/hr.sq.ft
Absorb Reradiated To Outdoors  Reradiated To Indoors
Bronze 3 68 5 28 20 8 67 75 219 0.86
4 58 5 35 24 11 60 70 205 0.79
5 55 5 42 29 13 53 66 194 0.76
6 50 5 47 33 14 48 62 183 0.71
8 41 5 56 39 17 39 56 167 0.64
10 33 5 64 45 19 31 50 151 0.57
12 27 5 70 49 21 25 46 139 0.53
Dark Grey 3 41 5 34 24 10 61 71 208 0.82
5 24 5 48 34 14 47 61 181 0.70
6 18 5 54 38 16 41 57 170 0.66
Green 4 80 5 35 24 11 60 71 205 0.82
5 78 5 41 29 12 54 66 194 0.76
6 75 5 47 33 14 48 62 183 0.71
8 70 5 56 39 17 39 56 167 0.64
10 65 5 64 45 19 31 50 151 0.57
12 61 5 70 49 21 25 46 139 0.53
Blue 3 82 5 26 18 8 69 77 224 0.89
5 76 5 38 27 11 57 68 200 0.78
6 73 5 43 30 13 52 65 192 0.75
8 68 5 52 36 16 43 59 175 0.68
10 63 5 59 41 18 36 54 162 0.53
12 58 5 66 46 20 29 49 148 0.56



Different additives may produce differently coloured glasses.Some of the most-used colorants and colours they produce are below:



COLORANT

GLASS COLORS

Iron

Green, brown, blue

Manganese

Purple

Chromium

Green, yellow, pink

Vanadium

Green, blue, grey

Copper

Blue, green, red

Cobalt

Blue, green pink

Nickel

Yellow, purple

Cadmium Sulphide

Yellow

Titanium

Purple, brown

Cerium

Yellow

Carbon & Sulphur

Amber, brown

Selenium

Pink, red

Gold

Red



Packing: Paper or powder interlayer between two glass panels and plywood crates or wooden crates with straps.

               Crates type include open crates, end cap, common frame.
