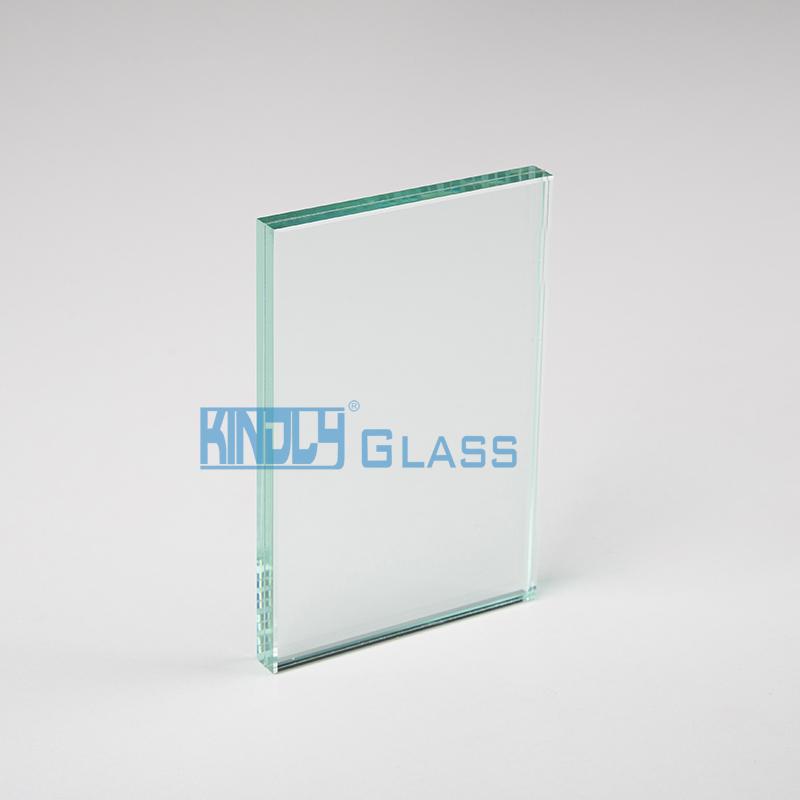

66.2 Clear Laminated Glass

66.2 Clear Laminated Glass 66.2 Clear Laminated Glass 66.2 Clear Laminated Glass 66.2 Clear Laminated Glass
Type PVB Laminated Glass
Thickness 4.38, 5.38, 6.38, 8.38, 10.38, 10.76 mm
22.1, 33.1, 44.1,55.2,66.2,88.2,1010.2 mm
1010.2 , 1515.2, 1919.2 mm
1010.4 , 1515.6, 1919.6 mm
Other Colors French Green (Light Green),Dark Green(Natural Green);
Ford Blue, Dark Blue (Diamond Blue);
Kunshan Blue, Crystal Blue; Ocean Blue,
Euro Bronze(Grey Bronze), Golden Bronze,
Blue Grey,Dark Grey, Crystal Grey,
Black; Crystal Yellow.Pink
Standard Size 1650 x 2440, 1830 x 2440, 1650 x 2140, 2140 x 3300/3660, 2250 x 3300/3660, 2440 x 3300/3660
Jumbo Size 3300*13000 mm
3300*14000 mm
3300*15000 mm
Incoterms EXW,FOB,CFR,CIF,CIP,DDU,DDP.
Lead time About 20 days upon receipt of your deposit or confirmation.
MOQ 100 Sqm.
Package Paper or powder interlayer between two glass panels and plywood crates with straps.
Payment Terms T/T, L/C, D/P, Western Union,Paypal.
Place of origin CHINA


Type PVB Laminated Glass
Thickness 4.38, 5.38, 6.38, 8.38, 10.38, 10.76 mm
22.1, 33.1, 44.1,55.2,66.2,88.2,1010.2 mm
1010.2 , 1515.2, 1919.2 mm
1010.4 , 1515.6, 1919.6 mm
Other Colors French Green (Light Green),Dark Green(Natural Green);
Ford Blue, Dark Blue (Diamond Blue);
Kunshan Blue, Crystal Blue; Ocean Blue,
Euro Bronze(Grey Bronze), Golden Bronze,
Blue Grey,Dark Grey, Crystal Grey,
Black; Crystal Yellow.Pink
Standard Size 1650 x 2440, 1830 x 2440, 1650 x 2140, 2140 x 3300/3660, 2250 x 3300/3660, 2440 x 3300/3660
Jumbo Size 3300*13000 mm
3300*14000 mm
3300*15000 mm
Incoterms EXW,FOB,CFR,CIF,CIP,DDU,DDP.
Lead time About 20 days upon receipt of your deposit or confirmation.
MOQ 100 Sqm.
Package Paper or powder interlayer between two glass panels and plywood crates with straps.
Payment Terms T/T, L/C, D/P, Western Union,Paypal.
Place of origin CHINA

Laminated glass is a combination of two or more glass sheets with one or more interlayers of plastic (PVB) or resin. In case of breakage, the interlayer holds the fragments together and continues to provide resistance to the passage of persons or objects. This glass is particularly suitable where it is important to ensure the resistance of the whole sheet after breakage such as: shop-fronts, balconies, stair-railings, roof glazing.



Production:

There are two types of laminated glass: PVB and resin laminated glass: PVB laminated glass is two or more sheets of glass which are bonded together with one or more layers (PVB) under heat and pressure to form a single piece. Resins laminated glass is manufactured by pouring liquid resin into the cavity between two sheets of glass which are held together until the resin cures.



Features:

1) Extremely high safety: The PVB interlayer withstands penetration from impact. Even if the glass cracks, splinters will adhere to the interlayer and not scatter. In comparison with other kinds of glass, laminated glass has much higher strength to resist shock, burglary, burst and bullets.

2) Energy-saving building materials: PVB interlayer impedes the transmission of solar heat and reduces cooling loads.

3) Create aesthetic sense to buildings: Laminated glass with a tinted interlayer will beautify the buildings and harmonize their appearances with surrounding views which meet the demand of architects.

4) Sound control: PVB interlayer is an effective absorber of sound.

5) Ultraviolet screening: The interlayer filters out ultraviolet rays and prevents the furniture and curtains from fading effec

Following is parameter  for   clear  laminated  glass :





Qingdao Kangdeli Industrial and Trading Co.,Ltd.
Laminated Glass with Clear Interlayer
Laminate Color Nominal Laminate Thickness Make-Up Visible Light   U-Factor SC SHGC STC OITC
Outboard Lite PVB Inboard Lite Transmittance% Reflectance%(Outdoor)
Clear 1/4"  1/8" Clear 0.030 Clear 1/8" Clear 88 8 1.00 0.91 0.79 28 28
Clear 5/16" 1/8" Clear 0.060 Clear 1/8" Clear 88 8 0.98 0.90 0.78 31 31
Clear 5/16" 1/8" Clear 0.090 Clear 1/8" Clear 88 8 0.96 0.89 0.77 32 32
Clear 3/8" 3/16" Clear 0.030 Clear 3/16" Clear 86 8 0.98 0.86 0.74 33 33
Clear 7/16" 3/16" Clear 0.060 Clear 3/16" Clear 86 8 0.96 0.85 0.74 32 32
Clear 7/16" 3/16" Clear 0.090 Clear 3/16" Clear 86 8 0.94 0.84 0.73 32 32
Clear 1/2" 1/4" Clear 0.030 Clear 1/4" Clear 85 8 0.97 0.84 0.73 39 33
Clear 9/16" 1/4" Clear 0.060 Clear 1/4" Clear 85 8 0.95 0.83 0.72 39 33
Clear 9/16" 1/4" Clear 0.090 Clear 1/4" Clear 85 8 0.93 0.83 0.72 39 33
Grey 9/16" 1/4" Grey 0.060 Clear 1/4" Clear 43 5 0.95 0.61 0.53 39 33
Green 9/16" 1/4" Green 0.060 Clear 1/4" Clear 74 7 0.95 0.66 0.57 39 33
Bronze 9/16" 1/4" Bronze 0.060 Clear 1/4" Clear 49 5 0.95 0.65 0.56 39 33
Blue 9/16" 1/4" Blue 0.060 Clear 1/4" Clear 55 6 0.95 0.65 0.56 39 33


Packing: Paper or cord  pad interlayer between two glass panels and plywood crates with straps.


Crates type including  open crates, end cap, common frame as following:
