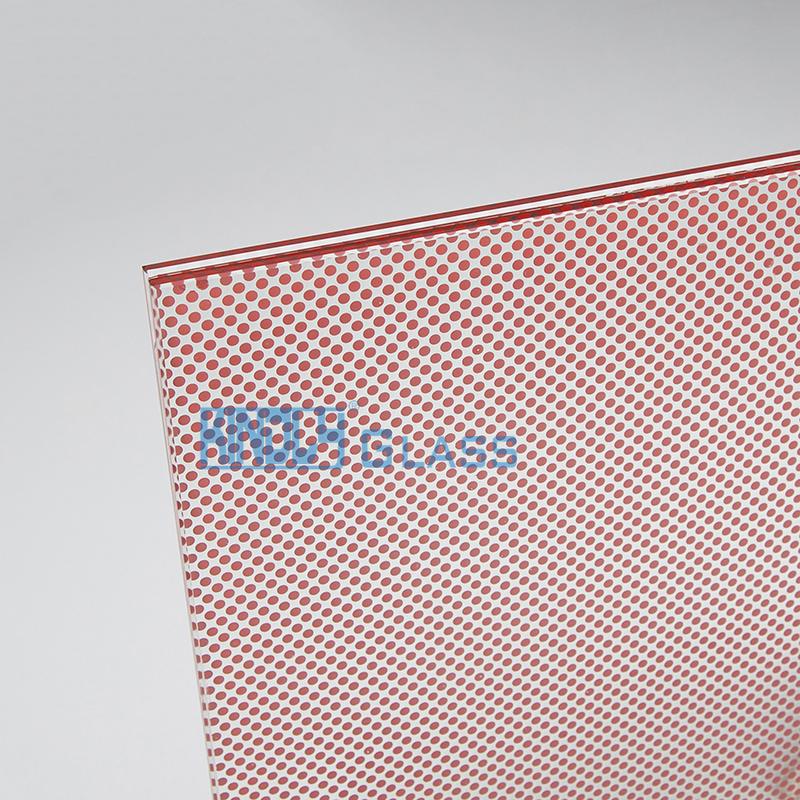

Ceramic Fritted Laminated Glass

Ceramic Fritted Laminated Glass Ceramic Fritted Laminated Glass Ceramic Fritted Laminated Glass Ceramic Fritted Laminated Glass
Type Clear Laminated Glass
Thickness 4.38, 5.38, 6.38, 8.38, 10.38, 10.76 mm
22.1, 33.1, 44.1,55.2,66.2,88.2,1010.2 mm
1010.2 , 1515.2, 1919.2 mm
1010.4 , 1515.6, 1919.6 mm
Other Colors French Green (Light Green),Dark Green(Natural Green);
Ford Blue, Dark Blue (Diamond Blue);
Kunshan Blue, Crystal Blue; Ocean Blue,
Euro Bronze(Grey Bronze), Golden Bronze,
Blue Grey,Dark Grey, Crystal Grey,
Black; Crystal Yellow.Pink
Standard Size 610*914,914*1220,1830*1220,1524*2134,1650*2140,914*2440,1070*2440, 1220*2440,1650*2440,1830*2140,1830*2440,1830*3050,1830*3210,
1830*3300,1830*3660,2140*3050,2140*3210,2140*3300,2140*3660,2250*3050,
2250*3210,2250*3300,2250*3660,2440*3050,2440*3210,2440*3300,2440*3660 2550*1650,2550*2440,2550*3050,2550*3210,2550*3300,2550*3660
Incoterms EXW,FOB,CFR,CIF,CIP,DDU,DDP.
Lead time About 20 days upon receipt of your deposit or confirmation.
MOQ 100 Sqm.
Package Paper or cork pad interlayer between two glass panels and plywood crates with straps.
Payment Terms T/T, L/C, D/P, Western Union,Paypal.
Place of origin CHINA


Type Clear Laminated Glass
Thickness 4.38, 5.38, 6.38, 8.38, 10.38, 10.76 mm
22.1, 33.1, 44.1,55.2,66.2,88.2,1010.2 mm
1010.2 , 1515.2, 1919.2 mm
1010.4 , 1515.6, 1919.6 mm
Other Colors French Green (Light Green),Dark Green(Natural Green);
Ford Blue, Dark Blue (Diamond Blue);
Kunshan Blue, Crystal Blue; Ocean Blue,
Euro Bronze(Grey Bronze), Golden Bronze,
Blue Grey,Dark Grey, Crystal Grey,
Black; Crystal Yellow.Pink
Standard Size 610*914,914*1220,1830*1220,1524*2134,1650*2140,914*2440,1070*2440, 1220*2440,1650*2440,1830*2140,1830*2440,1830*3050,1830*3210,
1830*3300,1830*3660,2140*3050,2140*3210,2140*3300,2140*3660,2250*3050,
2250*3210,2250*3300,2250*3660,2440*3050,2440*3210,2440*3300,2440*3660 2550*1650,2550*2440,2550*3050,2550*3210,2550*3300,2550*3660
Incoterms EXW,FOB,CFR,CIF,CIP,DDU,DDP.
Lead time About 20 days upon receipt of your deposit or confirmation.
MOQ 100 Sqm.
Package Paper or cork pad interlayer between two glass panels and plywood crates with straps.
Payment Terms T/T, L/C, D/P, Western Union,Paypal.
Place of origin CHINA

Glazed glass :

 Printed the  inorganic glaze(also called ink) on to the glass surface ,

 then after drying, tempering or heat processing, the glaze will be  sintering in the glass surface and a wear-resistant, acid and alkali resistant decorative glass products.

This product is highly functional and decorative. It has many different colors and patterns, such as strips, reticulation and electrical patterns, etc. It can also be designed according to the different needs of the customer.



Laminated glass is a combination of two or more glass sheets with one or more interlayers of plastic (PVB) or resin. In case of breakage, the interlayer holds the fragments together and continues to provide resistance to the passage of persons or objects. This glass is particularly suitable where it is important to ensure the resistance of the whole sheet after breakage such as: shop-fronts, balconies, stair-railings, roof glazing.



Production:

There are two types of laminated glass: PVB and resin laminated glass: PVB laminated glass is two or more sheets of glass which are bonded together with one or more layers (PVB) under heat and pressure to form a single piece. Resins laminated glass is manufactured by pouring liquid resin into the cavity between two sheets of glass which are held together until the resin cures.





Packing: Paper or cork  pad interlayer between two glass panels and plywood crates with straps.


Crates type including  open crates, end cap, common frame as following:
