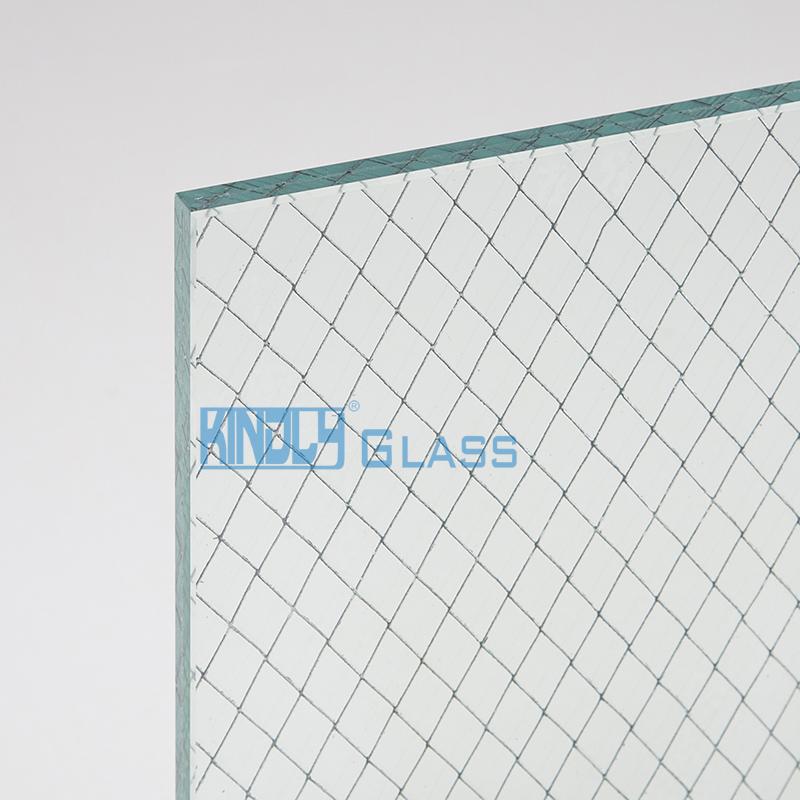

EVA Iron Net Laminated Glass

EVA Iron Net Laminated Glass EVA Iron Net Laminated Glass EVA Iron Net Laminated Glass EVA Iron Net Laminated Glass
Type EVA Laminated Glass
Thickness 2 layers / 4-50mm
Other Colors French Green (Light Green),Dark Green(Natural Green); Ford Blue, Dark Blue (Diamond Blue); Ocean Blue, Kunshan Blue, Crystal Blue; Euro Bronze(Grey Bronze), Golden Bronze, Pink; Blue Grey,Dark Grey, Crystal Grey, Black; Crystal Yellow.
Standard Size 1650 x 2440, 1830 x 2440, 1650 x 2140, 2140 x 3300/3660, 2250 x 3300/3660, 2440 x 3300/3660
Customized Size Acceptable
Incoterms EXW,FOB,CFR,CIF,CIP,DDU,DDP.
Lead time About 20 days upon receipt of your deposit or confirmation.
MOQ 100 Sqm.
Package Paper or cork pad interlayer between two glass panels and plywood crates with straps.
Payment Terms T/T, L/C, D/P, Western Union,Paypal.
Place of origin CHINA


Type EVA Laminated Glass
Thickness 2 layers / 4-50mm
Other Colors French Green (Light Green),Dark Green(Natural Green); Ford Blue, Dark Blue (Diamond Blue); Ocean Blue, Kunshan Blue, Crystal Blue; Euro Bronze(Grey Bronze), Golden Bronze, Pink; Blue Grey,Dark Grey, Crystal Grey, Black; Crystal Yellow.
Standard Size 1650 x 2440, 1830 x 2440, 1650 x 2140, 2140 x 3300/3660, 2250 x 3300/3660, 2440 x 3300/3660
Customized Size Acceptable
Incoterms EXW,FOB,CFR,CIF,CIP,DDU,DDP.
Lead time About 20 days upon receipt of your deposit or confirmation.
MOQ 100 Sqm.
Package Paper or cork pad interlayer between two glass panels and plywood crates with straps.
Payment Terms T/T, L/C, D/P, Western Union,Paypal.
Place of origin CHINA

EVA laminated glass  is safety glass made by laminating two or more sheets of glass with interlayer of EVA film). The glass and interlayer are fused together by heat and pressure. Products with all kinds of colors and patterns can be made according to customer requirement.



EVA Glass,one of the main differences between EVA and PVB is their water vapor transmission rate, coming from natural water or weather humidity. As the tests clearly shows the PVB has an average of 8-9 times higher tendency to permeate water than EVA. This property gives to EVA a great advantage compared to PVB in terms of transportation, storage and use. Not just that also in terms of product resistance against weathering conditions. Normally due to capillarity PVB laminates suffer from water penetration around the edges and glass lamination pieces angles affecting negatively the durability and the mechanical resistance of the laminate. One of the great advantages of EVA is its lower water absorbing compared to the PVB, that allows to store and manipulate the film out of the climatic chambers where PVB needs to be manipulated before lamination.





Applications:Interior decoration, etc.





Interlayer Interlayer Thickness Interlayer       Color Interlayer Feature Glass Layer Type Single Glass Layer Thickness Laminated Glass Layers/Thickness Laminated Glass Size
PVB n x 0.38mm Gradient,Clear,Milky White, Bronze,Grey, Green,Blue, Red,Yellow,etc. Transparency,                Cold Resistance,         Shock Resistance,           UV radiation Resistance Clear, Ultra Clear Float 2-25mm 2 and multi-layers /  4-100mm Flat and Curved
EVA 0.40 or 0.80mm Multicolor Wired, Silk Pattern Water Resistence Tinted, Soft / Hard Coated Glass 3-12mm 2 layers / 4-50mm Customized Size Acceptable
SGP 0.89,1.52,3.04mm Extra Clear Glass Edge Stability,     Weather Ability YID<1.5,  Bear Capacity>2 of PVB, Bend Deflection=¼ of PVB    Tempered 3-25mm 2 or 3 layers / 4-50mm Panel Size based on avaialbe single glass:  1220x1830,1500x2000, 1650/1830/2000x2200, 1650/1830/2000x2440,                2140/2250/2440x 3050,         2140/2250/2440x3210, 2140/2250/2440x3300, 2140/2250/2440x3660, 3000/3300x4000-15000,
XIR 0.76mm Extra Clear Heat Rejecting,                   XIR between 2 layers of PVB and Glass Lacquared, Silk Screen 2-25mm 2 layers / 4-50mm
PDLC 0.40mm Multicolor  Electronic Control Patterned Glass 4-6mm 2 layers / 8-12mm
Wet Grouting 0.20-0.80mm Clear None Silver Mirror 3-10mm 2 layers / 4-20mm

Packing: Paper or cork  pad interlayer between two glass panels and plywood crates with straps.


Crates type including  open crates, end cap, common frame as following:
