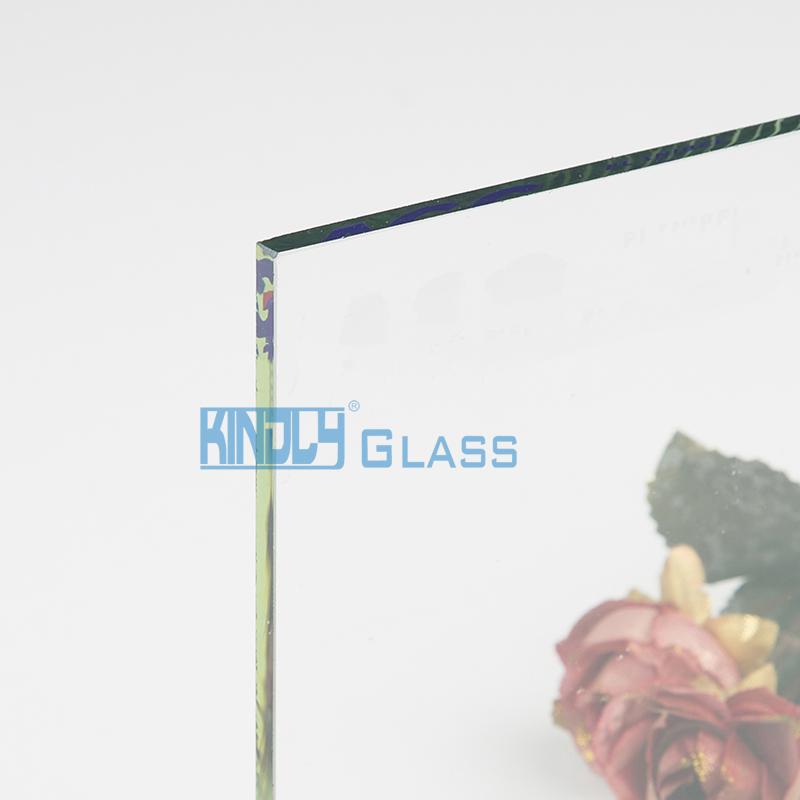

Energy Advantage Hard Coated LowE

Energy Advantage Hard Coated LowE Energy Advantage Hard Coated LowE Energy Advantage Hard Coated LowE Energy Advantage Hard Coated LowE
Type High Transparency
Thickness 3,4,5,5.5,6,8,10,12mm
Other Colors Clear
Standard Size 1650 x 2440, 1830 x 2440, 1650 x 2140, 2140 x 3300/3660, 2250 x 3300/3660, 2440 x 3300/3660, Customrized Dimensions.
Incoterms EXW,FOB,CFR,CIF,CIP,DDU,DDP.
Lead time About 20 days upon receipt of your deposit or confirmation.
MOQ 100 Sqm.
Package Paper or powder interlayer between two glass panels and plywood crates with straps.
Payment Terms T/T, L/C, D/P, Western Union,Paypal.
Place of origin CHINA


Type High Transparency
Thickness 3,4,5,5.5,6,8,10,12mm
Other Colors Clear
Standard Size 1650 x 2440, 1830 x 2440, 1650 x 2140, 2140 x 3300/3660, 2250 x 3300/3660, 2440 x 3300/3660, Customrized Dimensions.
Incoterms EXW,FOB,CFR,CIF,CIP,DDU,DDP.
Lead time About 20 days upon receipt of your deposit or confirmation.
MOQ 100 Sqm.
Package Paper or powder interlayer between two glass panels and plywood crates with straps.
Payment Terms T/T, L/C, D/P, Western Union,Paypal.
Place of origin CHINA

Energy Advantage

is a pyrolitically on-line coated low-emissivity glass. It offers substantial improvement on thermal insulation when compared to clear float glass.  It is also characterized by high solar heat gain, which means that as well as retaining heating warmth in a room, it allows high level of solar energy to enter, for warmer and brighter interiors, and reduced heating and lighting costs.

Applications

Extremely versatile, it is recommended for new construction and renovations of commercial buildings and residences where high solar heat gain is beneficial.

  • Residential buildings requiring thermal insulation
  • Low and mid-rise housing
  • Low-E 4th Surface Technology to meet energy code requirements and achieve R5 insulating performance

Benefits

Energy Advantage offers following benefits:

  • Improved energy efficiency compared to clear float glass,

  • High solar heat gain decreasing further the need for heating and lighting,

  • Highly durable coated glass easy to handle and proces,

  • Can be laminated, toughened, bent and enamelled using standard techniques,

  • Can be used in monolithic form or incorporated into Insulating Glass Units,
  • Available in a wide range of sizes and thicknesses.
Energy Advantage Hard Coated LowE Glass Parameter
Monolithic Thinckness mm Visible Light Solar Energy Winter       U Value Summer   U Value SHGC SC
Transmittance Reflectance Transmittance Reflectance Tuv
Outside Inside
Energy Advantage 3 82 11 12 69 11 57 3.7 2.8 0.72 0.83
4 82 10 11 68 10 55 3.7 2.8 0.71 0.82
5 83 11 12 68 10 53 3.7 2.8 0.71 0.82
6 82 10 11 66 10 49 3.6 2.8 0.7 0.81
8 81 10 11 62 9 45 3.6 2.8 0.67 0.77
Packing: Paper or powder interlayer between two glass panels and plywood crates or wooden crates with straps.

Crates type including  open crates, end cap, common frame as following:
