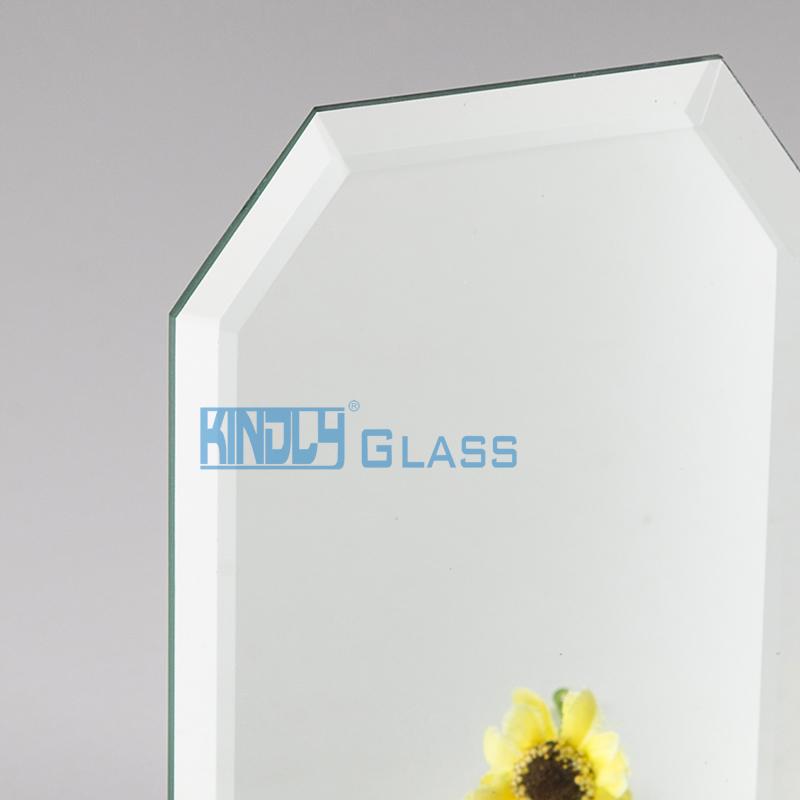

Octagonal Beveled Edge Mirror

Octagonal Beveled Edge Mirror Octagonal Beveled Edge Mirror Octagonal Beveled Edge Mirror Octagonal Beveled Edge Mirror
Thickness 3,4,5,5.5,6,8,10,12mm
Other Colors French Green (Light Green),Dark Green(Natural Green);

Ford Blue, Dark Blue (Diamond Blue); Ocean Blue,

Kunshan Blue, Crystal Blue;

Euro Bronze(Grey Bronze), Golden Bronze, Pink,

Blue Grey,Dark Grey, Crystal Grey, Black; Crystal Yellow.
Standard Size 1650 x 2440, 1830 x 2440, 1650 x 2140, 2140 x 3300/3660,

2250 x 3300/3660, 2440 x 3300/3660
Incoterms EXW,FOB,CFR,CIF,CIP,DDU,DDP.
Lead time About 20 days upon receipt of your deposit or confirmation.
MOQ 100 Sqm.
Package Paper or powder interlayer between two glass panels and plywood crates with straps.
Payment Terms T/T, L/C, D/P, Western Union,Paypal.
Place of origin CHINA


Thickness 3,4,5,5.5,6,8,10,12mm
Other Colors French Green (Light Green),Dark Green(Natural Green);

Ford Blue, Dark Blue (Diamond Blue); Ocean Blue,

Kunshan Blue, Crystal Blue;

Euro Bronze(Grey Bronze), Golden Bronze, Pink,

Blue Grey,Dark Grey, Crystal Grey, Black; Crystal Yellow.
Standard Size 1650 x 2440, 1830 x 2440, 1650 x 2140, 2140 x 3300/3660,

2250 x 3300/3660, 2440 x 3300/3660
Incoterms EXW,FOB,CFR,CIF,CIP,DDU,DDP.
Lead time About 20 days upon receipt of your deposit or confirmation.
MOQ 100 Sqm.
Package Paper or powder interlayer between two glass panels and plywood crates with straps.
Payment Terms T/T, L/C, D/P, Western Union,Paypal.
Place of origin CHINA

Silver mirror:

High quality float glass or polished glass substrate is coated with a layer of reflective silver.A layer of copper,

Which is in turn protected by a painted backing, usually protects this deposit. The silver give the mirror its reflective

Properties.



Thickness:



2,3,4,5,6,8mm

Tolerance:2-6:+/-0.2mm,8:+/-0.3mm



Size as below:

Thickness(mm) Silver Mirror Panel Size(mm) Max Loading Weight/CNT
2 1220*1830 1500x2000  1650x2200 1830x2440 27 Tons
3 1220*1830 1500x2000  1650x2200 1830x2440
  2134/2140x3300/3660 2440x3300/3660
27 Tons
4 1220*1830 1500x2000  1650x2200 1830x2440
  2134/2140x3300/3660 2440x3300/3660
27 Tons
5 1220*1830 1500x2000  1650x2200 1830x2440
  2134/2140x3300/3660 2440x3300/3660
27 Tons
6 1220*1830 1500x2000  1650x2200 1830x2440
  2134/2140x3300/3660 2440x3300/3660
27 Tons
8 1220*1830 1500x2000  1650x2200 1830x2440
  2134/2140x3300/3660 2440x3300/3660
27 Tons


To ensure the mirror quality through the following tech parameter:

Silver Mirror Parameter
Thickness Ref. Ratio % Thickness
Silver Layer Copper Layer Double Paint
3mm 93.94 ≥750mg/ ≥200mg/ 45-60μm
4mm 91.83
5mm 91.17
6mm 90.14
Copper Free Silver Mirror Parameter
Thickness Ref. Ratio % Thickness
Silver Layer Double Paint Lead Content
3mm 94.27 ≥900mg/ 45-60μm 0-5PPM
4mm 92.04
5mm 91.35
6mm 90.33


Packing: Paper or powder interlayer between two glass panels and plywood crates or wooden crates with straps.

                Crates type include open crates, end cap, common frame.



Related Products

Kindly processed glasses Products are fully accredited to enable you to buy with confidence. Our accreditation include:

ISO9001    |    China GB    |    EN(European Norm)    |    ANSI(American National Standards Institute)    |    AS/NZS

Kindly Glass & Mirror is a professional supplier of glass panels and good manufacturer of processed glass panels.
