SC60 Hard Coated LowE Glass

SC60 Hard Coated LowE Glass SC60 Hard Coated LowE Glass SC60 Hard Coated LowE Glass SC60 Hard Coated LowE Glass
Type High Solar Shading
Thickness 3,4,5,5.5,6,8,10,12mm
Other Colors Cool Grey
Standard Size 1650 x 2440, 1830 x 2440, 1650 x 2140, 2140 x 3300/3660, 2250 x 3300/3660, 2440 x 3300/3660
Incoterms EXW,FOB,CFR,CIF,CIP,DDU,DDP.
Lead time About 20 days upon receipt of your deposit or confirmation.
MOQ 100 Sqm.
Package Paper or powder interlayer between two glass panels and plywood crates with straps.
Payment Terms T/T, L/C, D/P, Western Union,Paypal.
Place of origin CHINA


Type High Solar Shading
Thickness 3,4,5,5.5,6,8,10,12mm
Other Colors Cool Grey
Standard Size 1650 x 2440, 1830 x 2440, 1650 x 2140, 2140 x 3300/3660, 2250 x 3300/3660, 2440 x 3300/3660
Incoterms EXW,FOB,CFR,CIF,CIP,DDU,DDP.
Lead time About 20 days upon receipt of your deposit or confirmation.
MOQ 100 Sqm.
Package Paper or powder interlayer between two glass panels and plywood crates with straps.
Payment Terms T/T, L/C, D/P, Western Union,Paypal.
Place of origin CHINA

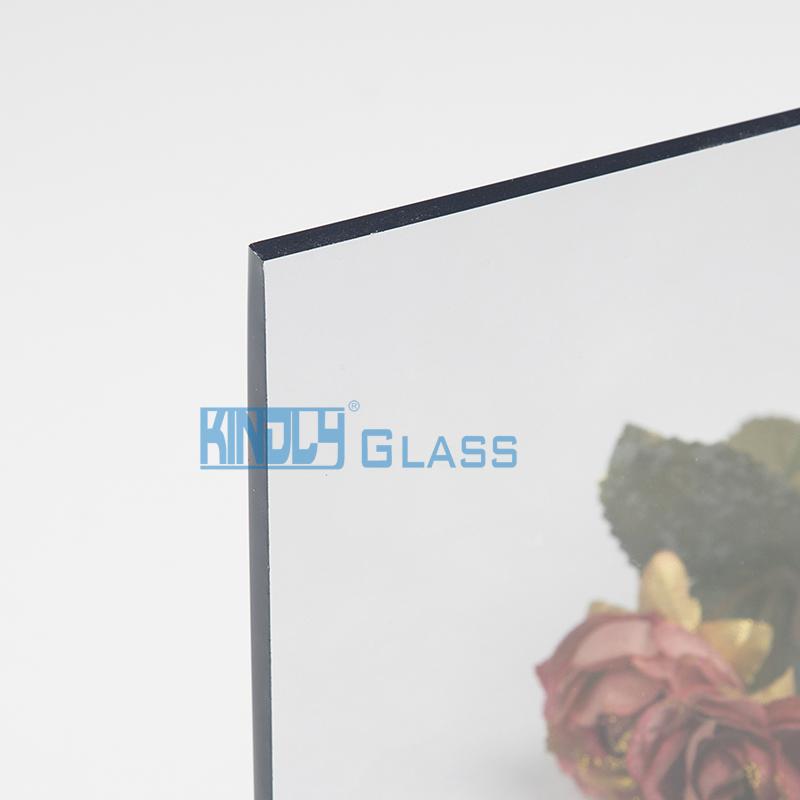

Suncool 60 Glass (Sc60)

Suncool 60 (sc60) shading pyrolytically online coated low-e glass is developed by syp group on the basis of applying the cvd coating technology from pilkington. sc60 is typically well-designed shading online low-e coating product to meet the requirements of energy saving of chinese architectural market. as the ideal choice for curtain wall and window glass, sc60’s elegant neutral color and excellent shading function can save the load of hvac and make the hot summer sunlight becomes soft.

Features

Several layers of durable coating can stick with the surface of float glass by unique cvd coating technology. with the unique coating, sc60 can reflect over 80% far ir, and also absorb some near ir. sc60’s good spectral selec- tivity can achieve the best balance between light and heat control. 1.popular elegant neutral grey color appearance. 2.stable performance and color appearance. 3.stable pyrolytic coating materials; can be used in mono- lithic form and stored for long time. 4.easily handled, cut, edged, tempered, heat-strengthened, bent and enameled  like clear float glass. moderate visible light transmittance, uniform colors and lower external reflectivity provide excellent decorative shading performance.

SC 60 Hard Coated LowE Glass Parameter
Monolithic Thinckness mm Visible Light Solar Energy U Value W/·k SHGC SC
Transmittance Reflectance Transmittance Reflectance Tran of    uv Winter U Value Summer U Value Euro EN673
Outside Inside
SC 60  6 61 9 14 56 11 44 3.85 3.03 3.8 0.62 0.72

6 Clear

+ 0.76PVB +

6 SC60 4#

12.76 59 9 13 47 8 1 3.7 2.94 3.7 0.56 0.65

6 SC60 2#

 + 6Air +

 6 Clear

 + 6Air +

6 Clear

30 50 15 24 38 15 26 1.89 1.99 2 0.49 0.56

6 SC60 2#

+ 9Air +

6 Clear

+ 9Air +

6 Clear

30 50 15 24 38 15 26 1.58 1.7 1.7 0.49 0.56

6 SC60 2#

 + 9Air +

 6 Clear

21 55 12 19 45 13 33 2.17 2.26 2.3 0.55 0.63

6 SC60 2#

 + 12Air +

 6 Clear

24 55 12 19 45 13 33 1.98 2.02 2 0.54 0.75

6 SC60 2#

 + 9Argon +

 6 Clear

21 55 12 19 45 13 33 1.87 1.98 2 0.55 0.63

6 SC60 2#

 + 12Argon +

6 Clear

24 55 12 19 45 13 33 1.75 1.79 1.7 0.54 0.75
All performance values are center-of-glass values calculated using the LBNL Window 6.3 program for your reference only.
Packing: Paper or powder interlayer between two glass panels and plywood crates or wooden crates with straps.

Crates type including  open crates, end cap, common frame as following:
