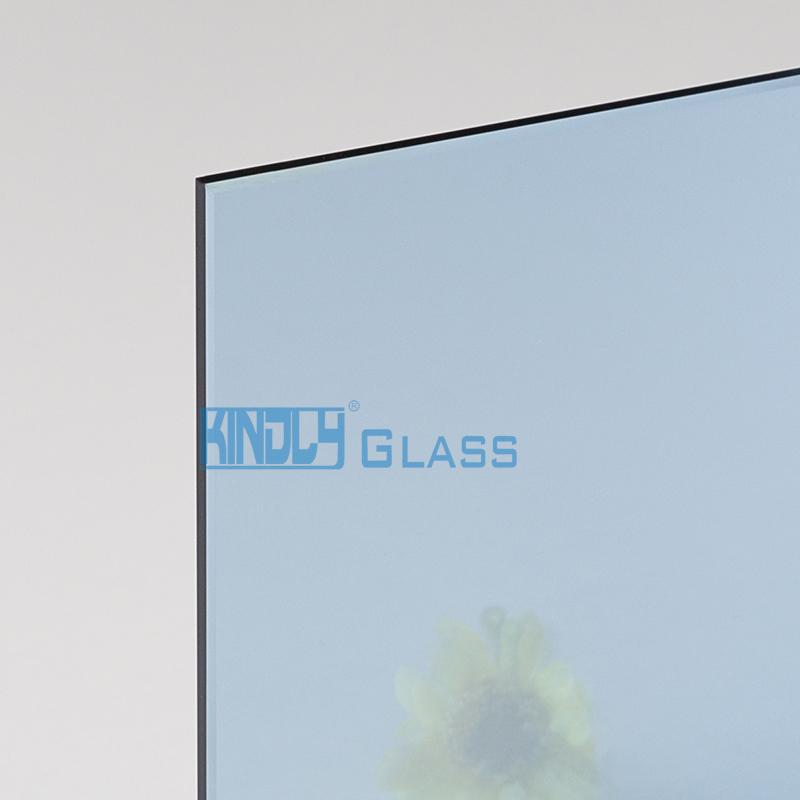

SGG Cool Lite SKN 154II Soft Coated LowE Glass

SGG Cool Lite SKN 154II Soft Coated LowE Glass SGG Cool Lite SKN 154II Soft Coated LowE Glass SGG Cool Lite SKN 154II Soft Coated LowE Glass SGG Cool Lite SKN 154II Soft Coated LowE Glass
Type Double Silver LowE Glass
Thickness 5,6,8,10,12mm
Other Colors Blue
Standard Size 1650 x 2440, 1830 x 2440, 1650 x 2140, 2140 x 3300/3660, 2250 x 3300/3660, 2440 x 3300/3660
Jumbo Size 4200 x 2440mm, 4500 x 2440mm,
9300 x 3210mm
Incoterms EXW,FOB,CFR,CIF,CIP,DDU,DDP.
Lead time About 20 days upon receipt of your deposit or confirmation.
MOQ 100 Sqm.
Package Paper or powder interlayer between two glass panels and plywood crates with straps.
Payment Terms T/T, L/C, D/P, Western Union,Paypal.
Place of origin CHINA


Type Double Silver LowE Glass
Thickness 5,6,8,10,12mm
Other Colors Blue
Standard Size 1650 x 2440, 1830 x 2440, 1650 x 2140, 2140 x 3300/3660, 2250 x 3300/3660, 2440 x 3300/3660
Jumbo Size 4200 x 2440mm, 4500 x 2440mm,
9300 x 3210mm
Incoterms EXW,FOB,CFR,CIF,CIP,DDU,DDP.
Lead time About 20 days upon receipt of your deposit or confirmation.
MOQ 100 Sqm.
Package Paper or powder interlayer between two glass panels and plywood crates with straps.
Payment Terms T/T, L/C, D/P, Western Union,Paypal.
Place of origin CHINA

DESCRIPTION

SGG COOL-LITE SKN 154 II , the high performance curved temperable double silver coating, is a solar control glass, which blocks up to 73% of solar heat by reflecting it to the outside. It can be for use in residential or commercial buildings alike, either for façades or overhead glazing.

It has good levels of light transmittance, coupled with a low solar factor making it ideal for commercial projects which require high levels of solar heat rejection.

PRODUCT APPLICATION

  • Offices and commercial buildings
  • Industrial buildings
  • Hotels and restaurants
  • Schools and Hospitals

ADVANTAGE

  • More environmentally-friendly cooling solution with less need for costly air-conditioning or blinds.
  • Gently filters light to reduce uncomfortable glare from direct sun rays, whilst still allowing in plenty of natural light.
  • Excellent thermal insulation to reduce the need for internal heating during colder months.
SGG Cool Lite Double silver LowE Glass Parameter
Monolithic Thick           mm Visible Light Solar Energy SC U Value W/㎡·k
Trans. Ref. Trans. Outer Ref. Inner   Ref. Tran of    uv EN410 ISO Air Argon
Outer Inner
6 Clear + 12A + 6 SKN 154II 24 49.80 17.60 19.70 23.60 32.50 34.60 8.60 0.32 0.30 1.61 1.28
6 Clear + 16A + 6 SKN 154II 28 49.80 17.60 19.70 23.60 32.50 34.60 8.60 0.32 0.30 1.36 1.12
8 Clear + 12A + 8 SKN 154II 28 48.70 17.30 19.30 22.60 29.10 31.00 7.60 0.32 0.30 1.60 1.27
6 Clear + 12A + 6 SKN 163II 24 58.10 15.00 16.40 30.40 27.80 31.70 23.50 0.40 0.38 1.58 1.24
6 Clear + 16A + 6 SKN 163II 28 58.10 15.00 16.40 30.40 27.80 31.70 23.50 0.40 0.37 1.32 1.08
8 Clear + 12A + 8 SKN 163II 28 56.80 14.70 16.10 29.10 25.00 28.40 20.70 0.40 0.37 1.57 1.23
6 Clear + 12A + 6 SKN 165II 24 59.40 15.30 16.80 29.50 30.80 32.40 9.20 0.39 0.37 1.61 1.28
6 Clear + 16A + 6 SKN 165II 28 59.40 15.30 16.80 29.50 30.80 32.40 9.20 0.39 0.36 1.36 1.12
8 Clear + 12A + 8 SKN 165II 28 58.10 15.10 16.40 28.20 27.50 29.00 8.20 0.38 0.36 1.60 1.27
6 Clear + 12A + 6 SKN 174II 24 67.20 10.00 12.30 36.30 28.00 28.00 21.00 0.47 0.44 1.64 1.30
6 Clear + 16A + 6 SKN 174II 28 67.20 10.00 12.30 36.30 28.00 28.00 21.00 0.47 0.44 1.40 1.16
8 Clear + 12A + 8 SKN 174II 28 65.70 9.80 12.10 34.50 24.00 24.50 18.70 0.46 0.43 1.63 1.30
All performance values are center-of-glass values calculated using the LBNL Window 6.3 program for your reference only.
Packing: Paper or powder interlayer between two glass panels and plywood crates or wooden crates with straps.

Crates type including  open crates, end cap, common frame as following:
