Single Layer Fireproof Glass

Single Layer Fireproof Glass Single Layer Fireproof Glass Single Layer Fireproof Glass Single Layer Fireproof Glass
Type Single Layer Fireproof Glass
Thickness 6,8,10,12,15,19mm
Standard Size 1200*1800mm 1200*600mm 1200*900mm
Incoterms EXW,FOB,CFR,CIF,CIP,DDU,DDP.
Lead time About 20 days upon receipt of your deposit or confirmation.
MOQ 100 Sqm.
Package Paper or powder interlayer between two glass panels and plywood crates with straps.
Payment Terms T/T, L/C, D/P, Western Union,Paypal.
Place of origin CHINA


Type Single Layer Fireproof Glass
Thickness 6,8,10,12,15,19mm
Standard Size 1200*1800mm 1200*600mm 1200*900mm
Incoterms EXW,FOB,CFR,CIF,CIP,DDU,DDP.
Lead time About 20 days upon receipt of your deposit or confirmation.
MOQ 100 Sqm.
Package Paper or powder interlayer between two glass panels and plywood crates with straps.
Payment Terms T/T, L/C, D/P, Western Union,Paypal.
Place of origin CHINA

Hi-Strength Single Layer Fireproof Glass is a kind of fireproof glass that can be used in curtain wall, window&doors. It's produced by Chemical and physical treatment on float  glass.

Main Characteristics:

1.Fire resistance .

Hi-strenghth single fireproof glass can resist the fire under the high temperature of 1000 C, in 96-183 minutes the glass doesn’t fall into pieces, it can keep intact, and it can also prevent dispersion of flame, toxic gas and harmful gas. So abtain time to escape. It improved teh Glass curtain wall's safty by conquer the weaknees of the ordinary glass curtain wall.

2.Higher strength:
Hi-strenghth single fireproof glass is not only fire-proof, but also is higher strength.
the strength is 6-12 times higher of ordinary glass and 1.5-3 times higher of tempered glass. So it can be designed and used by large surface, by which higher transparent but lower the cost.

3.Processable
Combined with other glass, may process into fireproof hollow glass, coating film fireproof
glass, sandwich fireproof glass and energy-saving fireproof glass etc. It can satisfy any kind of different design requirements.

4. Excellent characteristic of bears with climate:
 Excellent characteristic of bears with climate, resistance against heat, cold, sun
shining, water dampness, sunlight and permanent nondiscoloring. keep transportation under any kinds of climate.

5. Meet requirment of State regualtions:
Usually the Curtain wall glass is not fireproof, so the not-fireproof glassis the weakness
of the building system. To prevent fire coming into buiding by curtain wall and threaten the safty of life and welthy, the new regulation of "firepoof of residential  high building design regulation" and "Glass curtain wall engineer-tech regulation" states clearly that outside construction part of residential high building must be fireproof. Our company developed light, thin, high strength and Excellent characteristic of bears with climate. Single Layer (cesium potassium) Fireproof Glass after many years' research. It meets new regulation of State, soloves the problem that the ordinary curtain wall glass is not fireproof and get the market&customers. This production has been used in many citys' signal buildings.

Type Fire Resistant(min) Thinckness(mm) Fireproof-Grade VT (%) Weight kg/sqm Size Tolerance
Integrity Insulation
C-6 90 No 6 C-I 89 15

<1m±1mm
<2m±2mm
<3m±3mm

C-8 90 No 8 C-I 85 20
C-10 120 No 10 C-I 81 25
C-12 120 No 12 C-I 78 30
C-15 90 No 15 C-I 76 37.5
C-19 90 No 19 C-I 72 47.5

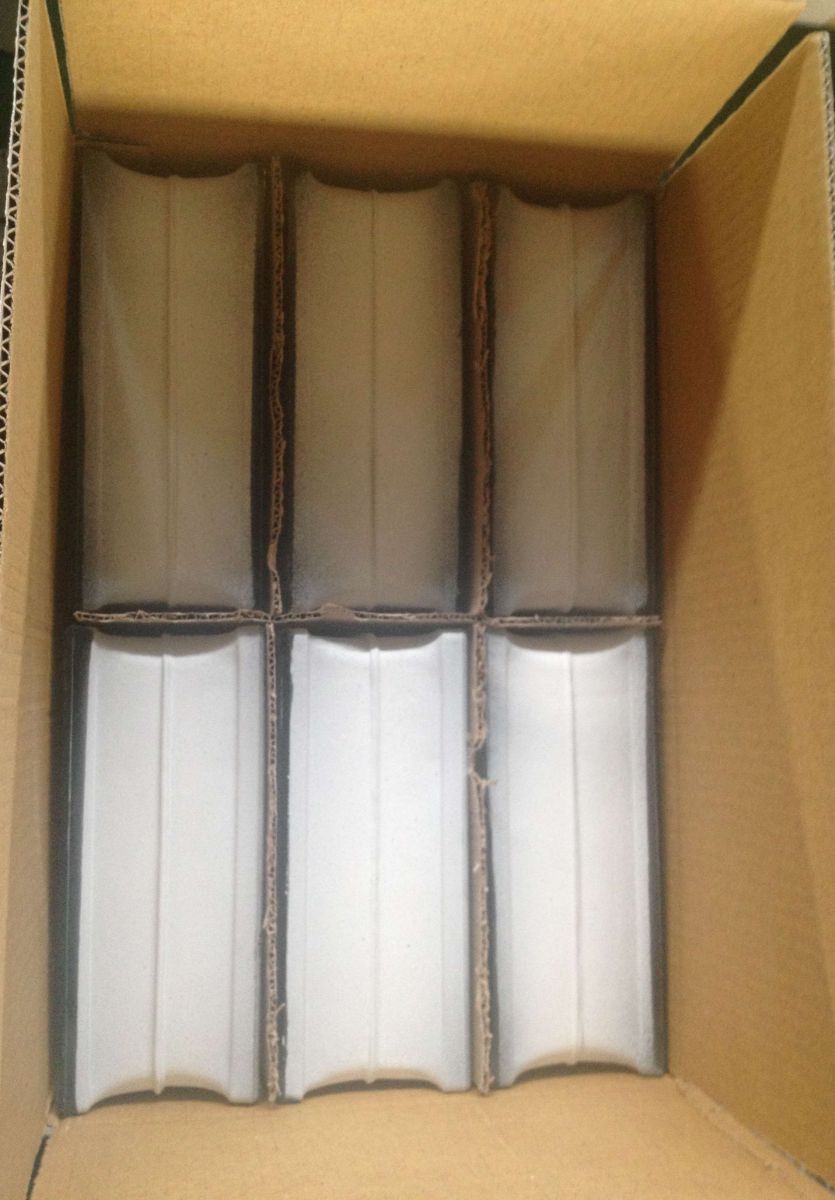

Packing: Paper or powder interlayer between two glass panels and plywood crates or wooden crates with straps.

Crates type including  open crates, end cap, common frame as following:
