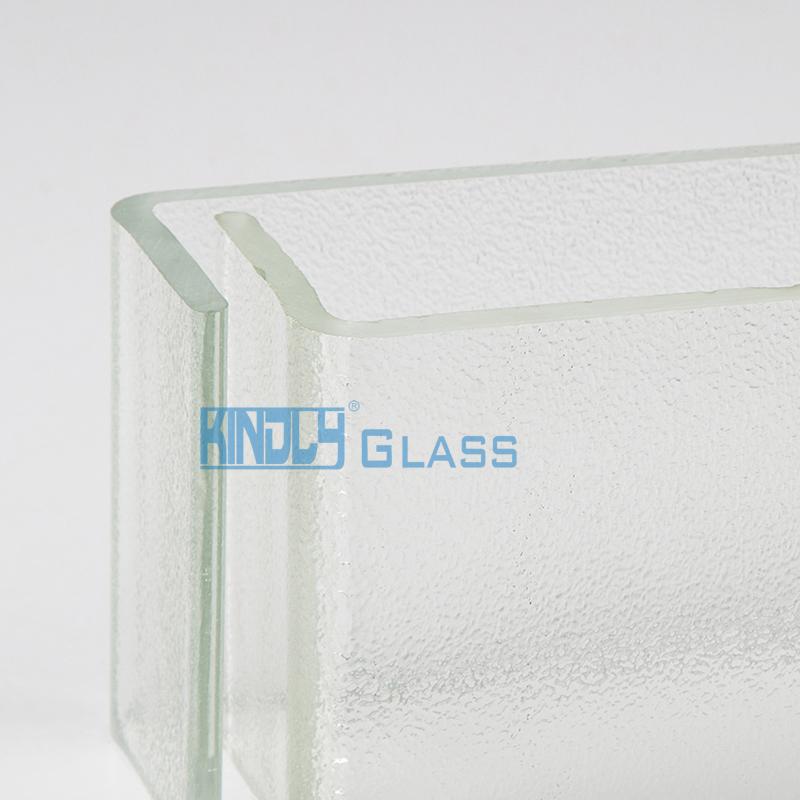

U Channel Tempered Glass

U Channel Tempered Glass U Channel Tempered Glass U Channel Tempered Glass U Channel Tempered Glass
Type Profile Glass
Thickness 6mm 7mm
Standard Size W 232mm * H 41mm * L 7000mm W 262mm * H 41mm * L 7000mm

W 331mm * H 41mm * L 7000mm W 498mm * H 41mm * L 7000mm

W 232mm * H 60mm * L 7000mm W 262mm * H 60mm * L 7000mm

W 331mm * H 60mm * L 7000mm
Incoterms EXW,FOB,CFR,CIF,CIP,DDU,DDP.
Lead time About 20 days upon receipt of your deposit or confirmation.
MOQ 100 Sqm.
Package Paper or powder interlayer between two glass panels and plywood crates with straps.
Payment Terms T/T, L/C, D/P, Western Union,Paypal.
Place of origin CHINA


Type Profile Glass
Thickness 6mm 7mm
Standard Size W 232mm * H 41mm * L 7000mm W 262mm * H 41mm * L 7000mm

W 331mm * H 41mm * L 7000mm W 498mm * H 41mm * L 7000mm

W 232mm * H 60mm * L 7000mm W 262mm * H 60mm * L 7000mm

W 331mm * H 60mm * L 7000mm
Incoterms EXW,FOB,CFR,CIF,CIP,DDU,DDP.
Lead time About 20 days upon receipt of your deposit or confirmation.
MOQ 100 Sqm.
Package Paper or powder interlayer between two glass panels and plywood crates with straps.
Payment Terms T/T, L/C, D/P, Western Union,Paypal.
Place of origin CHINA

 The Introduction on U-profile Glass

U-profile glass originates from Austria. It also be produced over 35 years in Germany .As one of the typical materials which are used on large-scale building projects U-profile glass is applied extensively in Europe and America. The application for U-profile glass in China is dated from 1990s.And now many areas in China use it for its international-based design trend.

 U-profile glass is one kind of casting glasses .It’s progress of forming in the computer-control smelting furnace enables it to keep excellent quality and precision. Its high mechanical strength enables it to be fixed on high-rise buildings and other buildings which need good lighting. And this can saves the buildings from extra vertical and horizontal underpinning. U-profile glass featured by its good lighting, heat insulation and preservation, sound insulation and noise protection----it’s one of the new type environment-friendly and economical glasses.

Glass Surface Textures & low iron

pear-grain

pear-grain - a hammered pearl or orange peel texture provides moderate translucency; features excellent light scattering properties

Ice

Ice - an organic, heavily obscuring texture. Excellent for single glazed applications creating privacy or hiding views.

Clear

Clarissimo™ - without pattern, offers a high level of transparency for a rolled glass. Please note, the optical qualities of rolled glass are fundamentally incomparable with the surface and transparency of float glass as the production methods are vastly different.

Low Iron

This glass is a special production made with raw materials containing a low iron composition. The resultant glass is almost colorless, displaying a slight greenish cast, and is favored by many architects. A Lamberts exclusive.

For large projects, Lamberts will be pleased to discuss custom textures and sizes.

Qingdao Kangdeli Industrial and Trading CO., ltd
U glass technology specification:
U glass Series K40Series K60Series
U Channel Glass P23/41/6 P26/41/6 P33/41/6 P50/41/6 P23/60/7 P26/60/7 P33/60/7
Face Width (mm) 232mm 262mm 331mm 498mm 232mm 262mm 331mm
Face Width (w) inches 9-1/8" 10-5/16" 13-1/32" 19-5/8" 9-1/8" 10-5/16" 13-1/32"
Flange heigh( mm) 41mm 41mm 41mm 41mm 60mm 60mm 60mm
Flange height (h) inches 1-5/8" 1-5/8" 1-5/8" 1-5/8" 2-3/8" 2-3/8" 2-3/8"
Glass thickness(t) mm 6mm 6mm 6mm 6mm 7mm 7mm 7mm
Glass thicknessapp. inches .24" .24" .24" .24" .28" .28" .28"
Maximum Length(L)mm 7000 mm 7000 mm 7000 mm 7000 mm 7000 mm 7000 mm 7000 mm
Maximum Length(L) inches 276" 276" 276" 276" 276" 276" 276"
Weight (single layer) KG/sqm 19.43 18.94 18.16 16.94 25.43 24.5 23.43
Weight (single layer) lbs/sq ft. 3.98 3.88 3.72 3.47 5.21 5.02 4.8

Packing

Paper or powder interlayer between two glass panels and plywood crates or wooden crates with straps. crates type include open crates, end cap, common frame.
