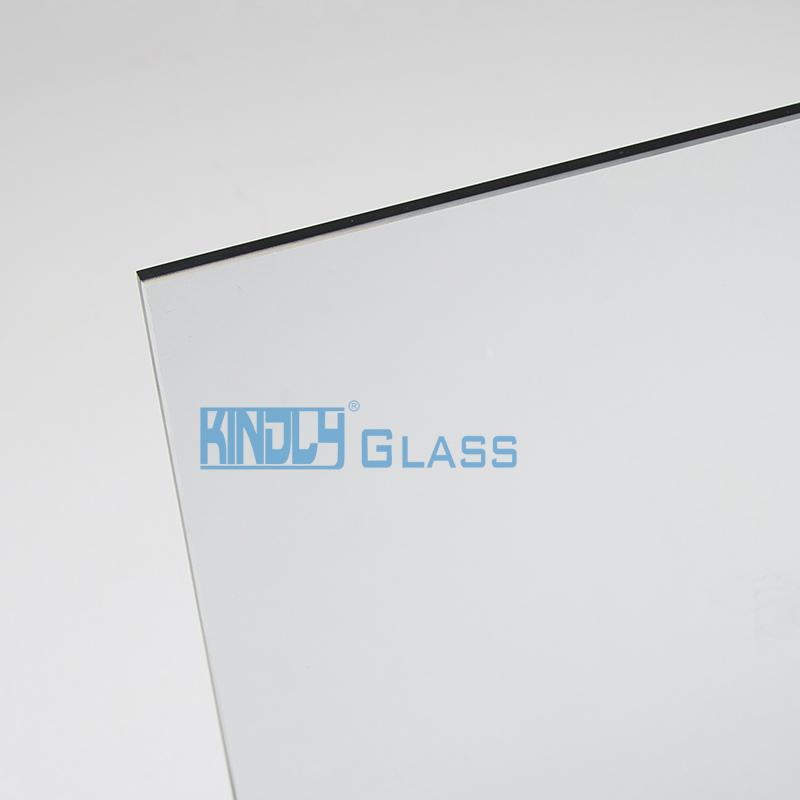

Ultra Clear Hard Coated LowE Glass

Ultra Clear Hard Coated LowE Glass Ultra Clear Hard Coated LowE Glass Ultra Clear Hard Coated LowE Glass Ultra Clear Hard Coated LowE Glass
Type High Transparency
Thickness 4,5,6,8mm
Other Colors Ultra Clear.
Standard Size 1650 x 2440, 1830 x 2440, 1650 x 2140, 2140 x 3300/3660, 2250 x 3300/3660, 2440 x 3300/3660
Incoterms EXW,FOB,CFR,CIF,CIP,DDU,DDP.
Lead time About 20 days upon receipt of your deposit or confirmation.
MOQ 100 Sqm.
Package Paper or powder interlayer between two glass panels and plywood crates with straps.
Payment Terms T/T, L/C, D/P, Western Union,Paypal.
Place of origin CHINA


Type High Transparency
Thickness 4,5,6,8mm
Other Colors Ultra Clear.
Standard Size 1650 x 2440, 1830 x 2440, 1650 x 2140, 2140 x 3300/3660, 2250 x 3300/3660, 2440 x 3300/3660
Incoterms EXW,FOB,CFR,CIF,CIP,DDU,DDP.
Lead time About 20 days upon receipt of your deposit or confirmation.
MOQ 100 Sqm.
Package Paper or powder interlayer between two glass panels and plywood crates with straps.
Payment Terms T/T, L/C, D/P, Western Union,Paypal.
Place of origin CHINA

Ultra Clear Hard Coated LowE Glass

is a pyrolytic, low Emissivity glass. The Low-E coating is applied on a substrate of ultra clear float glass by a pyrolytic process called online CVD (Chemical Vapor Deposition) method.

In winter, the aim of the coating is to reflect the heat back to inside of the building to prevent heat loss and keep the indoor climate at an even temperature.

In summer, the coating will reduce the amount of re-radiated heat into the building thereby keeping indoor cooler. Total heat gain is reduced.

Products Features

  • Online hard coating
  • Stable, virtually unlimited shelf life, long life performance
  • Transparent and neutral color appearance, low light reflection
  • High light transmission and desirable solar gain
  • High durability, easy handling & easy processing (Cutting, laminating,tempering, bending, screen-printing)
  • Can be used as single glazing (surface position#2)
  • No edge deletion and no special handling for IGU

Product Applications

Ultra clear LowE has multiple applications in residential and commercial buildings, and also domestic electric appliances like ovens and refrigerator doors thanks to its neutral appearance and high light transmission. The metal oxide coating contributes to the thermal insulating properties of windows & doors, and it reduces the indoors energy consumption.

Combination with reflective / tinted glass glazed on the external pane (IGU), it provides excellent solar shading.



You will find the difference from our specification.

Comparison of Clear & Ultra Clear Hard Coated LowE Glass
Monolithic Thinckness  mm Visible Light Solar Energy Winter  U Value Summer  U Value SHGC SC
Transmittance Reflectance Transmittance Reflectance
Outside Inside
Clear LowE 4 83 10 11 72 11 3.7 2.9 0.75 0.87
5 82.5 10 11 70 11 3.7 2.9 0.74 0.85
6 82.5 10 11 70 10 3.7 2.9 0.71 0.82
8 81.5 10 11 67 10 3.7 2.9 0.71 0.82
Ultra  Clear LowE 4 84 10.5 11.5 75 11.5 3.7 2.9 0.82 0.95
5 84 10.5 11.5 75 11.5 3.7 2.9 0.81 0.94
6 84 10.5 11.5 75 11.5 3.7 2.9 0.8 0.93
8 83 10.5 11.5 75 11.5 3.7 2.9 0.77 0.89
Comparison of the use of IGU in the different climate zones
Zones

          LowE            Type

IGU          Structure Visible Light Solar Energy U Value    W/·K SHGC SC
Trans. % Trans. %
Bitter Cold

High

Transparency

6 Clear + 12A + 6 Clear 80 67 2.7 0.74  0.85
6 Clear + 12A + 6 Clear LowE 75 57 1.9 0.70  0.80
6 Clear LowE + 12A + 6 Clear LowE 70 50 1.7 0.62  0.70
6 Ultra Clear + 12A + 6 Ultra Clear LowE 77 74 1.9 0.77  0.88
6 Ultra Clear LowE+ 12A + 6 Ultra Clear LowE 73 70 1.7 0.73  0.84

Hot Summer &

Cold Winter

Adjustable   Shading

6 Blue Grey Tinted + 12A + 6 Clear LowE 35 32 1.9 0.44  0.50
6 Euro Grey Tinted + 12A + 6 Clear LowE 35 30 1.9 0.42  0.49
6 Euro Bronze Tinted + 12A + 6 Clear LowE 32 33 1.9 0.44  0.51
6 Golden Bronze Tinted + 12A + 6 Clear LowE 32 28 1.9 0.40  0.46
Cold

High Solar

Shading

6 Blue Grey Ref. + 12A + 6 Clear  24 26 2.7 0.36  0.42
6 Blue Grey Ref. + 12A + 6 Clear LowE 23 23 1.9 0.32  0.37
Packing: Paper or powder interlayer between two glass panels and plywood crates or wooden crates with straps.

Crates type including  open crates, end cap, common frame as following:



Related Products

Kindly processed glasses Products are fully accredited to enable you to buy with confidence. Our accreditation include:

ISO9001    |    China GB    |    EN(European Norm)    |    ANSI(American National Standards Institute)    |    AS/NZS
