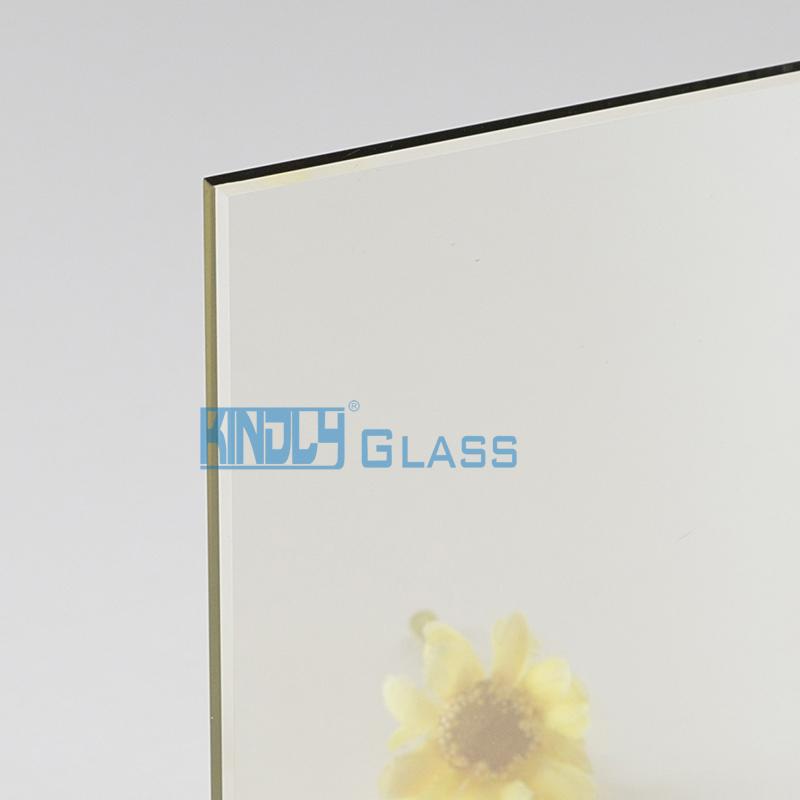

4-6mm Clear Hard Coated Glass

4-6mm Clear Hard Coated Glass 4-6mm Clear Hard Coated Glass 4-6mm Clear Hard Coated Glass 4-6mm Clear Hard Coated Glass
Type Hard Coated Glass
Thickness 3,3.2 4,5,5.5,6,8,10,12mm
Other Colors French Green (Light Green),Dark Green(Natural Green); Ford Blue, Dark Blue (Diamond Blue); Ocean Blue, Kunshan Blue, Crystal Blue; Euro Bronze(Grey Bronze), Golden Bronze, Pink; Blue Grey,Dark Grey, Crystal Grey,
Standard Size 1650 x 2440, 1830 x 2440, 1650 x 2140, 2140 x 3300/3660, 2250 x 3300/3660, 2440 x 3300/3660
Incoterms EXW,FOB,CFR,CIF,CIP,DDU,DDP.
Lead time About 10-15 days upon receipt of your deposit or confirmation.
MOQ 100 Sqm.
Package Paper or powder interlayer between two glass panels and plywood crates with straps.
Payment Terms T/T, L/C, D/P, Western Union,Paypal.
Place of origin CHINA


Type Hard Coated Glass
Thickness 3,3.2 4,5,5.5,6,8,10,12mm
Other Colors French Green (Light Green),Dark Green(Natural Green); Ford Blue, Dark Blue (Diamond Blue); Ocean Blue, Kunshan Blue, Crystal Blue; Euro Bronze(Grey Bronze), Golden Bronze, Pink; Blue Grey,Dark Grey, Crystal Grey,
Standard Size 1650 x 2440, 1830 x 2440, 1650 x 2140, 2140 x 3300/3660, 2250 x 3300/3660, 2440 x 3300/3660
Incoterms EXW,FOB,CFR,CIF,CIP,DDU,DDP.
Lead time About 10-15 days upon receipt of your deposit or confirmation.
MOQ 100 Sqm.
Package Paper or powder interlayer between two glass panels and plywood crates with straps.
Payment Terms T/T, L/C, D/P, Western Union,Paypal.
Place of origin CHINA

Reflective glass

is an ordinary float glass with a metallic coating to reduce solar heat. This special metallic coating also produces a mirror effect, preventing the subject from seeing through the glass. It is mainly used in facades.usually reflective glass has hard coated glass and soft coated glass

Hard coated glass (coated On-Line): in this process, semi-conducted metal oxides are directly applied to the glass during the float glass production while the glass is still hot in the annealing lehr. These are hard coatings which are relatively harmful to the environment.

Soft coated glass (coated off-line):in this process one or more coats of metal oxide are applied under a vacuum to finished glass. The coatings applied by this technique are soft and must be protected against external influences and are therefore used for the interior side of glass panes. There are some other techniques for the OFF-LINE coating:

 Immersion Process

 Chemical Process

  Foil

Screened Glazin

Following is the reflective standard size and thickness:

Thickness  (mm) Thickness Tolerance (mm) Reflective Glass Panel Size mm Max Loading Weight/CNT
3,  3.2 ±0.2 1650 x 2440, 1830 x 2440,  2000 x 2440, 2140 x 3050/3300/3660,  2250 x 3050/3300/3660, 2440 x 3050/3300/3660   27 Tons
4 ±0.2 1650 x 2440, 1830 x 2440,  2000 x 2440, 2140 x 3050/3300/3660,  2250 x 3050/3300/3660, 2440 x 3050/3300/3660   27 Tons
5,  5.5 ±0.2 1650 x 2440, 1830 x 2440,  2000 x 2440, 2140 x 3050/3300/3660,  2250 x 3050/3300/3660, 2440 x 3050/3300/3660   27 Tons
6 ±0.2 1650 x 2440, 1830 x 2440,  2000 x 2440, 2140 x 3050/3300/3660,  2250 x 3050/3300/3660, 2440 x 3050/3300/3660   27 Tons
8 ±0.3 1650 x 2440, 1830 x 2440,  2000 x 2440, 2140 x 3050/3300/3660,  2250 x 3050/3300/3660, 2440 x 3050/3300/3660   27 Tons
10 ±0.3 1650 x 2440, 1830 x 2440,  2000 x 2440, 2140 x 3050/3300/3660,  2250 x 3050/3300/3660, 2440 x 3050/3300/3660   27 Tons
12 ±0.3 1650 x 2440, 1830 x 2440,  2000 x 2440, 2140 x 3050/3300/3660,  2250 x 3050/3300/3660, 2440 x 3050/3300/3660   27 Tons

Following is the reflective glass parameter:

Name of glass Visible light Sunlight Shading coefficient (SC) Sum of transmittance of solar energy
Transmittance Reflection Direct transmittance Direct reflection
5mm Bronze reflective 27.00 50.00 33.00 35.00 0.47 41.00
6mm Bronze reflective 25.00 52.00 31.00 36.00 0.44 39.00
5mm F-Green reflective 31.12 34.8 25.49 19.61 0.45 39.65
6mm F-Green reflective 29.94 33.72 21.12 18.92 0.41 36.59
4mm Pink reflective 30.66 36.06 47.82 29.17 0.6 53.76
6mm Pink reflective 29.92 28.64 46.4 22.14 0.61 54.52
4mm Dark blue reflective 25.62 13.98 39.36 16.47 0.57 50.76
5mm Dark blue reflective 20.92 12.52 33.42 15 0.53 46.73
6mm Dark blue reflective 13.42 13.68 25.52 16.81 0.45 40.4
5mm Ford blue reflective 27.5 19.38 37.07 16.56 0.55 49.03
6mm Ford blue reflective 24.97 16.51 32.04 14.72 0.51 45.78
4mm Euro grey reflective 26.9 19.59 37.38 17.36 0.55 49.05
6mm Euro grey reflective 19.55 13.99 27.64 12.96 0.48 42.97
4mm Dark grey reflective 17.96 10.1 30.09 11.3 0.51 45.21
5mm Dark grey reflective 14.03 9.07 25.06 10.65 0.47 42.05
6mm Dark grey reflective 13.02 6.97 22.7 8.2 0.46 40.53
5mm silver reflective  50.58 34.1 58 25.85 0.7 61.89
6mm silver reflective 42.75 30.11 52.31 28.29 0.64 56.99
