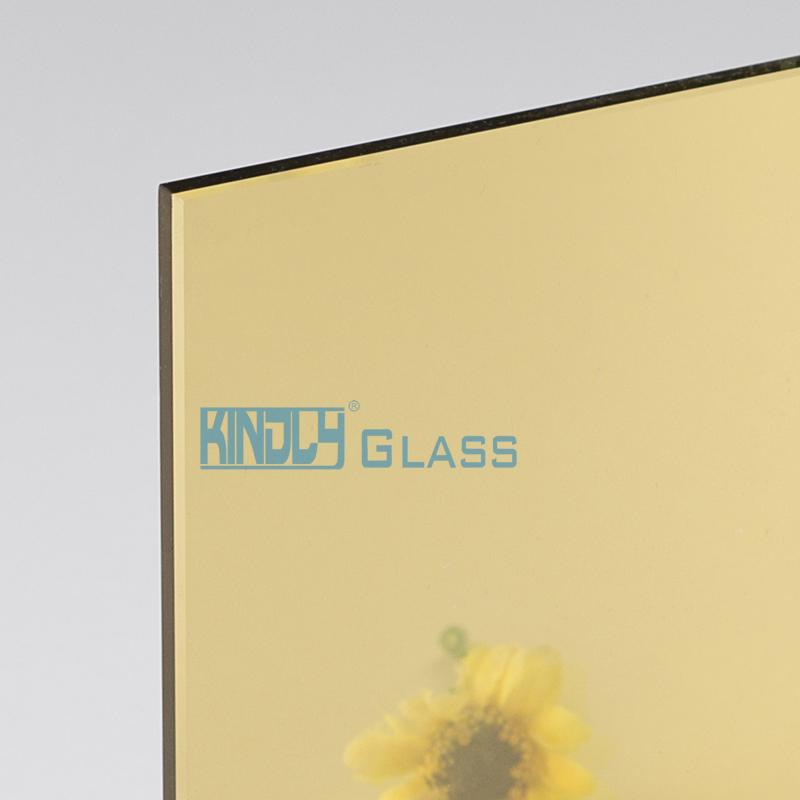

4-8mm Golden Soft Coated Glass

4-8mm Golden Soft Coated Glass 4-8mm Golden Soft Coated Glass 4-8mm Golden Soft Coated Glass 4-8mm Golden Soft Coated Glass
Type Soft Coated Glass
Thickness 3,3.2 4,5,5.5,6,8,10,12mm
Other Colors Ford Blue,Dark Blue (Diamond Blue),Ocean Blue,Kunshan Blue,Crystal Blue

French Green (Light Green),Dark Green(Natural Green)

Euro Bronze(Grey Bronze),Golden Bronze, Pink

Blue Grey,Dark Grey, Crystal Grey,Black

Crystal Yellow.
Standard Size 1650 x 2440, 1830 x 2440, 1650 x 2140, 2140 x 3300/3660,

2250 x 3300/3660, 2440 x 3300/3660
Incoterms EXW,FOB,CFR,CIF,CIP,DDU,DDP.
Lead time About 10-15 days upon receipt of your deposit or confirmation.
MOQ 100 Sqm.
Package Paper or powder interlayer between two glass panels and plywood crates with straps.
Payment Terms T/T, L/C, D/P, Western Union,Paypal.
Place of origin CHINA


Type Soft Coated Glass
Thickness 3,3.2 4,5,5.5,6,8,10,12mm
Other Colors Ford Blue,Dark Blue (Diamond Blue),Ocean Blue,Kunshan Blue,Crystal Blue

French Green (Light Green),Dark Green(Natural Green)

Euro Bronze(Grey Bronze),Golden Bronze, Pink

Blue Grey,Dark Grey, Crystal Grey,Black

Crystal Yellow.
Standard Size 1650 x 2440, 1830 x 2440, 1650 x 2140, 2140 x 3300/3660,

2250 x 3300/3660, 2440 x 3300/3660
Incoterms EXW,FOB,CFR,CIF,CIP,DDU,DDP.
Lead time About 10-15 days upon receipt of your deposit or confirmation.
MOQ 100 Sqm.
Package Paper or powder interlayer between two glass panels and plywood crates with straps.
Payment Terms T/T, L/C, D/P, Western Union,Paypal.
Place of origin CHINA

Reflective glass

is an ordinary float glass with a metallic coating to reduce solar heat. This special metallic coating also produces a mirror effect, preventing the subject from seeing through the glass. It is mainly used in facades.usually reflective glass has hard coated glass and soft coated glass

Soft coated glass (coated off-line):in this process one or more coats of metal oxide are applied under a vacuum to finished glass. The coatings applied by this technique are soft and must be protected against external influences and are therefore used for the interior side of glass panes. There are some other techniques for the OFF-LINE coating:

 Immersion Process

 Chemical Process

  Foil

Screened Glazin

Hard coated glass (coated On-Line): in this process, semi-conducted metal oxides are directly applied to the glass during the float glass production while the glass is still hot in the annealing lehr. These are hard coatings which are relatively harmful to the environment

Following is the reflective standard size and thickness:

Thickness  (mm) Thickness Tolerance (mm) Reflective Glass Panel Size mm Max Loading Weight/CNT
3,  3.2 ±0.2 1650 x 2440, 1830 x 2440,  2000 x 2440, 2140 x 3050/3300/3660,  2250 x 3050/3300/3660, 2440 x 3050/3300/3660   27 Tons
4 ±0.2 1650 x 2440, 1830 x 2440,  2000 x 2440, 2140 x 3050/3300/3660,  2250 x 3050/3300/3660, 2440 x 3050/3300/3660   27 Tons
5,  5.5 ±0.2 1650 x 2440, 1830 x 2440,  2000 x 2440, 2140 x 3050/3300/3660,  2250 x 3050/3300/3660, 2440 x 3050/3300/3660   27 Tons
6 ±0.2 1650 x 2440, 1830 x 2440,  2000 x 2440, 2140 x 3050/3300/3660,  2250 x 3050/3300/3660, 2440 x 3050/3300/3660   27 Tons
8 ±0.3 1650 x 2440, 1830 x 2440,  2000 x 2440, 2140 x 3050/3300/3660,  2250 x 3050/3300/3660, 2440 x 3050/3300/3660   27 Tons
10 ±0.3 1650 x 2440, 1830 x 2440,  2000 x 2440, 2140 x 3050/3300/3660,  2250 x 3050/3300/3660, 2440 x 3050/3300/3660   27 Tons
12 ±0.3 1650 x 2440, 1830 x 2440,  2000 x 2440, 2140 x 3050/3300/3660,  2250 x 3050/3300/3660, 2440 x 3050/3300/3660   27 Tons


Soft coated glass (coated off-line) VT can reach 10%
