| Type | Ultra Clear Glass |
| Thickness | 3,3.2, 4,5,6,8,10,12,15,19,22,25 mm |
| Standard Size | 1650 x 2440, 1830 x 2440, 1650 x 2140, 2140 x 3300/3660, 2250 x 3300/3660, 2440 x 3300/3660 |
| Jumbo Size | 3300x4000, 3300x5000, 3300x6000, 3300x7000, 3300x8000,3300x9000,3300x11000,3300x12000, 3300x130000,3300x14000,3300x15000 |
| Incoterms | EXW,FOB,CFR,CIF,CIP,DDU,DDP. |
| Lead time | About 10-15 days upon receipt of your deposit or confirmation. |
| MOQ | 100 Sqm. |
| Package | Paper or powder interlayer between two glass panels and plywood crates with straps. |
| Payment Terms | T/T, L/C, D/P, Western Union,Paypal. |
| Place of origin | CHINA |
| Type | Ultra Clear Glass |
| Thickness | 3,3.2, 4,5,6,8,10,12,15,19,22,25 mm |
| Standard Size | 1650 x 2440, 1830 x 2440, 1650 x 2140, 2140 x 3300/3660, 2250 x 3300/3660, 2440 x 3300/3660 |
| Jumbo Size | 3300x4000, 3300x5000, 3300x6000, 3300x7000, 3300x8000,3300x9000,3300x11000,3300x12000, 3300x130000,3300x14000,3300x15000 |
| Incoterms | EXW,FOB,CFR,CIF,CIP,DDU,DDP. |
| Lead time | About 10-15 days upon receipt of your deposit or confirmation. |
| MOQ | 100 Sqm. |
| Package | Paper or powder interlayer between two glass panels and plywood crates with straps. |
| Payment Terms | T/T, L/C, D/P, Western Union,Paypal. |
| Place of origin | CHINA |

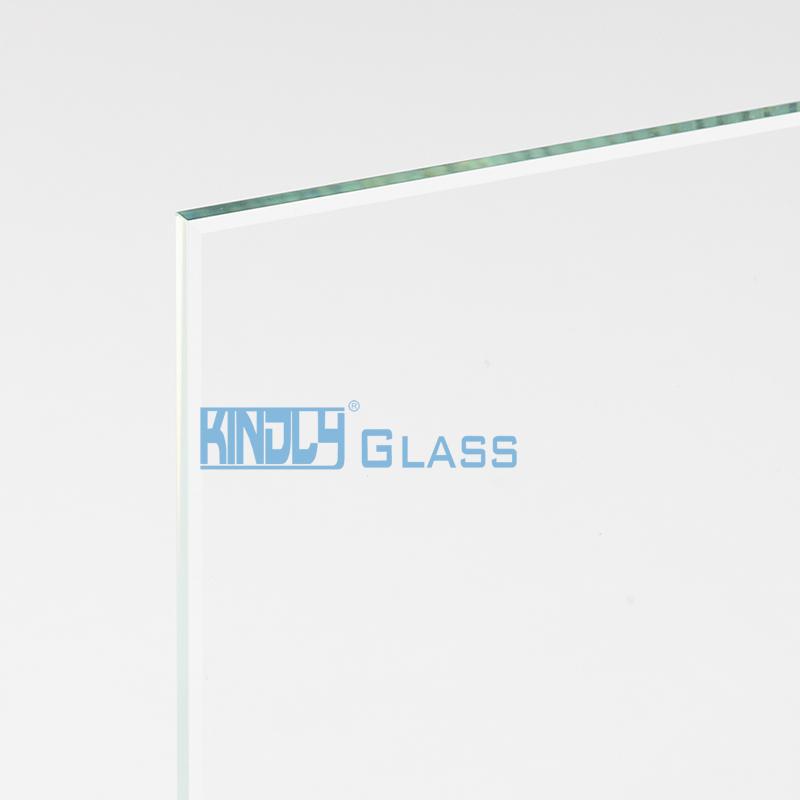

Low Iron Glass
Low Iron Glass is also called Ultra clear glass,it is a kind of exceeding clarity and low iron glass,
which is also called low iron glass, high transmittance glass. It is a new type of high grade glass
that has high performance and multifunction ,the light transmittance achieves above 91.5%,
it has the character of glittering and translucent, elegant and graceful, which has the title of crystal prince in glass family.
Following is the standrad thickness and size :
| Thickness mm | Thickness Tolerance (mm) | Ultra Clear Float Glass Panel Size mm | Max Loading Weight/CNT |
| 3, 3.2 | ±0.2 | 1830 x 2440, 2000 x 2440, 2140 x 3050/3300/3660, 2250 x 3050/3300/3660, 2440 x 3050/3300/3660 | 27 Tons |
| 4, 4.8 | ±0.2 | 1830 x 2440, 2000 x 2440, 2140 x 3050/3300/3660, 2250 x 3050/3300/3660, 2440 x 3050/3300/3660 | 27 Tons |
| 5, 5.5 | ±0.2 | 1830 x 2440, 2000 x 2440, 2140 x 3050/3300/3660, 2250 x 3050/3300/3660, 2440 x 3050/3300/3660 | 27 Tons |
| 6 | ±0.2 | 1830 x 2440, 2000 x 2440, 2140 x 3050/3300/3660, 2250 x 3050/3300/3660, 2440 x 3050/3300/3660 | 27 Tons |
| 8 | ±0.3 | 1830 x 2440, 2000 x 2440, 2140 x 3050/3300/3660, 2250 x 3050/3300/3660, 2440 x 3050/3300/3660 | 27 Tons |
| 10 | ±0.3 | 1830 x 2440, 2000 x 2440, 2140 x 3050/3300/3660, 2250 x 3050/3300/3660, 2440 x 3050/3300/3660 | 27 Tons |
| 12 | ±0.3 | 1830 x 2440, 2000 x 2440, 2140 x 3050/3300/3660, 2250 x 3050/3300/3660, 2440 x 3050/3300/3660 | 27 Tons |
| 15 | ±0.5 | 1830 x 2440, 2140 x 3050/3300/3660, 2250 x 3050/3300/3660,2440 x 3050/3300/3660 3300 x 4500-13000 | 27 Tons |
| 19 | ±0.7 | 1830 x 2440, 2140 x 3050/3300/3660, 2250 x 3050/3300/3660,2440 x 3050/3300/3660 3300 x 4500-13000 | 27 Tons |
| 22 | ±1.0 | 1830 x 2440, 2140 x 3050/3300/3660, 2250 x 3050/3300/3660,2440 x 3050/3300/3660 3300 x 4500-13000 | 27 Tons |
| 25 | ±1.0 | 1830 x 2440, 2140 x 3050/3300/3660, 2250 x 3050/3300/3660,2440 x 3050/3300/3660 3300 x 4500-13000 | 27 Tons |
Following is parameter for ultra clear glass:
| Thickness | Visible Light Trans mittance | Visible Light Reflectivity | Solar Radiant coefficient | Shading coefficient | U value | Sound insulation | UV penetration | ||||||
| Direct Penetrate | Reflectivity | Absorb | Total Penetrate | Short Wave | Long Wave | Total | W/sqm.K | Rm(dB) | Rw(dB) | ||||
| 3mm | 91.5 | 8 | 91 | 8 | 1 | 91 | 1.05 | 0.01 | 1.05 | 5.8 | 26 | 30 | 76 |
| 3.2mm | 91.5 | 8 | 91 | 8 | 2 | 91 | 1.03 | 0.01 | 1.05 | 5.8 | 26 | 30 | 75 |
| 4mm | 91.4 | 8 | 90 | 8 | 2 | 91 | 1.03 | 0.01 | 1.05 | 5.8 | 27 | 30 | 73 |
| 5mm | 91.3 | 8 | 90 | 8 | 2 | 90 | 1.03 | 0.01 | 1.03 | 5.8 | 29 | 32 | 71 |
| 6mm | 91.08 | 8 | 89 | 8 | 3 | 90 | 1.02 | 0.01 | 1.03 | 5.7 | 29 | 32 | 70 |
| 8mm | 91.89 | 8 | 88 | 8 | 4 | 89 | 1.01 | 0.01 | 1.02 | 5.7 | 31 | 34 | 68 |
| 10mm | 91.62 | 8 | 88 | 8 | 4 | 89 | 1.01 | 0.02 | 1.02 | 5.6 | 33 | 36 | 66 |
| 12mm | 91.44 | 8 | 87 | 8 | 5 | 88 | 1 | 0.02 | 1.01 | 5.5 | 34 | 37 | 64 |
| 15mm | 90.09 | 8 | 86 | 8 | 6 | 87 | 0.99 | 0.02 | 1 | 5.5 | 35 | 38 | 61 |
| 19mm | 89.73 | 8 | 84 | 8 | 7 | 86 | 0.97 | 0.02 | 0.99 | 5.5 | 37 | 40 | 59 |
| 22mm | 89.6 | 8 | 82 | 8 | 9 | 85 | 0.95 | 0.02 | 0.97 | 5.5 | 38 | 43 | 58 |
| 25mm | 89 | 8 | 81 | 8 | 9 | 84 | 0.93 | 0.02 | 0.95 | 5.5 | 39 | 45 | 56 |
Packing:
Paper or powder interlayer between two glass panels and plywood crates or wooden crates with straps. crates type include open crates, end cap, common frame.
.JPG)
.jpg)
Kindly processed glasses Products are fully accredited to enable you to buy with confidence. Our accreditation include:
ISO9001 | China GB | EN(European Norm) | ANSI(American National Standards Institute) | AS/NZS
Kindly Glass & Mirror is a professional supplier of glass panels and good manufacturer of processed glass panels.
