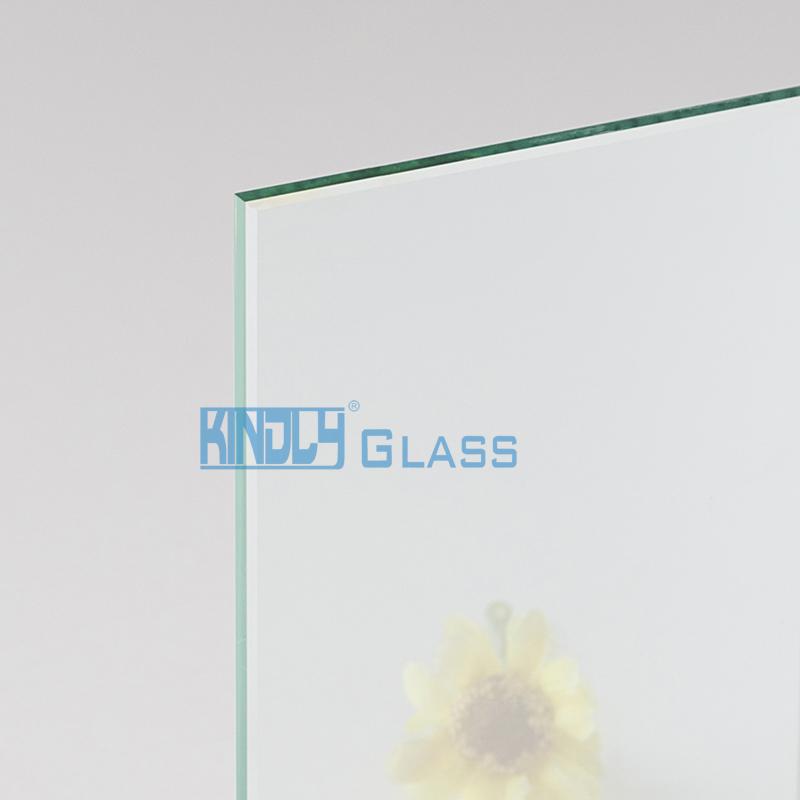

AGC Stopsol Supersilver Hard Coated Glass 4-6mm

AGC Stopsol Supersilver Hard Coated Glass 4-6mm AGC Stopsol Supersilver Hard Coated Glass 4-6mm AGC Stopsol Supersilver Hard Coated Glass 4-6mm AGC Stopsol Supersilver Hard Coated Glass 4-6mm
Type Hard Coated Glass
Thickness 3,3.2 4,5,5.5,6,8,10,12mm
Other Colors French Green (Light Green),Dark Green(Natural Green);

Ford Blue, Dark Blue (Diamond Blue);

Ocean Blue, Kunshan Blue, Crystal Blue;

Euro Bronze(Grey Bronze), Golden Bronze, Pink;

Blue Grey,Dark Grey, Crystal Grey,
Standard Size 1650 x 2440, 1830 x 2440, 1650 x 2140, 2140 x 3300/3660,

2250 x 3300/3660, 2440 x 3300/3660
Incoterms EXW,FOB,CFR,CIF,CIP,DDU,DDP.
Lead time About 20 days upon receipt of your deposit or confirmation.
MOQ 100 Sqm.
Package Paper or powder interlayer between two glass panels and plywood crates with straps.
Payment Terms T/T, L/C, D/P, Western Union,Paypal.
Place of origin CHINA


Type Hard Coated Glass
Thickness 3,3.2 4,5,5.5,6,8,10,12mm
Other Colors French Green (Light Green),Dark Green(Natural Green);

Ford Blue, Dark Blue (Diamond Blue);

Ocean Blue, Kunshan Blue, Crystal Blue;

Euro Bronze(Grey Bronze), Golden Bronze, Pink;

Blue Grey,Dark Grey, Crystal Grey,
Standard Size 1650 x 2440, 1830 x 2440, 1650 x 2140, 2140 x 3300/3660,

2250 x 3300/3660, 2440 x 3300/3660
Incoterms EXW,FOB,CFR,CIF,CIP,DDU,DDP.
Lead time About 20 days upon receipt of your deposit or confirmation.
MOQ 100 Sqm.
Package Paper or powder interlayer between two glass panels and plywood crates with straps.
Payment Terms T/T, L/C, D/P, Western Union,Paypal.
Place of origin CHINA

Hard coated glass (coated On-Line): in this process, semi-conducted metal oxides are directly applied to the glass during the float glass production while the glass is still hot in the annealing lehr. These are hard coatings which are relatively harmful to the environment.

Soft coated glass (coated off-line):in this process one or more coats of metal oxide are applied under a vacuum to finished glass. The coatings applied by this technique are soft and must be protected against external influences and are therefore used for the interior side of glass panes. There are some other techniques for the OFF-LINE coating:

 Immersion Process

 Chemical Process

  Foil

Screened Glazin

Following is the reflective standard size and thickness:



Thickness  (mm) Thickness Tolerance (mm) Reflective Glass Panel Size mm Max Loading Weight/CNT
3,  3.2 ±0.2 1650 x 2440, 1830 x 2440,  2000 x 2440, 2140 x 3050/3300/3660,  2250 x 3050/3300/3660, 2440 x 3050/3300/3660   27 Tons
4 ±0.2 1650 x 2440, 1830 x 2440,  2000 x 2440, 2140 x 3050/3300/3660,  2250 x 3050/3300/3660, 2440 x 3050/3300/3660   27 Tons
5,  5.5 ±0.2 1650 x 2440, 1830 x 2440,  2000 x 2440, 2140 x 3050/3300/3660,  2250 x 3050/3300/3660, 2440 x 3050/3300/3660   27 Tons
6 ±0.2 1650 x 2440, 1830 x 2440,  2000 x 2440, 2140 x 3050/3300/3660,  2250 x 3050/3300/3660, 2440 x 3050/3300/3660   27 Tons
8 ±0.3 1650 x 2440, 1830 x 2440,  2000 x 2440, 2140 x 3050/3300/3660,  2250 x 3050/3300/3660, 2440 x 3050/3300/3660   27 Tons
10 ±0.3 1650 x 2440, 1830 x 2440,  2000 x 2440, 2140 x 3050/3300/3660,  2250 x 3050/3300/3660, 2440 x 3050/3300/3660   27 Tons
12 ±0.3 1650 x 2440, 1830 x 2440,  2000 x 2440, 2140 x 3050/3300/3660,  2250 x 3050/3300/3660, 2440 x 3050/3300/3660   27 Tons

Structure Light Properties Thermal Properties U Value
Single Glazing Thickness LT% LR(Ext)% EA% SF% SC W/ m². K Air
Stopsol Classic Clear 6mm 38 27 32 56 0.64 5.7
Bronze 6mm 22 12 59 46 0.53 5.7
Grey 6mm 19 10 63 44 0.51 5.7
Green 6mm 31 20 68 40 0.46 5.7
Dark Blue 6mm 24 14 71 39 0.45 5.7
Stopsol Supersilver Clear 6mm 63 34 13 68 0.78 5.7
Grey 6mm 29 11 57 49 0.56 5.7
Green 6mm 52 25 54 47 0.54 5.7
Dark Blue 6mm 41 17 59 45 0.52 5.7
Stopsol SilverLight PrivalBlue 6mm 27 8 79 36 0.41 5.7





Structure Light Properties Thermal Properties U Value U Value
Coating in Pos.2 Thickness LT% LR(Ext)% EA% SF% SC W/ m². K Air W/m² . K Ar
Stopsol Classic Clear 6-12-6mm 35 28 39 47 0.54 2.8 2.7
Bronze 6-12-6mm 20 12 64 35 0.40 2.8 2.7
Grey 6-12-6mm 17 10 67 33 0.38 2.8 2.7
Green 6-12-6mm 28 20 70 29 0.33 2.8 2.7
Dark Blue 6-12-6mm 22 14 74 27 0.31 2.8 2.7
Stopsol Supersilver Clear 6-12-6mm 58 37 21 60 0.69 2.8 2.7
Grey 6-12-6mm 27 12 62 38 0.44 2.8 2.6
Green 6-12-6mm 47 27 58 37 0.43 2.8 2.7
Dark Blue 6-12-6mm 37 19 63 35 0.40 2.8 2.7
Stopsol SilverLight PrivalBlue 6-12-6mm 24 8 80 24 0.28 2.8 2.7
Packing: Paper or powder interlayer between two glass panels and plywood crates or wooden crates with straps.

Crates type including  open crates, end cap, common frame as following:
