Flat plate solar collector, solar cover tempered glass

Flat plate solar collector, solar cover tempered glass Flat plate solar collector, solar cover tempered glass Flat plate solar collector, solar cover tempered glass Flat plate solar collector, solar cover tempered glass

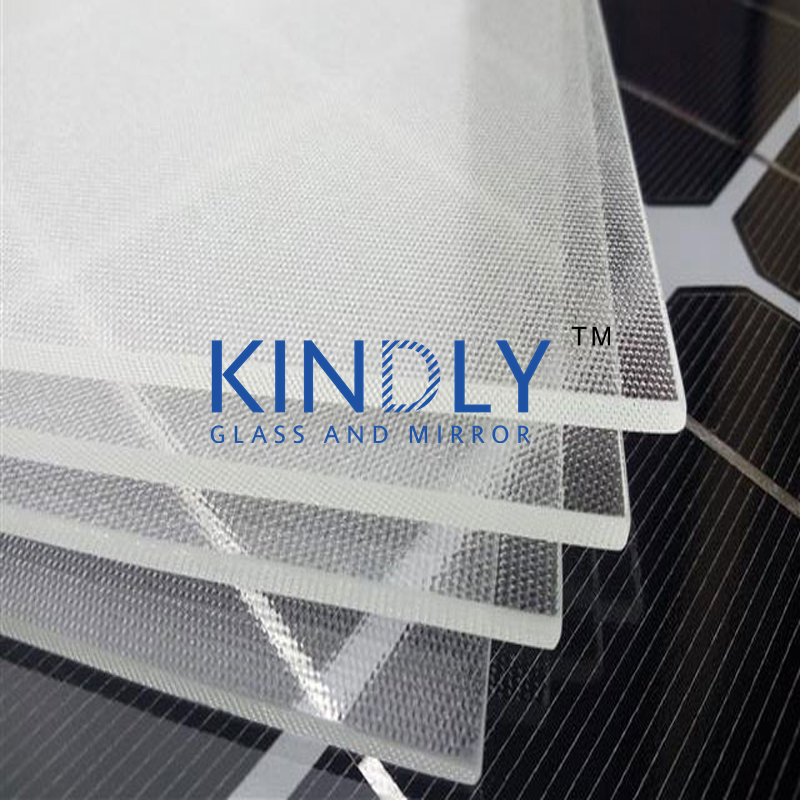

Type Solar Photovoltaic Glass
Thickness 3.2,4.0mm
Other Colors Ultra Clear and clear for bottom glass plate.
Standard Size 986x1944mm
986x1634mm
986x1470mm
670x1470mm
670x1154mm
Tailor Size
Incoterms EXW,FOB,CFR,CIF,CIP,DDU,DDP.
Lead time About 20 days upon receipt of your deposit or confirmation.
MOQ 100 Sqm.
Package Paper interlayer between two glass panels and plywood pallets with straps.
Payment Terms T/T, L/C, D/P, Western Union,Paypal.
Place of origin CHINA


Type Solar Photovoltaic Glass
Thickness 3.2,4.0mm
Other Colors Ultra Clear and clear for bottom glass plate.
Standard Size 986x1944mm
986x1634mm
986x1470mm
670x1470mm
670x1154mm
Tailor Size
Incoterms EXW,FOB,CFR,CIF,CIP,DDU,DDP.
Lead time About 20 days upon receipt of your deposit or confirmation.
MOQ 100 Sqm.
Package Paper interlayer between two glass panels and plywood pallets with straps.
Payment Terms T/T, L/C, D/P, Western Union,Paypal.
Place of origin CHINA

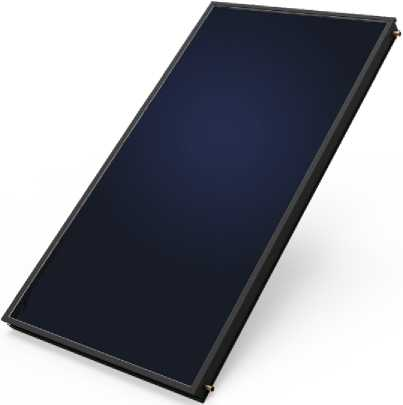

The Flat plate collector has higher efficiency for application temperature range under 65°C. With high quality selective PVD blue titanium coating / plating black chrome coating and multiple insulation technologies, the flat plate collector has high absorption rate, low emission rate and excellent
Installation types
Pitched roof, flat roof, on-wall
Advantages and benefits
•  Higher efficiency for temperature range under 65°C.
•  Short installation times due to complete pre-assembled collectors.
•  Easy integration with buildings.
•  High explosion protection performance.
•  Without overheating problem in summer season.

Dimensions of collector

Grid dimensions (length x height x depth)

mm

2000x1000x95

Gross surface area

m2

2

Aperture area

m2

1.85

Technical features

Mainfold pipe

mm (material),pcs

cp 22 x 0.8 (Copper), 2pcs

Riser pipe

mm (material),pcs

cp 10 x 0.7 ( Copper), 9pcs

A in relation to aperture, EN12975

%

80.5

a1 with wind, in relation to aperture

W/(m2k)

3.555

a2 with wind, in relation to aperture

W/(m2k2)

0.029

Annual collector output at 50C, location Wurzburg kWh

1002

Collector content

L

1.8

Net weight

Kg

40

Max. working pressure

Mpa

0.8

Max. working temperture

°C

99

Material

Absorber absorber coating

material

Aluminum Blue Titanium or Black Chrome

Frame

material

Aluminum alloy

Glazing material / thickness

material/mm

Low-iron super-white textured reinforced glass 3.2

Back plate

material

Al-Zn steel

Insulation material thickness

mm

Polyester insulation cotton 50 for bottom, 18 for side

*Other product models (FP2000L:2500x800x80mm, FP3000: 2000x1500x80mm) are available on request.
