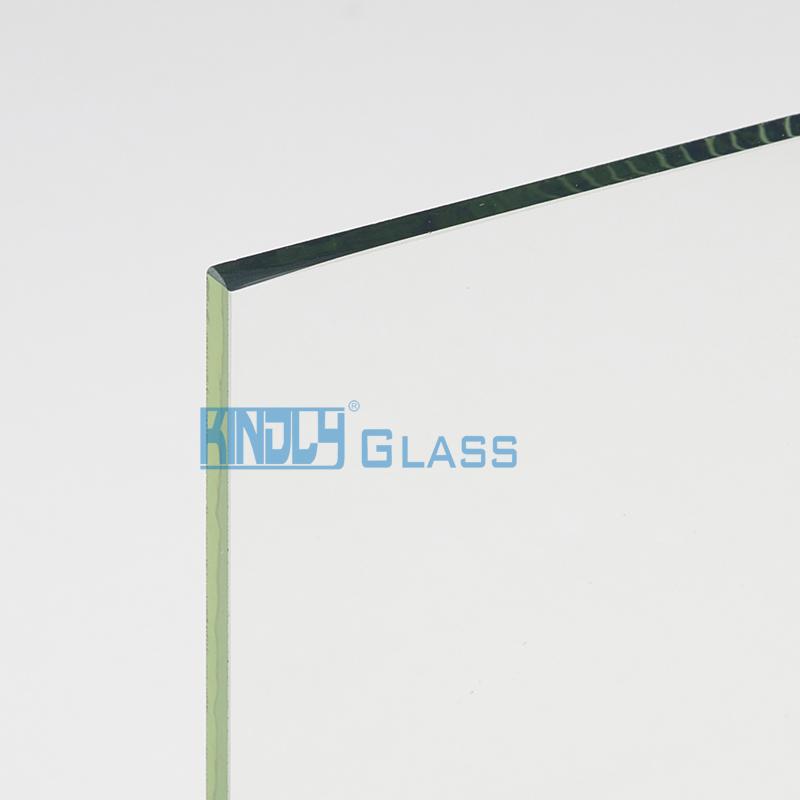

ITO Glass, Pilkington Tec & Wg Glass ，China ITO Glass, Pilkington Tec & Wg Glass manufacturer and supplier

Recommended Pilkington Tec & Wg Glass

Pilkington provide a series of tec & wg glass products with “thermal and heating” properties with advanced technology of nsg. Tec & wg glass features include anti-reflective treatment, enhanced transparency, light transmittance and conductivity and etc. because of the on-line coating production, tec & wg glass provides good electrical conductivity ,and thermal control and heating performance .tec & wg glass is ideal used for passive condensation control and thermal performance ,with the lowest thermal transmittance and the clearest visuals.

For passive condensation control and thermal properties, use WG10 glass. For active electric heating condensation control, use WG10,WG17,WG250, etc.

Features

1, In order to conducting electric heating and condensation control, while controlling the increase of electromagnetic dissipation;
2, Neutral color: excellent performance at the same time, the color to maintain a neutral color;
3, Durable surface: due to the use of online coating production technology, metal coating has been combined with the glass at high temperature, so
It can protect the glass from wear and tear, it is not easy to oxidation and fade;
4, Easy to process: due to durability, so easy to operate. Very easy to cut, processed into hollow, laminated glass and tempered;
5, Can bend: it is the biggest difference with the off-line coating glass is that it can be heated after bending;
6, The best supply: reduce the time required to wait for orders, but also reduce the cost of products;
7, Many kinds of choices: there are a variety of thickness for choice.

Application

The product can provide 7-1000ohms/ SQM with different resistors. Now the main products are WG10,WG17 and WG250, which are suitable for various electric heating applications of 220V,110V and 36V.

Ideal application of WG household appliance glass: it is suitable for the rear windshield of top grade car, electric heating glass, touch screen glass, top grade freezer, refrigerator, microwave oven and glass door of oven, etc.

TEK Series Hard LowE Glass

Testing Items		TEK7	TEK10	TEK15	TEK35	TEK70	TEK90	TEK180	TEK230	TEK250	Test Equipment
Thickness		4mm3.2mm ±0.1mm									Micrometer
Visible Light Transmissivity		≥80%	≥82%	≥83%	≥83%	≥83%	≥83%	≥83%	≥83%	≥83%	Hazegard
Coating Ref.		≤11%	≤11%	＜12%	＜12%	＜12%	＜12%	＜12%	＜12%	＜12%	HunterLad
Haze		≤3%	≤1.7%	≤1%	≤1%	≤1%	≤1%	≤1%	≤1%	≤1%	Hazegard
Square Resistance	Before Tempered	5.5-8Ω/■	8.0-9.5Ω/■	12-14Ω/■	36-40Ω/■	60-68Ω/■	80-88Ω/■	180-210Ω/■	220-270Ω/■	260-320Ω/■	Four-point Probe or Nagy Sheet Resistance Meter
Square Resistance	After Tempered	6-8Ω/■	8.5-10Ω/■	12-14Ω/■	36-40Ω/■	64-72Ω/■	84-92Ω/■	165-193Ω/■	200-260Ω/■	250-300Ω/■	Four-point Probe or Nagy Sheet Resistance Meter
Emissivity		＜0.10	＜0.13	＜0.15	＜0.35	＜0.45	＜0.55	＜0.60	＜0.63	＜0.67	International Standard
Color Uniformity		∆E*ab≤0.8	∆E*ab≤0.8	∆E*ab≤0.8	∆E*ab≤0.8	∆E*ab≤0.8	∆E*ab≤0.8	∆E*ab≤0.8	∆E*ab≤0.8	∆E*ab≤0.8	Measured value on same piece of glass (310*310mm)

WG Series Hard LowE Glass

Testing Items	WG7	WG10	WG12	WG15	WG17	WG70	WG180	WG250	Test Equipment
Thickness	3.2 & 4.0								Micrometer
Visible Light Transmissivity	≥82%	≥82%	≥83%	≥83%	≥83%	≥84%	≥84%	≥84%	Hazegard
Square Resistance	6-8Ω/■	8-10Ω/■	-15Ω/■	≤13.5Ω/■	16-18Ω/■	60-80Ω/■	160-200Ω/■	240-320Ω/■	Four-point Probe or Nagy Sheet Resistance Meter
Emissivity	0.11	0.13	0.16	0.15	0.18	0.45	0.52	0.67	International Standard
Color Uniformity	∆E*ab≤0.9	∆E*ab≤0.9	∆E*ab≤0.9	∆E*ab≤0.9	∆E*ab≤0.9	∆E*ab≤0.9	∆E*ab≤0.9	∆E*ab≤0.9	Measured value on same piece of glass (310*310mm)

Packing: Paper or powder interlayer between two glass panels and plywood crates or wooden crates with straps.

Crates type including open crates, end cap, common frame as following:

Type	ITO Glass
Thickness	3,4,5,5.5,6,8,10,12mm
Other Colors	French Green (Light Green),Dark Green(Natural Green); Ford Blue, Dark Blue (Diamond Blue); Ocean Blue, Kunshan Blue, Crystal Blue; Euro Bronze(Grey Bronze), Golden Bronze, Pink; Blue Grey,Dark Grey, Crystal Grey, Black; Crystal Yellow.
Standard Size	1650 x 2440, 1830 x 2440, 1650 x 2140, 2140 x 3300/3660, 2250 x 3300/3660, 2440 x 3300/3660
Incoterms	EXW,FOB,CFR,CIF,CIP,DDU,DDP.
Lead time	About 20 days upon receipt of your deposit or confirmation.
MOQ	100 Sqm.
Package	Paper or powder interlayer between two glass panels and plywood crates with straps.
Payment Terms	T/T, L/C, D/P, Western Union,Paypal.
Place of origin	CHINA

Type	ITO Glass
Thickness	3,4,5,5.5,6,8,10,12mm
Other Colors	French Green (Light Green),Dark Green(Natural Green); Ford Blue, Dark Blue (Diamond Blue); Ocean Blue, Kunshan Blue, Crystal Blue; Euro Bronze(Grey Bronze), Golden Bronze, Pink; Blue Grey,Dark Grey, Crystal Grey, Black; Crystal Yellow.
Standard Size	1650 x 2440, 1830 x 2440, 1650 x 2140, 2140 x 3300/3660, 2250 x 3300/3660, 2440 x 3300/3660
Incoterms	EXW,FOB,CFR,CIF,CIP,DDU,DDP.
Lead time	About 20 days upon receipt of your deposit or confirmation.
MOQ	100 Sqm.
Package	Paper or powder interlayer between two glass panels and plywood crates with straps.
Payment Terms	T/T, L/C, D/P, Western Union,Paypal.
Place of origin	CHINA
