| Type | Float Tinted Glass |
| Thickness | 2,3,4,5,5.5,6,8,10,12,15,19mm |
| Other Colors | French Green (Light Green),Dark Green(Natural Green); Ford Blue, Dark Blue (Diamond Blue); Ocean Blue, Kunshan Blue, Crystal Blue; Euro Bronze(Grey Bronze), Golden Bronze, Pink; Blue Grey,Dark Grey, Crystal Grey, Black; Crystal Yellow. |
| Standard Size | 1650 x 2440, 1830 x 2440, 1650 x 2140, 2140 x 3300/3660, 2250 x 3300/3660, 2440 x 3300/3660 |
| Jumbo Size | 3300X6500 MM |
| Incoterms | EXW,FOB,CFR,CIF,CIP,DDU,DDP. |
| Lead time | About 20 days upon receipt of your deposit or confirmation. |
| MOQ | 100 Sqm. |
| Package | Paper or powder interlayer between two glass panels and plywood crates with straps. |
| Payment Terms | T/T, L/C, D/P, Western Union,Paypal. |
| Place of origin | CHINA |
| Type | Float Tinted Glass |
| Thickness | 2,3,4,5,5.5,6,8,10,12,15,19mm |
| Other Colors | French Green (Light Green),Dark Green(Natural Green); Ford Blue, Dark Blue (Diamond Blue); Ocean Blue, Kunshan Blue, Crystal Blue; Euro Bronze(Grey Bronze), Golden Bronze, Pink; Blue Grey,Dark Grey, Crystal Grey, Black; Crystal Yellow. |
| Standard Size | 1650 x 2440, 1830 x 2440, 1650 x 2140, 2140 x 3300/3660, 2250 x 3300/3660, 2440 x 3300/3660 |
| Jumbo Size | 3300X6500 MM |
| Incoterms | EXW,FOB,CFR,CIF,CIP,DDU,DDP. |
| Lead time | About 20 days upon receipt of your deposit or confirmation. |
| MOQ | 100 Sqm. |
| Package | Paper or powder interlayer between two glass panels and plywood crates with straps. |
| Payment Terms | T/T, L/C, D/P, Western Union,Paypal. |
| Place of origin | CHINA |

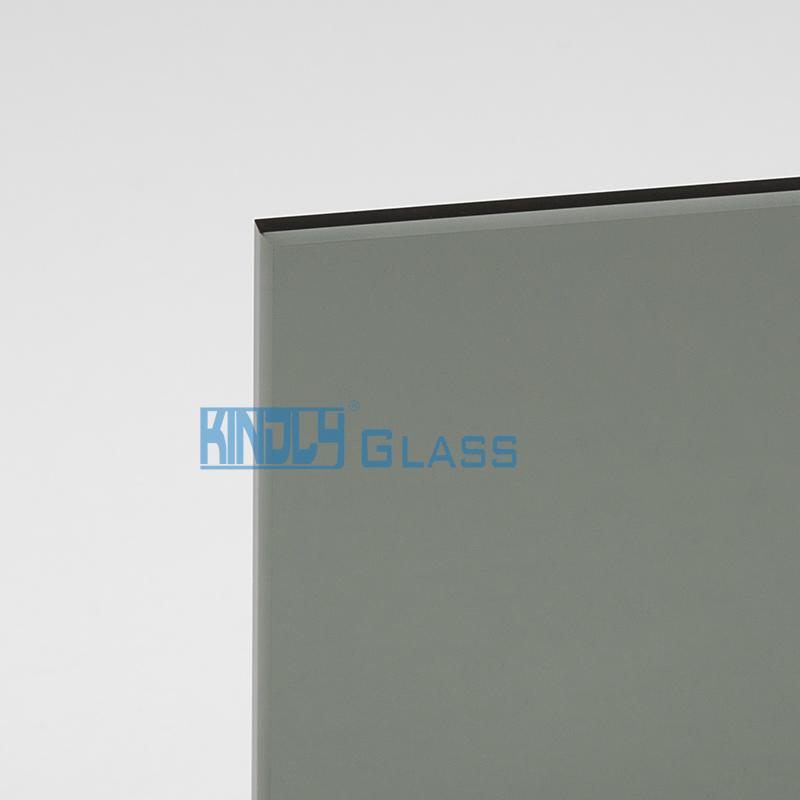

Privacy grey tinted float glass is float glass with colorant added during production. with the colorant added, the transparent clear float glass change to low transmittance body tinted glass with bright dark grey color. it is suitable to make automobile sunroofs, sidelites, architectural windows/curtain walls, etc.
Features:
1.Privacy grey tined float glass was specially developed for automobile sunroofs and sidelites, and has excellent heat insulation function. with around 10% visible light and solar energy transmittance, sc value around 0.40, the glass can block 50% solar heat into the car. it has excellent energy saving and environ-mental protection features.
2.Thanks to the less than 2% uv transmittance, the glass can protect the organic materials inside the car from the uv light, and leads to longer durability of the interiors.
3.Excellent privacy features. the designers and customers have high requirements of privacy protection.
they don’t want other people to see through the glass from outside, while the passengers inside can observe the outside without any problem. the privacy grey tinted float glass can ensure about this and protect the passengers’ privacy inside the car.
Thickness: 2mm -19mm
Maximum size: 3300 X 6500mm
Minimum size : 500 X 700mm
|
Product: PG10 Privacy Gray |
Thickness (MM) |
Optic Character(%) & Test Specification |
Color character &Test specification |
|||||
|
LTA (light transmittance) |
TE (Solar direct transmittance) |
TUV (UV-transmittance) |
TIR Near-infrared) |
L* |
a* |
b* |
||
|
380nm-780nm |
300nm-2500nm |
300nm-380nm |
780-2500nm |
1931CIE L*a*b |
||||
|
ISO9050-2003 |
||||||||
|
3.2 (3.1-3.3) |
15.1 |
14.0 |
2.8 |
12.0 |
46.0 |
-3.9 |
1.9 |
|
|
4.0(3.8-4.0) |
9.7 |
8.7 |
1.4 |
6.8 |
37.5 |
-4.7 |
1.7 |
|
|
5.0(4.8-5.2) |
5.4 |
5.0 |
0.8 |
4.0 |
28.1 |
-4.6 |
2.1 |
|
|
Tolerance |
±2.0 |
±3.0 |
±3.0 |
±3.0 |
△Eab≤2.5 |
|||
.JPG)
.jpg)
880.jpg)
Kindly processed glasses Products are fully accredited to enable you to buy with confidence. Our accreditation include:
ISO9001 | China GB | EN(European Norm) | ANSI(American National Standards Institute) | AS/NZS
Kindly Glass & Mirror is a professional supplier of glass panels and good manufacturer of processed glass panels.
