Recommended pilkington privacy grey

Recommended pilkington privacy grey Recommended pilkington privacy grey Recommended pilkington privacy grey Recommended pilkington privacy grey
Type Automotive Glass
Thickness 3,4,5,5.5,6,8,10,12mm
Other Colors French Green (Light Green),Dark Green(Natural Green); Ford Blue, Dark Blue (Diamond Blue); Ocean Blue, Kunshan Blue, Crystal Blue; Euro Bronze(Grey Bronze), Golden Bronze, Pink; Blue Grey,Dark Grey, Crystal Grey, Black; Crystal Yellow.
Standard Size 1650 x 2440, 1830 x 2440, 1650 x 2140, 2140 x 3300/3660, 2250 x 3300/3660, 2440 x 3300/3660
Incoterms EXW,FOB,CFR,CIF,CIP,DDU,DDP.
Lead time About 20 days upon receipt of your deposit or confirmation.
MOQ 100 Sqm.
Package Paper or powder interlayer between two glass panels and plywood crates with straps.
Payment Terms T/T, L/C, D/P, Western Union,Paypal.
Place of origin CHINA


Type Automotive Glass
Thickness 3,4,5,5.5,6,8,10,12mm
Other Colors French Green (Light Green),Dark Green(Natural Green); Ford Blue, Dark Blue (Diamond Blue); Ocean Blue, Kunshan Blue, Crystal Blue; Euro Bronze(Grey Bronze), Golden Bronze, Pink; Blue Grey,Dark Grey, Crystal Grey, Black; Crystal Yellow.
Standard Size 1650 x 2440, 1830 x 2440, 1650 x 2140, 2140 x 3300/3660, 2250 x 3300/3660, 2440 x 3300/3660
Incoterms EXW,FOB,CFR,CIF,CIP,DDU,DDP.
Lead time About 20 days upon receipt of your deposit or confirmation.
MOQ 100 Sqm.
Package Paper or powder interlayer between two glass panels and plywood crates with straps.
Payment Terms T/T, L/C, D/P, Western Union,Paypal.
Place of origin CHINA

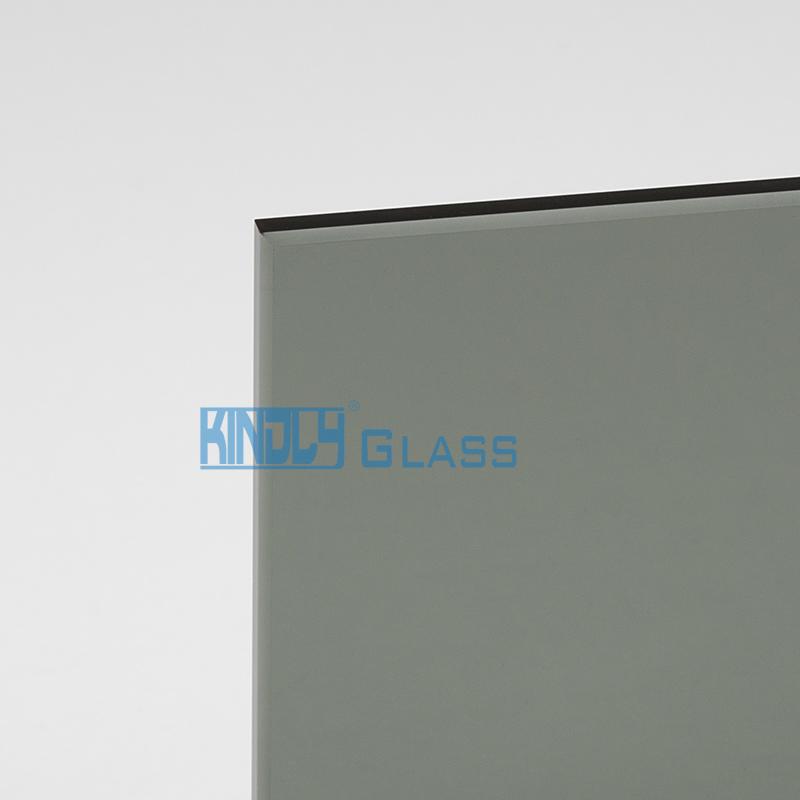

Privacy grey tinted float glass is float glass with colorant added during production. with the colorant added, the transparent clear float glass change to low transmittance body tinted glass with bright dark grey color. it is suitable to make automobile sunroofs, sidelites, architectural windows/curtain walls, etc.

Features:

1.Privacy grey tined float glass was specially developed for automobile sunroofs and sidelites, and has excellent heat insulation function. with around 10% visible light and solar energy transmittance, sc value  around 0.40, the glass can block 50% solar heat into the car. it has excellent energy saving and environ-mental protection features.

2.Thanks to the less than 2% uv transmittance, the glass can protect the organic materials inside the car from the uv light, and leads to longer durability of the interiors.

3.Excellent privacy features. the designers and customers have high requirements of privacy protection.

they don’t want other people to see through the glass from outside, while the passengers inside can  observe the outside without any problem. the privacy grey tinted float glass can ensure about this and protect the passengers’ privacy inside the car.



Thickness:  2mm -19mm

Maximum size:  3300 X 6500mm

Minimum size : 500 X 700mm

Performance



Product:

PG10 Privacy Gray

Thickness (MM)

Optic Character(%) & Test Specification

Color character &Test specification

LTA         (light transmittance)

TE       (Solar direct transmittance)

TUV     (UV-transmittance)

TIR Near-infrared)

L*

a*

b*

380nm-780nm

300nm-2500nm

300nm-380nm

780-2500nm

1931CIE L*a*b

ISO9050-2003

3.2 (3.1-3.3)

15.1

14.0

2.8

12.0

46.0

-3.9

1.9

4.0(3.8-4.0)

9.7

8.7

1.4

6.8

37.5

-4.7

1.7

5.0(4.8-5.2)

5.4

5.0

0.8

4.0

28.1

-4.6

2.1

Tolerance

±2.0

±3.0

±3.0

±3.0

△Eab≤2.5





Packing: Paper or powder interlayer between two glass panels and plywood crates or wooden crates with straps.

               Crates type include open crates, end cap, common frame.
