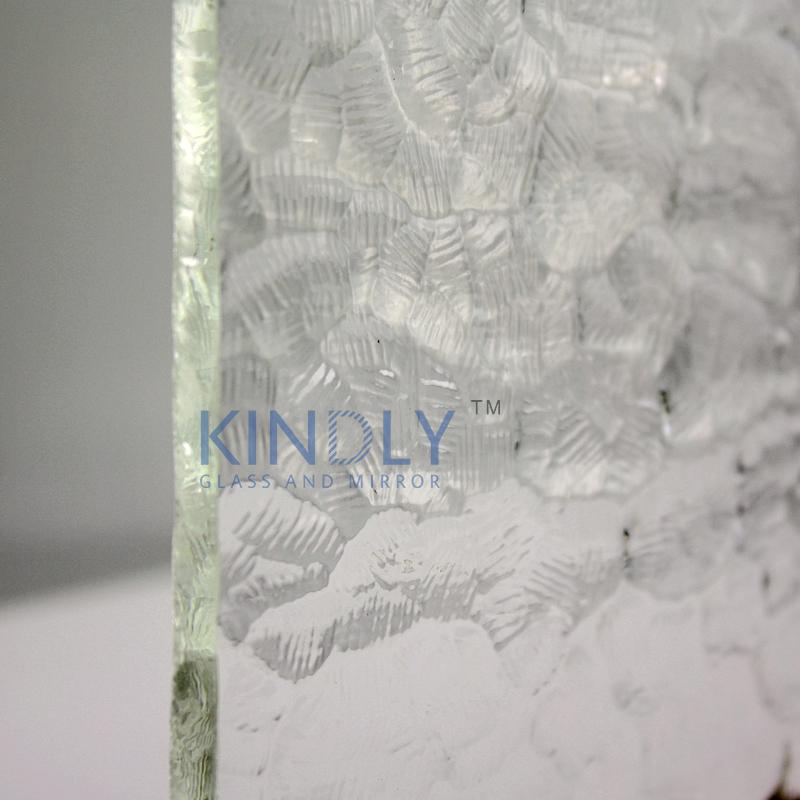

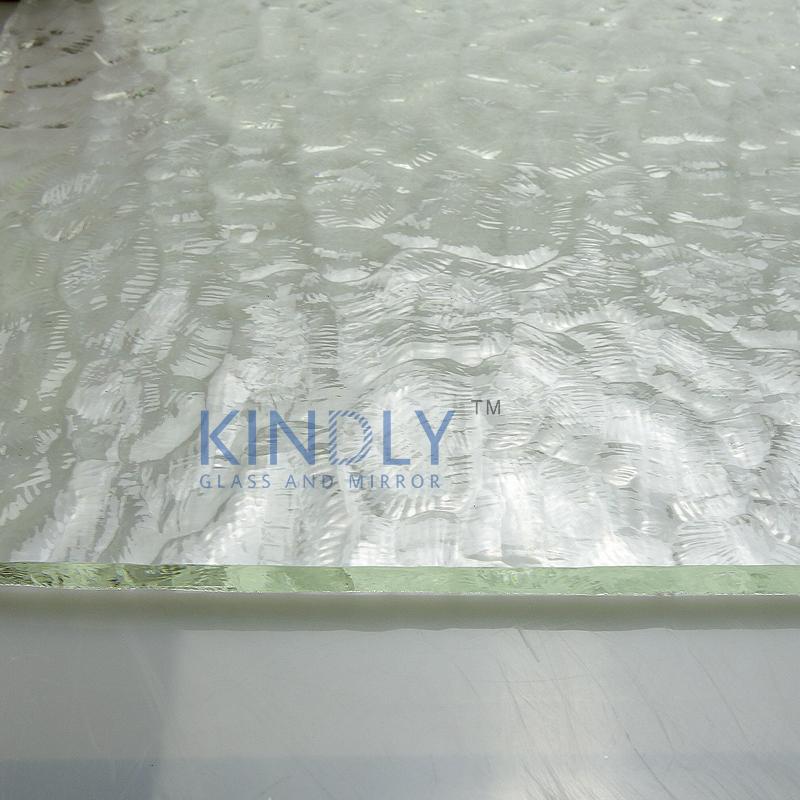

Ultra clear oceanic (ripple) patterned glass

Ultra clear oceanic (ripple) patterned glass Ultra clear oceanic (ripple) patterned glass Ultra clear oceanic (ripple) patterned glass Ultra clear oceanic (ripple) patterned glass
Type Ultra Clear Patterned Glass
Thickness 3,4,5,5.5,6,8,10,12mm
Other Colors Clear,Ultra clear, Green, Blue, Bronze, Amber,Grey.
Standard Size 1500 x 2000, 1524 x 2134, 1650 x 2440, 1830 x 2440, 2100 x 2100,
1650 x 2140, 1830 x 2134, 2134 x 3300, 2000 x 2800, 2000 x 2440.
Incoterms EXW,FOB,CFR,CIF,CIP,DDU,DDP.
Lead time About 20 days upon receipt of your deposit or confirmation.
MOQ 100 Sqm.
Package Paper or powder interlayer between two glass panels and plywood crates with straps.
Payment Terms T/T, L/C, D/P, Western Union,Paypal.
Place of origin CHINA


Type Ultra Clear Patterned Glass
Thickness 3,4,5,5.5,6,8,10,12mm
Other Colors Clear,Ultra clear, Green, Blue, Bronze, Amber,Grey.
Standard Size 1500 x 2000, 1524 x 2134, 1650 x 2440, 1830 x 2440, 2100 x 2100,
1650 x 2140, 1830 x 2134, 2134 x 3300, 2000 x 2800, 2000 x 2440.
Incoterms EXW,FOB,CFR,CIF,CIP,DDU,DDP.
Lead time About 20 days upon receipt of your deposit or confirmation.
MOQ 100 Sqm.
Package Paper or powder interlayer between two glass panels and plywood crates with straps.
Payment Terms T/T, L/C, D/P, Western Union,Paypal.
Place of origin CHINA

Patterned glass  is a not-perfectly-smooth structure with different patterns impressed on it.

The depth, size and shape of the patterns largely determine the magnitude and direction of reflection. Patterned glass usually transmits only slightly less light than clear glass. It can be used for a variety of applications: interior design and decorations, furniture, windows, street furniture etc.

Production
Patterned glass is made with a rolled glass process. The semi-molten glass is squeezed between two metal rollers.

The bottom roller is engraved with the negative of the potter. Thickness is controlled by adjustment of the gap between the rollers.


Thickness  mm Rolled Glass Panel Size mm Max Loading Weight/CNT
3,  3.5 1500 x 2000,  1524 x 2134,  1650 x 2440,  1830 x 2440,  1650 x 2140,  1830 x 2134  27 Tons
4 1500 x 2000,  1524 x 2134,  1650 x 2440,  1830 x 2440,  1650 x 2140,  1830 x 2134  27 Tons
5,  5.5 1500 x 2000,  1524 x 2134,  1650 x 2440,  1830 x 2440,  1650 x 2140,  1830 x 2134  27 Tons
6 1500 x 2000,  1524 x 2134,  1650 x 2440,  1830 x 2440,  1650 x 2140,  1830 x 2134,  2134 x 3300  27 Tons
8 1500 x 2000,  1524 x 2134,  1650 x 2440,  1830 x 2440,  1650 x 2140,  1830 x 2134,  2134 x 3300   27 Tons
