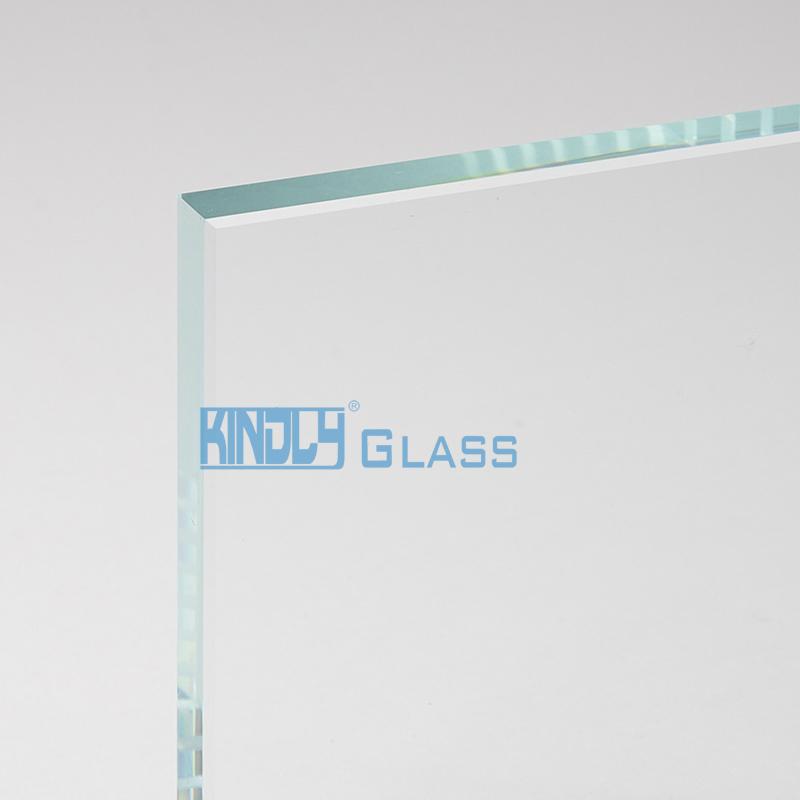

12mm Super Clear Glass

12mm Super Clear Glass 12mm Super Clear Glass 12mm Super Clear Glass 12mm Super Clear Glass
Type Ultra Clear Glass
Thickness 3,3.2, 4,5,6,8,10,12,15,19,22,25 mm
Standard Size 1650 x 2440, 1830 x 2440, 1650 x 2140, 2140 x 3300/3660,
2250 x 3300/3660, 2440 x 3300/3660
Jumbo Size 3300x4000, 3300x5000, 3300x6000, 3300x7000, 3300x8000,3300x9000,3300x11000,3300x12000,
3300x130000,3300x14000,3300x15000
Incoterms EXW,FOB,CFR,CIF,CIP,DDU,DDP.
Lead time About 10-15 days upon receipt of your deposit or confirmation.
MOQ 100 Sqm.
Package Paper or powder interlayer between two glass panels and plywood crates with straps.
Payment Terms T/T, L/C, D/P, Western Union,Paypal.
Place of origin CHINA


Type Ultra Clear Glass
Thickness 3,3.2, 4,5,6,8,10,12,15,19,22,25 mm
Standard Size 1650 x 2440, 1830 x 2440, 1650 x 2140, 2140 x 3300/3660,
2250 x 3300/3660, 2440 x 3300/3660
Jumbo Size 3300x4000, 3300x5000, 3300x6000, 3300x7000, 3300x8000,3300x9000,3300x11000,3300x12000,
3300x130000,3300x14000,3300x15000
Incoterms EXW,FOB,CFR,CIF,CIP,DDU,DDP.
Lead time About 10-15 days upon receipt of your deposit or confirmation.
MOQ 100 Sqm.
Package Paper or powder interlayer between two glass panels and plywood crates with straps.
Payment Terms T/T, L/C, D/P, Western Union,Paypal.
Place of origin CHINA

Low Iron Glass
Low Iron Glass is also called Ultra clear glass,it is a kind of exceeding clarity and low iron glass,

which is also called low iron glass, high transmittance glass. It is a new type of high grade glass

that has high performance and multifunction ,the light transmittance achieves above 91.5%,

it has the character of glittering and translucent, elegant and graceful, which has the title of crystal prince in glass family.



Following is the standrad thickness and size :

Thickness  mm Thickness Tolerance (mm) Ultra Clear Float Glass Panel Size mm Max Loading Weight/CNT
3,  3.2 ±0.2 1830 x 2440,  2000 x 2440, 2140 x 3050/3300/3660,  2250 x 3050/3300/3660, 2440 x 3050/3300/3660   27 Tons
4,  4.8 ±0.2 1830 x 2440,  2000 x 2440, 2140 x 3050/3300/3660,  2250 x 3050/3300/3660, 2440 x 3050/3300/3660   27 Tons
5,  5.5 ±0.2 1830 x 2440,  2000 x 2440, 2140 x 3050/3300/3660,  2250 x 3050/3300/3660, 2440 x 3050/3300/3660   27 Tons
6 ±0.2 1830 x 2440,  2000 x 2440, 2140 x 3050/3300/3660,  2250 x 3050/3300/3660, 2440 x 3050/3300/3660   27 Tons
8 ±0.3 1830 x 2440,  2000 x 2440, 2140 x 3050/3300/3660,  2250 x 3050/3300/3660, 2440 x 3050/3300/3660   27 Tons
10 ±0.3 1830 x 2440,  2000 x 2440, 2140 x 3050/3300/3660,  2250 x 3050/3300/3660, 2440 x 3050/3300/3660   27 Tons
12 ±0.3 1830 x 2440,  2000 x 2440, 2140 x 3050/3300/3660,  2250 x 3050/3300/3660, 2440 x 3050/3300/3660   27 Tons
15 ±0.5 1830 x 2440, 2140 x 3050/3300/3660,  2250 x 3050/3300/3660,2440 x 3050/3300/3660  3300 x 4500-13000 27 Tons
19 ±0.7 1830 x 2440, 2140 x 3050/3300/3660,  2250 x 3050/3300/3660,2440 x 3050/3300/3660  3300 x 4500-13000 27 Tons
22 ±1.0 1830 x 2440, 2140 x 3050/3300/3660,  2250 x 3050/3300/3660,2440 x 3050/3300/3660  3300 x 4500-13000 27 Tons
25 ±1.0 1830 x 2440, 2140 x 3050/3300/3660,  2250 x 3050/3300/3660,2440 x 3050/3300/3660  3300 x 4500-13000 27 Tons


Following is parameter for ultra clear glass:

Thickness Visible Light Trans      mittance Visible Light Reflectivity Solar Radiant coefficient Shading coefficient U value Sound insulation UV penetration
Direct Penetrate Reflectivity Absorb Total Penetrate Short Wave Long Wave Total W/sqm.K Rm(dB) Rw(dB)
3mm 91.5 8 91 8 1 91 1.05 0.01 1.05 5.8 26 30 76
3.2mm 91.5 8 91 8 2 91 1.03 0.01 1.05 5.8 26 30 75
4mm 91.4 8 90 8 2 91 1.03 0.01 1.05 5.8 27 30 73
5mm 91.3 8 90 8 2 90 1.03 0.01 1.03 5.8 29 32 71
6mm 91.08 8 89 8 3 90 1.02 0.01 1.03 5.7 29 32 70
8mm 91.89 8 88 8 4 89 1.01 0.01 1.02 5.7 31 34 68
10mm 91.62 8 88 8 4 89 1.01 0.02 1.02 5.6 33 36 66
12mm 91.44 8 87 8 5 88 1 0.02 1.01 5.5 34 37 64
15mm 90.09 8 86 8 6 87 0.99 0.02 1 5.5 35 38 61
19mm 89.73 8 84 8 7 86 0.97 0.02 0.99 5.5 37 40 59
22mm 89.6 8 82 8 9 85 0.95 0.02 0.97 5.5 38 43 58
25mm 89 8 81 8 9 84 0.93 0.02 0.95 5.5 39 45 56
