Bent / Curved Tempered Safety Glass

Bent / Curved Tempered Safety Glass Bent / Curved Tempered Safety Glass Bent / Curved Tempered Safety Glass Bent / Curved Tempered Safety Glass
Type Other Function Glass
Thickness 3,4,5,5.5,6,8,10,12,15,19,22,25mm
Other Colors French Green (Light Green),Dark Green(Natural Green); Ford Blue, Dark Blue (Diamond Blue); Ocean Blue, Kunshan Blue, Crystal Blue; Euro Bronze(Grey Bronze), Golden Bronze, Pink; Blue Grey,Dark Grey, Crystal Grey, Black; Crystal Yellow.
Standard Size 3D shape: C standard curved, multi-radius curved,moulded processed and J curved.
Incoterms EXW,FOB,CFR,CIF,CIP,DDU,DDP.
Lead time About 20 days upon receipt of your deposit or confirmation.
MOQ 100 Sqm.
Package Paper or powder interlayer between two glass panels and plywood crates with straps.
Payment Terms T/T, L/C, D/P, Western Union,Paypal.
Place of origin CHINA


Type Other Function Glass
Thickness 3,4,5,5.5,6,8,10,12,15,19,22,25mm
Other Colors French Green (Light Green),Dark Green(Natural Green); Ford Blue, Dark Blue (Diamond Blue); Ocean Blue, Kunshan Blue, Crystal Blue; Euro Bronze(Grey Bronze), Golden Bronze, Pink; Blue Grey,Dark Grey, Crystal Grey, Black; Crystal Yellow.
Standard Size 3D shape: C standard curved, multi-radius curved,moulded processed and J curved.
Incoterms EXW,FOB,CFR,CIF,CIP,DDU,DDP.
Lead time About 20 days upon receipt of your deposit or confirmation.
MOQ 100 Sqm.
Package Paper or powder interlayer between two glass panels and plywood crates with straps.
Payment Terms T/T, L/C, D/P, Western Union,Paypal.
Place of origin CHINA

Bent / Curved tempered glass

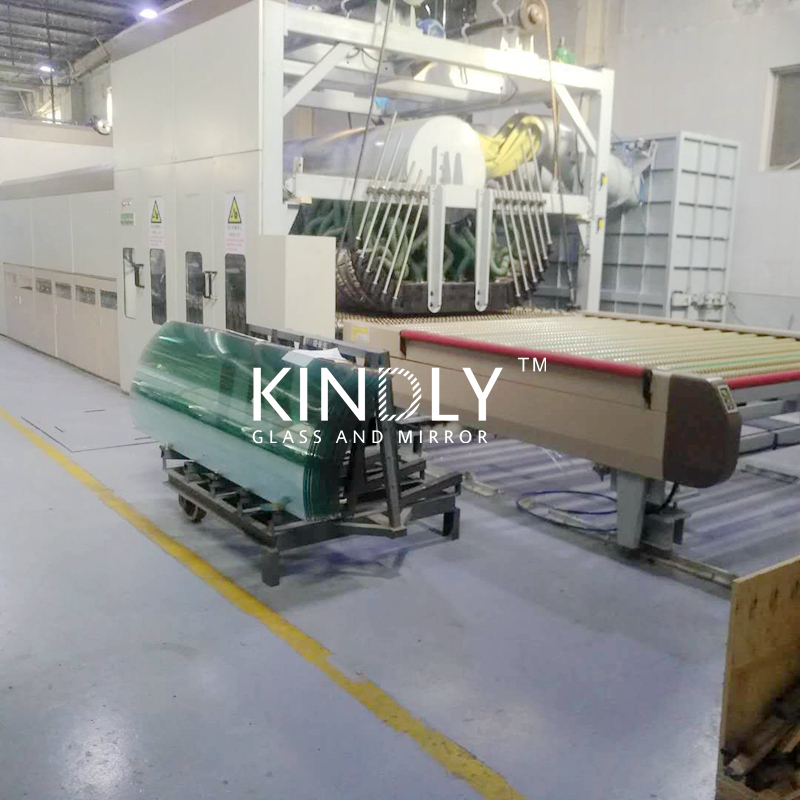

Bent tempered glass refers to toughened glass with curved surface. It is the same as the production process of non curved tempered glass, but the difference is to increase the glass forming process. The forming process of bent steel glass includes bending and hot bending. Bending is to press the hot glass into a certain shape by pressing film. Hot bending is to heat the glass to softening temperature to the bending die by its own weight, or to close to the air cushion heating furnace for forming. The hot bending has the following forms: ① molding, making male mold and female mold according to the shape required by the curved surface, wrapping the mold surface with glass fiber cloth, and pressing the thermoplastic glass together, which is commonly used in the production of hanging plate; ② sink type, in the heating room, the thermoplastic glass is bent under its own weight and falls on the curved mold; ③ flexible bending roller type, which flexes according to the required curved surface The plastic roll is bent into the required shape, and the thermoplastic glass sinks on the curved roll by its weight. It can only produce toughened glass with single curved surface.

Tempered / Toughened Safety Glass Processed Specification

1.3D shape: C standard curved, multi-radius curved,moulded processed and J curved.

2. Flat shape: circular / triangle / square / rectangular / diamond / cylindrical / Pentagon / ladder / parallelogram / hexagon heptagon octagon / eight / nine / ten edge edge / irregular graphics / oval.

3. Edge work:flat, pencil, bevel, ogee, waterfall ,convex edge.

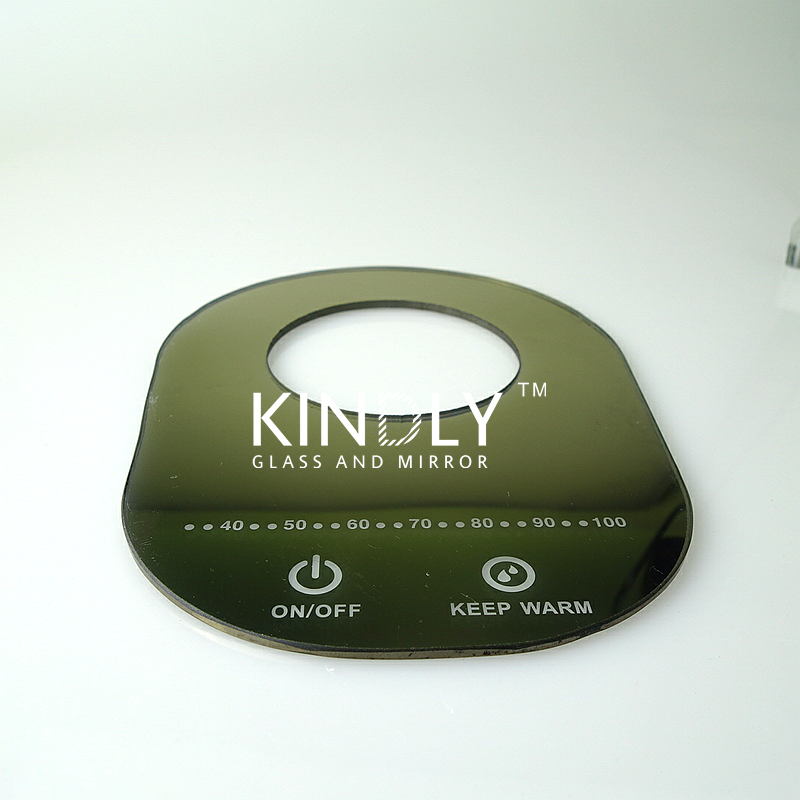

4. Surface:acid etched, ink printing, coated, lacquered, painted, mechanical grooving,preventing water spots, laser engraved,etc.

5. Corner work:fillet, chamfer,etc.

6. Cutout work:hole, notch, shape cutout,etc.

7. Glass color:clear, ultra clear, bronze, green, pink, grey, blue,etc.

8. J curved data: 450 x ⌒450mm to 2000x ⌒900mm fit for 5-8mm glass.   Rmin：450mm, Rmax:10000mm.

Kindly Products Protection Packing

Interlayer Protection

Corner Packing

Edge Packing

Inner Packing

Outer Packing

LCL Packing

Anti-Fungicide Paper

Right Angle Plastic Corner

EPS Side Fender

Paper Wrap

Plywood Crate

Case Min.Width > 650mm   Max.Length <1500mm    Max. Height < 1200mm

Anti-Fungicide Powder

Plump Plastic Corner

　

Single-layer Paperboard

Plywood Case

Case + L Rack with Four-sided Forklift

EPE Film

Paperboard Corner

　

Double-layer Paperboard

Plywood Pallet Crate

A-type Case

Cork Mat

EPS Corner

　

Carton

Nude Packing + A Rack

Pallet Case

EPS Board

　

　

PVC,EPE Shrink Film

　

　
