Description

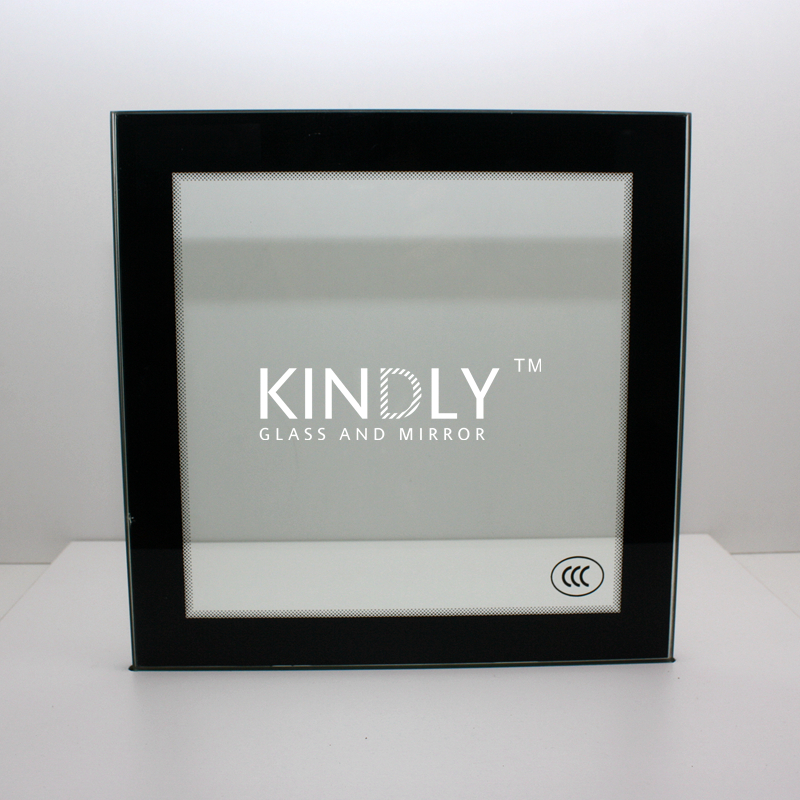

Ceramic glazed glass is also called silk screen printed glass, to print inorganic glaze (also known as ink) on the glass surface, then dry, temper or heat treatment, and permanently sinter the glaze on the glass surface to obtain a wear-resistant, acid and alkali resistant glass. Decorative glass products. This product is highly functional and decorative. It comes in many different colors and patterns, such as striped, mesh, and electric patterns, to name a few. Patterns can also be designed according to different needs of customers.



Production Process

The sintering of glass glaze is also called baking, and it is generally carried out in a baking furnace. The key to the sintering of glass glaze is to control the sintering temperature. Color glaze printing ink is formulated with oily solvent and alkyd resin, and the firing in the furnace will go through the following stages:

The first stage: from room temperature to 120 ℃, preheating, no change in ink;

The second stage: from 120° to 250°C, light oil evaporates and gasifies;

The third stage: From 250°~500°C, heavy oil and resin are burned and gasified;

The fourth stage: from 500°~580°C, the glass powder in the colored glaze begins to melt, and the surface of the substrate glass is also slightly softened;

The fifth stage: from 580° to 620°C, the glass glaze powder is completely melted, and the external pigment powder is also melted into it. At this time, the surface of the glass body is also completely softened, and the glaze is combined with the glass to complete the transfer and sintering of the glaze. Then slowly lower to room temperature.



Features

1. Cheaper and easier to install than other materials such as brick, stone or wood.

2. Various colors and patterns (generally can be customized according to customer requirements), with a wide range of choices. In the curtain wall combination, it can contrast other glass or carry out color matching.

3. The glazed glass can be installed on the supporting structure.

4. Non-absorbent, non-permeable and easy to clean.

5. The color glaze is an inorganic color glaze of the same glass material, which does not fade or peel off, so the original color tone is consistent with the life of the building.

6. The color glaze is easy to accept the non-hard glue used to isolate the spandrel back.

7. The glazed surface can absorb and reflect part of the solar heat, which has the effect of saving energy.

8. Composite processing such as coating, interlayer, and composite hollowing can be carried out to obtain special properties for other purposes.

9. After tempering, the final product has good mechanical properties, impact resistance and thermal shock resistance, and has higher safety performance.

10. Save energy, and the sunshade effect is obvious.

11. Anti-glare. Due to the orderly partial printing of the patterned colored glaze glass, it can reduce the glare of the glass, and at the same time, it has an obvious mitigation effect on the sun and direct sunlight.



Main application

Building exterior wall glass, building lighting ceiling, interior decoration partition and other glass products, such as gas stove glass countertops, furniture glass, wall decoration,table top,etc. The products are widely used in the architectural decoration industry, furniture glass, electronic product glass, etc.; at the same time, they can be combined with other glass products to form a variety of products, such as building exterior walls, interior decoration partitions, building lighting ceilings, etc.
