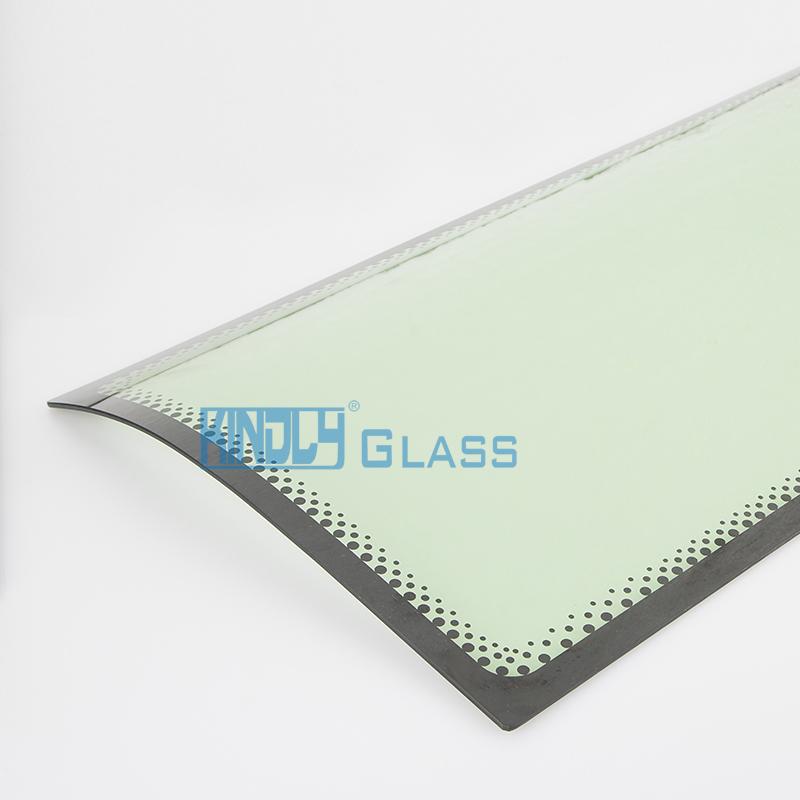

Double Curvature Radius Tempered glass，China Double Curvature Radius Tempered glass manufacturer and supplier

Tempered glass

is two or more times stronger than annealed glass. When broken, it shatters into many small fragments which prevent major injuries. This type of glass is intended for glass façades, sliding doors, building entrances, bath and shower enclosures and other uses requiring superior strength and safety properties.

Production: There are two different methods used to produce tempered glass:

Heat treating: Where the annealed glass is subjected to a special heat-treatment in which it is heated to about 680°C and afterwards cooled. If it is cooled rapidly, the glass is up to four times stronger then annealed glass and its breaks into many small fragments (fully-tempered). If it is cooled slowly, the glass is twice as strong as annealed glass and the fragments of the broken glass are linear and more likely to remain in the frame.

Chemical Strengthening: The glass is covered by a chemical solution which produces a higher mechanical resistance. Chemically-strengthened glass has similar properties to thermal-treated glass. The product is not generally used for window glass, but more commonly seen in industries where thin, strong glass is needed.

Applications:

1. Building:Glass Curtain Wall,Windows and Doors, Roof, Office Partition,etc.

2. Home Deco:Bathroom Glass,Table Glass,Glass Shelf,Splash Proof Kitchen Glass,Kitchen Cutting Board, Writing

Board,Swimming Pool Glass,Railing Glass,etc.

3. Solar Photovoltaic:Ultra Clear Prismatic Cover Glass

4. Aerospace Field:Air Craft Windshield Glass.

5. Ships: Cabin and Yacht Glass.

6. Optics:Laboratory Instrument Glass.

7. Automobile and Rail Transit:Windscreen, Platform Screen Glass.

Solar Photovoltaic Glass Features:

1. Low iron content (< 120ppm);

2. AR methodology

3. High transmittance rate (>91%);

4. Fully tempered

5. Prismatic pattern

Tempered glass process instruction:

Thickness	Available Color	Flat Tempered		Curved Tempered			Other Curved Solution	Edge Work	Corner & Processing	Subsequent Process
Thickness	Available Color	Min.Size	Max.Size	Min.Size	Max.Size	Min.Radius	Other Curved Solution	Edge Work	Corner & Processing	Subsequent Process
2	Clear	10 x 10mm	1000 x 1000mm	/	/	/	Hot Bending	Flat ,Pencil	Fillets,Chamfers,Cutouts,Notches, Holes,Engrave	Laminated , Silk-Screen, Lacquered
3-3.7	Clear,LowE,Bronze,Blue,Green	10 x 10mm	1000 x 2000mm	/	/	/	Hot Bending	Flat ,Pencil		Laminated, Insulated, Silk-Screen, Lacquered
4,5,6,8,10,12	Clear,LowE,Bronze,Blue,Green,Grey,Pink tinted and reflective glass, Patterned Glass(4,5,6,8mm)	10 x 10mm	（2430-3290）x （3660- 6500）mm	500 x 500mm	2440 x 4800mm	450mm / Double,Multi-Curved	Hot Bending	Flat,Pencil, Bevel,Ogee,Waterfall, Convex		Laminated, Insulated, Silk-Screen, Lacquered
15,19	Clear, Soft LowE	25 x 25mm	3290 x 15000mm	500 x 500mm	2440 x 4800mm	1500mm / Double,Multi-Curved	Hot Bending	Flat,Pencil, Bevel,Ogee,Waterfall, Convex		Laminated, Insulated, Silk-Screen, Lacquered
22,25	Clear	50 x 50mm	3290 x 15000mm	500 x 500mm	2440 x 4800mm	1500mm / Double,Multi-Curved	Hot Bending	Flat,Pencil, Bevel,Ogee,Waterfall, Convex		Laminated, Insulated, Silk-Screen, Lacquered

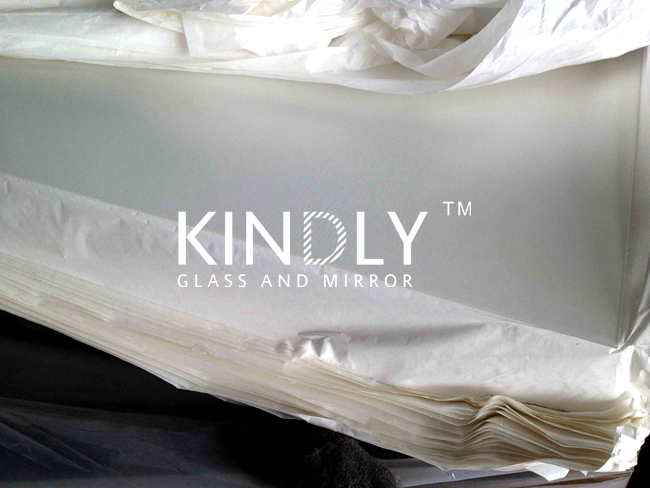

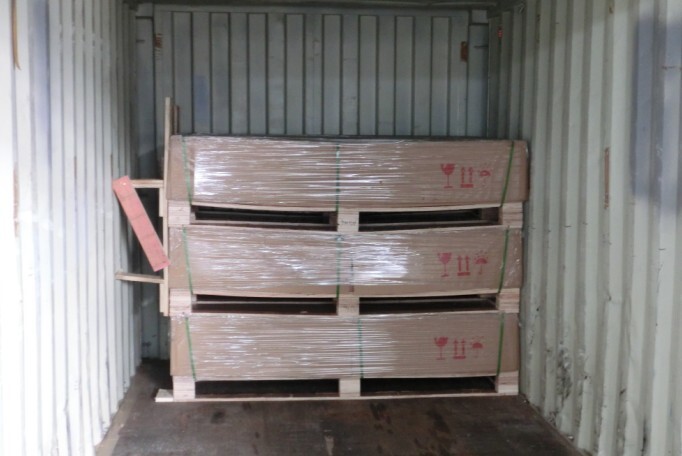

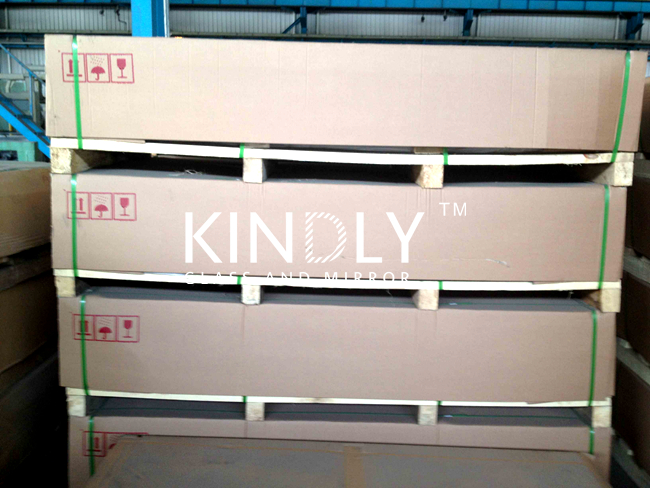

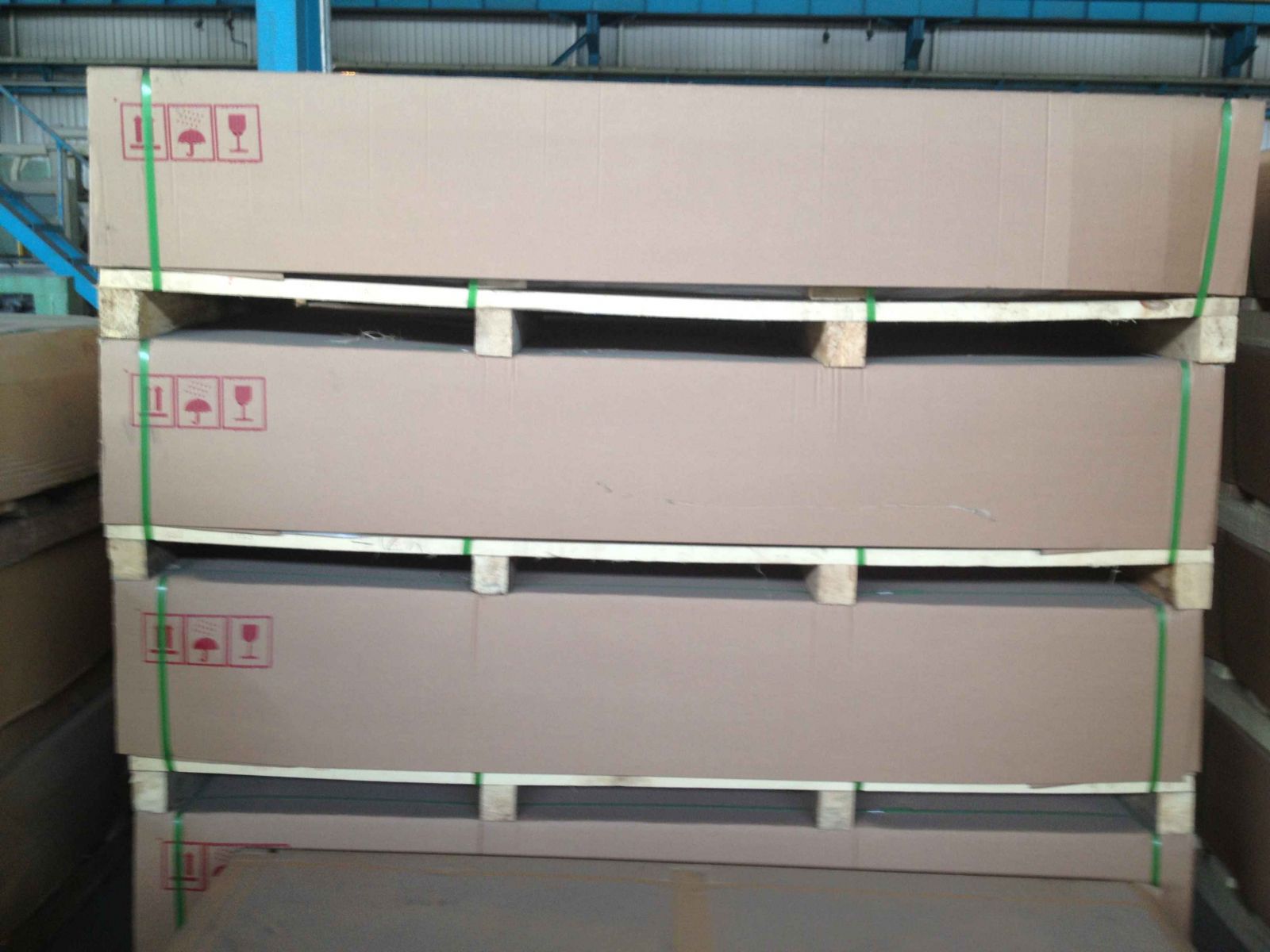

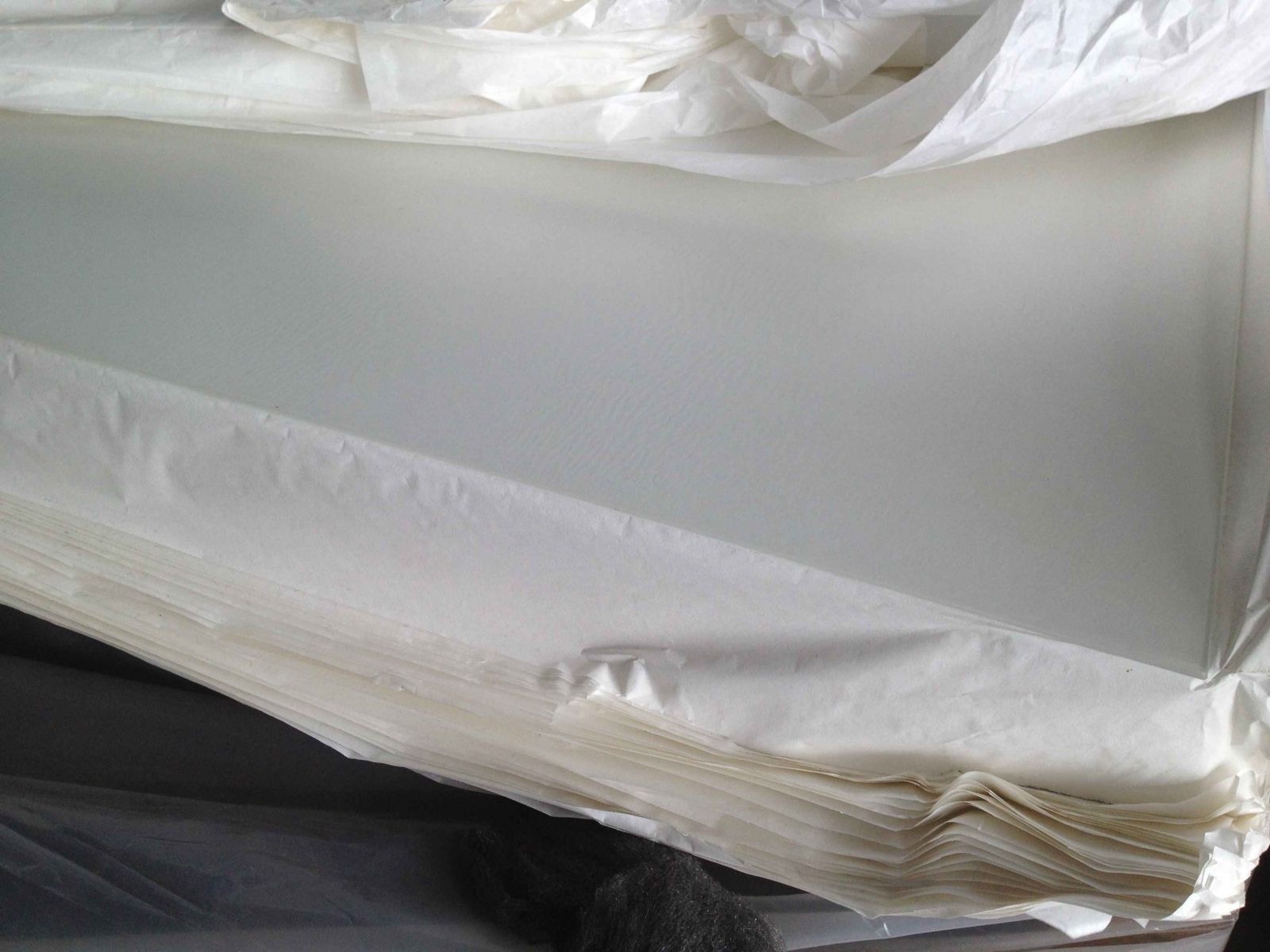

Tempered glass packing details:

Interlayer Protection	Corner Packing	Edge Packing	Inner Packing	Outer Packing	LCL Packing
Anti-Fngicide Paper	Right Angle Plastic Corner	EPS Side Fender	Paper Wrap	Plywood Crate	Case Min.Width > 650mm Max.Length <1500mm Max. Height < 1200mm
Anti-Fngicide Powder	Plump Plastic Corner		Single-layer Paperboard	Plywood Case	Case + L Rack with Four-sided Forklift
EPE Film	Paperboard Corner		Double-layer Paperboard	Plywood Pallet Crate	A-type Case
Cork Mat	EPS Corner		Carton	Nude Packing + A Rack	Pallet Case
EPS Board			PVC,EPE Shrink Film

Type	Solar Photovoltaic Glass
Thickness	3.2 and 4mm
Other Colors	Ultra Clear and clear.
Standard Size	986x1944mm 986x1634mm 986x1470mm 670x1470mm 670x1154mm Tailor Size
Incoterms	EXW,FOB,CFR,CIF,CIP,DDU,DDP.
Lead time	About 20 days upon receipt of your deposit or confirmation.
MOQ	100 Sqm.
Package	Paper interlayer between two glass panels and plywood pallets with straps.
Payment Terms	T/T, L/C, D/P, Western Union,Paypal.
Place of origin	CHINA

Type	Solar Photovoltaic Glass
Thickness	3.2 and 4mm
Other Colors	Ultra Clear and clear.
Standard Size	986x1944mm 986x1634mm 986x1470mm 670x1470mm 670x1154mm Tailor Size
Incoterms	EXW,FOB,CFR,CIF,CIP,DDU,DDP.
Lead time	About 20 days upon receipt of your deposit or confirmation.
MOQ	100 Sqm.
Package	Paper interlayer between two glass panels and plywood pallets with straps.
Payment Terms	T/T, L/C, D/P, Western Union,Paypal.
Place of origin	CHINA
