Gel filled fire proof glass

Gel filled fire proof glass Gel filled fire proof glass Gel filled fire proof glass Gel filled fire proof glass
Type Gel Fireproof Glass
Thickness 35,28,20mm
Standard Size 1830*2440mm
Jumbo Size 1830*2440mm
Incoterms EXW,FOB,CFR,CIF,CIP,DDU,DDP.
Lead time About 20 days upon receipt of your deposit or confirmation.
MOQ 100 Sqm.
Package Paper or powder interlayer between two glass panels and plywood crates with straps.
Payment Terms T/T, L/C, D/P, Western Union,Paypal.
Place of origin CHINA


Type Gel Fireproof Glass
Thickness 35,28,20mm
Standard Size 1830*2440mm
Jumbo Size 1830*2440mm
Incoterms EXW,FOB,CFR,CIF,CIP,DDU,DDP.
Lead time About 20 days upon receipt of your deposit or confirmation.
MOQ 100 Sqm.
Package Paper or powder interlayer between two glass panels and plywood crates with straps.
Payment Terms T/T, L/C, D/P, Western Union,Paypal.
Place of origin CHINA

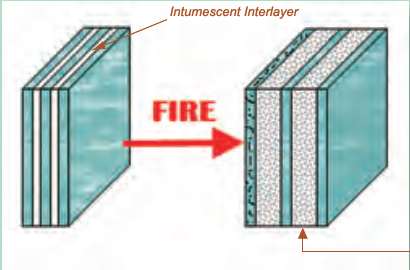

Gel-filled insulated fire resistant glass

It is composed by two layers or more glass through compounding, in the middle of the two layers glass filled with salt based fire resistant gel, it is a special kind of glass that can be satisfied the requirement of corresponding fire resistance level. As using advanced Nanotechnology for production, the fire glass became cut able.

Different from other fire resistant glass in the market, Our fire resistant glass can pass through more than 5 years UV and visible light test, NO milky color or gas bubbles were observed in 5 years. (Quality guarantee period of three years), and can be cut by Water Jet(China's exclusive technology now).

Glass features:

1. Integrity and Insulation Glass.

2. Clear glass with no distortion of free vision.

3. Sound reduction property.

4. UV Filter glazed property, suitable for usr in both internal and external applications.

5. Life-long stable performance property.

6. "Class A" Safety Glass property in BS6206.

7. Pigmented or Patterned to give natural color selection.

8. Can be cut by Water Jet.

Outer glass selection:

1. Transparent glass.
2. Tinted glass, such as green or blue etc.
3. Frosted glass.
4. Tempered glass.

Productive size range:

Max size : 2440mm x 1830mm

Min size: 100mm x 100mm

Name Item Fire Resistant(min) Thickness (mm) Fireproof-Grade VT (%) Weight kg/sqm Thickness Tolerance (mm) Size Tolerance (mm) Suggested size
Integrity Insulation
Fireproof glass A Grade AG-35 90 90 35 A-I 82 65 ±1.5 ±4 <1.5sqm
AG-28 60 60 28 A-II 85 50 ±1.5 ±4 <1.5sqm
AG-20 30 30 20 A-IV 988 40 ±1.3 ±3 <2.0sqm
Packing: Paper or powder interlayer between two glass panels and plywood crates or wooden crates with straps.

Crates type including  open crates, end cap, common frame as following:
