INSULATED GLASS

INSULATED GLASS INSULATED GLASS INSULATED GLASS INSULATED GLASS
Type High Transparency
Thickness IG Thickness
3/8”（6mm), 1/2”(12mm), 3/4″(19mm), 13/16″(20mm), 7/8″(22mm), 15/16”(24mm), 1″(25mm)
Other Colors Single Glass Type Can Be
Clear Glass
(3mm – 1/8“, 4mm – 5/32”, 5mm – 3/16”, 6mm - 1/4”)
Hard Coated / Soft Coated Low-E Glass
(3mm – 1/8“, 4mm – 5/32”, 5mm – 3/16”, 6mm - 1/4”)
Bronze,Grey,Blue,Green Tinted Glass
(4mm – 5/32”, 5mm – 3/16”, 6mm - 1/4”)
Bronze,Grey,Blue,Green Solar Control Glass
(4mm – 5/32”, 5mm – 3/16”, 6mm - 1/4”)
Laminated Glass
(33.1mm,44.2mm,55.2mm )
Acid Etched Glass
(3mm – 1/8“, 4mm – 5/32”, 5mm – 3/16”, 6mm - 1/4”)
Glazed Glass
(4mm – 5/32”, 5mm – 3/16”, 6mm - 1/4”)
Fire-resistance Glass
(4mm – 5/32”, 5mm – 3/16”, 6mm - 1/4”, 8mm - 5/16”)
Standard Size Min.:300x300mm
Max.:2500x6000mm
Incoterms EXW,FOB,CFR,CIF,CIP,DDU,DDP.
Lead time About 20 days upon receipt of your deposit or confirmation.
MOQ 100 Sqm.
Package Paper or powder interlayer between two glass panels and plywood crates with straps.
Payment Terms T/T, L/C, D/P, Western Union,Paypal.
Place of origin CHINA


Type High Transparency
Thickness IG Thickness
3/8”（6mm), 1/2”(12mm), 3/4″(19mm), 13/16″(20mm), 7/8″(22mm), 15/16”(24mm), 1″(25mm)
Other Colors Single Glass Type Can Be
Clear Glass
(3mm – 1/8“, 4mm – 5/32”, 5mm – 3/16”, 6mm - 1/4”)
Hard Coated / Soft Coated Low-E Glass
(3mm – 1/8“, 4mm – 5/32”, 5mm – 3/16”, 6mm - 1/4”)
Bronze,Grey,Blue,Green Tinted Glass
(4mm – 5/32”, 5mm – 3/16”, 6mm - 1/4”)
Bronze,Grey,Blue,Green Solar Control Glass
(4mm – 5/32”, 5mm – 3/16”, 6mm - 1/4”)
Laminated Glass
(33.1mm,44.2mm,55.2mm )
Acid Etched Glass
(3mm – 1/8“, 4mm – 5/32”, 5mm – 3/16”, 6mm - 1/4”)
Glazed Glass
(4mm – 5/32”, 5mm – 3/16”, 6mm - 1/4”)
Fire-resistance Glass
(4mm – 5/32”, 5mm – 3/16”, 6mm - 1/4”, 8mm - 5/16”)
Standard Size Min.:300x300mm
Max.:2500x6000mm
Incoterms EXW,FOB,CFR,CIF,CIP,DDU,DDP.
Lead time About 20 days upon receipt of your deposit or confirmation.
MOQ 100 Sqm.
Package Paper or powder interlayer between two glass panels and plywood crates with straps.
Payment Terms T/T, L/C, D/P, Western Union,Paypal.
Place of origin CHINA

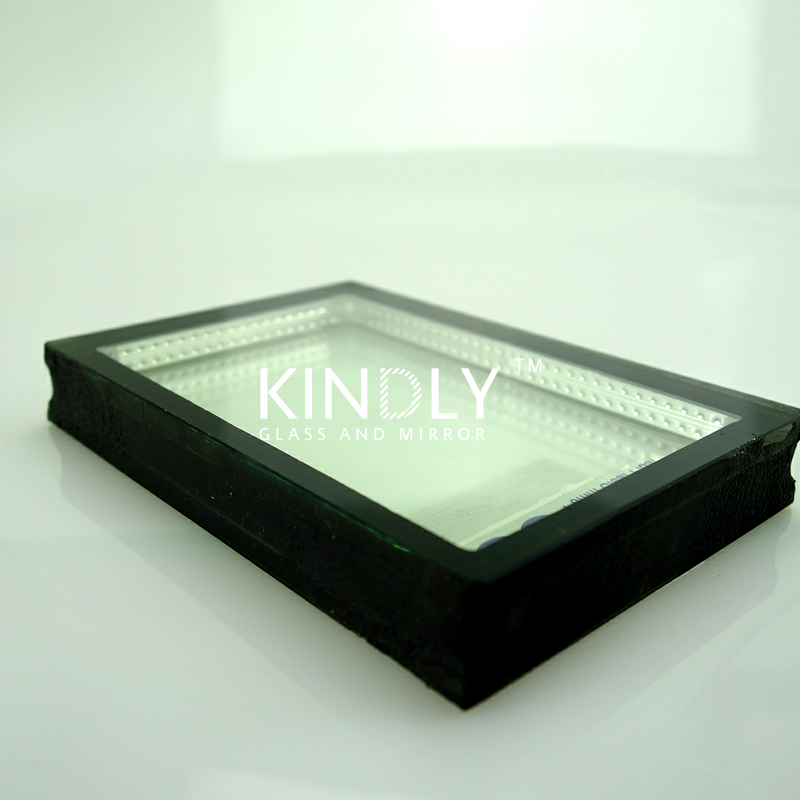

Insulated glass (IG), more commonly known as double glazing (or double-pane glass), consists of two or more glass window

panes separated by a air or gas-filled space to reduce heat transfer across a part of the building envelope. We carry residential and commercial insulated glass, that are sometimes called thermo panes.



 Insulated Glass Structure

Double-pane insulated glass

Triple-pane insulated glass

Quadruple-pane insulated glass



Spacer Finish
Aluminum and Plastic in Black, White and Grey color,etc.
TPS, Butyl Spacer,Super Spacer.

Decorative Grid
2 x 2, 2 x 3, 2 x 4, 2 x 5, 2 x 6, and more custom options.

Sealant Type
*Butyl
*Butyl + Silicone
*Polyurethane hot melt sealant
*TPS（Thermo Plastic Spacer)
IGU Benefits:
1.GREATER ENERGY EFFICIENCY AND COMFORT IN DIFFERENT CLIMATE
Warm in winter and cool in summer.
Double Glazing noticeably reduces the costs of heating or cooling and does not contribute to greenhouse gases.
Double Glazing improves the Energy Rating your home receives.
Gains of more than 50 percent of insulation can be had.
Hi-transmission in low reflection and Lo-transmission in low reflection to reduce light pollution.
2. LESS NOISE TRANSMISSION TO KEEP QUIET
Greatly reduce the level of noise getting into your home with IGU.
Choose special glass designs and types such as acoustic laminated glass IGU to get even less noise transmission.
3. REDUCE OR ELIMINATE YOUR NEED FOR WINDOW COVERINGS TO KEEP YOUR PRIVACY
You can use a lightweight or less expensive curtain set to cover your windows or doors wherever you need privacy.
You can use inlaid louver IGU or glazed/acid designs to keep your own privacy space.
4. REDUCE CONDENSATION
Problems with condensation exist in many homes, especially during the winter. Interior condensation is the result of humid warm air condensing on the cold surface of a single pane of glass. Double glazing stops this problem even in bathrooms.
A typical cause of wood windows deteriorating is internal condensation. Double Glazing eliminates this condensation problem and will allow you to get more life from your windows.
5. MUCH MORE SAFER
They are much more safer than other types of glass and do not shatter if they break.
Choose tempered glass, laminated glass, fire resistance glass to increase the safety of your home.

6. INCREASED SECURITY
Using thicker, safety glass with the help of double glazed items in your home makes it safer and more secure.
or greater security, use bullet proof glass or wire laminated glass in tandem with your double-glazed windows and doors.

IGU Applications:
1.Building curtain wall
2.Windows and doors
3.Conveyance: Subway, Trains, Ships and Aircraft,etc.
4.Appliance: Ice locker, refrigerator,etc.
5.View glass floor
6.Special necessary place.
Comparison of the use of IGU in the different climate zones
Zones LowE             Type IGU          Structure Visible Light Solar Energy U Value    W/㎡·K SHGC SC
Trans. % Trans. %
Bitter Cold High    Transparency 6 Clear + 12A + 6 Clear 80 67 2.7 0.74  0.85
6 Clear + 12A + 6 Clear LowE 75 57 1.9 0.70  0.80
6 Clear LowE + 12A + 6 Clear LowE 70 50 1.7 0.62  0.70
6 Ultra Clear + 12A + 6 Ultra Clear LowE 77 74 1.9 0.77  0.88
6 Ultra Clear LowE+ 12A + 6 Ultra Clear LowE 73 70 1.7 0.73  0.84
Hot Summer & Cold Winter Adjustable   Shading 6 Blue Grey Tinted + 12A + 6 Clear LowE 35 32 1.9 0.44  0.50
6 Euro Grey Tinted + 12A + 6 Clear LowE 35 30 1.9 0.42  0.49
6 Euro Bronze Tinted + 12A + 6 Clear LowE 32 33 1.9 0.44  0.51
6 Golden Bronze Tinted + 12A + 6 Clear LowE 32 28 1.9 0.40  0.46
Cold High Solar Shading 6 Blue Grey Ref. + 12A + 6 Clear  24 26 2.7 0.36  0.42
6 Blue Grey Ref. + 12A + 6 Clear LowE 23 23 1.9 0.32  0.37
