LowE IGU

LowE IGU LowE IGU LowE IGU LowE IGU
Type Double Silver LowE
Thickness IG Thickness
3/8”（6mm), 1/2”(12mm), 3/4″(19mm), 13/16″(20mm), 7/8″(22mm), 15/16”(24mm), 1″(25mm)
Other Colors Single Glass Type Can Be
Clear Glass
(3mm – 1/8“, 4mm – 5/32”, 5mm – 3/16”, 6mm - 1/4”)
Hard Coated / Soft Coated Low-E Glass
(3mm – 1/8“, 4mm – 5/32”, 5mm – 3/16”, 6mm - 1/4”)
Bronze,Grey,Blue,Green Tinted Glass
(4mm – 5/32”, 5mm – 3/16”, 6mm - 1/4”)
Bronze,Grey,Blue,Green Solar Control Glass
(4mm – 5/32”, 5mm – 3/16”, 6mm - 1/4”)
Laminated Glass
(33.1mm,44.2mm,55.2mm )
Acid Etched Glass
(3mm – 1/8“, 4mm – 5/32”, 5mm – 3/16”, 6mm - 1/4”)
Glazed Glass
(4mm – 5/32”, 5mm – 3/16”, 6mm - 1/4”)
Fire-resistance Glass
(4mm – 5/32”, 5mm – 3/16”, 6mm - 1/4”, 8mm - 5/16”)
Standard Size Min.:300x300mm
Max.:2500x6000mm
Incoterms EXW,FOB,CFR,CIF,CIP,DDU,DDP.
Lead time About 20 days upon receipt of your deposit or confirmation.
MOQ 100 Sqm.

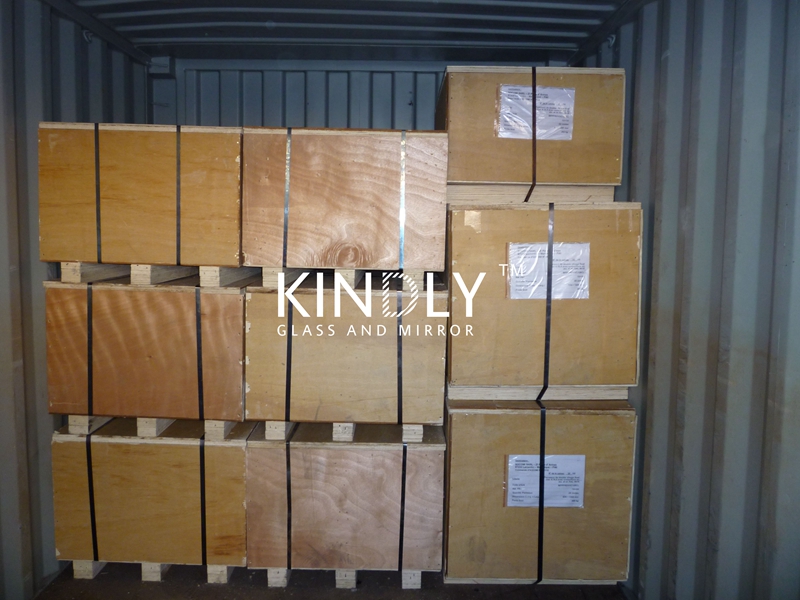

Package Cork pad interlayer and standard plywood pallet crates.
Payment Terms T/T, L/C, D/P, Western Union,Paypal.
Place of origin CHINA


Type Double Silver LowE
Thickness IG Thickness
3/8”（6mm), 1/2”(12mm), 3/4″(19mm), 13/16″(20mm), 7/8″(22mm), 15/16”(24mm), 1″(25mm)
Other Colors Single Glass Type Can Be
Clear Glass
(3mm – 1/8“, 4mm – 5/32”, 5mm – 3/16”, 6mm - 1/4”)
Hard Coated / Soft Coated Low-E Glass
(3mm – 1/8“, 4mm – 5/32”, 5mm – 3/16”, 6mm - 1/4”)
Bronze,Grey,Blue,Green Tinted Glass
(4mm – 5/32”, 5mm – 3/16”, 6mm - 1/4”)
Bronze,Grey,Blue,Green Solar Control Glass
(4mm – 5/32”, 5mm – 3/16”, 6mm - 1/4”)
Laminated Glass
(33.1mm,44.2mm,55.2mm )
Acid Etched Glass
(3mm – 1/8“, 4mm – 5/32”, 5mm – 3/16”, 6mm - 1/4”)
Glazed Glass
(4mm – 5/32”, 5mm – 3/16”, 6mm - 1/4”)
Fire-resistance Glass
(4mm – 5/32”, 5mm – 3/16”, 6mm - 1/4”, 8mm - 5/16”)
Standard Size Min.:300x300mm
Max.:2500x6000mm
Incoterms EXW,FOB,CFR,CIF,CIP,DDU,DDP.
Lead time About 20 days upon receipt of your deposit or confirmation.
MOQ 100 Sqm.
Package Cork pad interlayer and standard plywood pallet crates.
Payment Terms T/T, L/C, D/P, Western Union,Paypal.
Place of origin CHINA

Insulated glass (IG), more commonly known as double glazing (or double-pane glass), consists of two or more glass window

panes separated by a air or gas-filled space to reduce heat transfer across a part of the building envelope. We carry residential and commercial insulated glass, that are sometimes called thermo panes.



 Insulated Glass Structure

Double-pane insulated glass

Triple-pane insulated glass

Quadruple-pane insulated glass



Spacer Finish
Aluminum and Plastic in Black, White and Grey color,etc.
TPS, Butyl Spacer,Super Spacer.

Decorative Grid
2 x 2, 2 x 3, 2 x 4, 2 x 5, 2 x 6, and more custom options.

Sealant Type
*Butyl
*Butyl + Silicone
*Polyurethane hot melt sealant
*TPS（Thermo Plastic Spacer)
