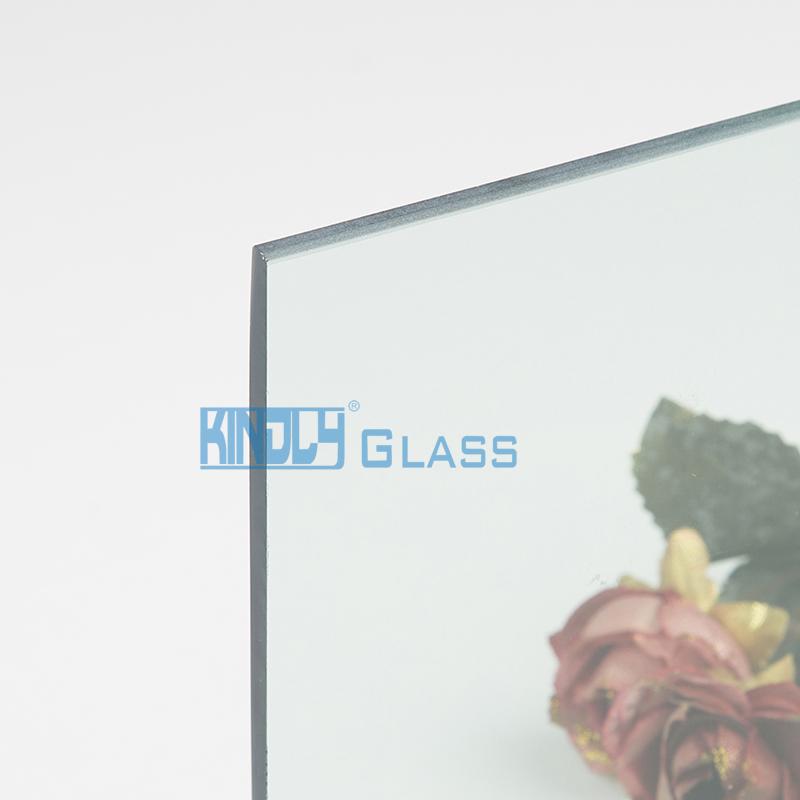

SFC Hard Coated LowE Glass

SFC Hard Coated LowE Glass SFC Hard Coated LowE Glass SFC Hard Coated LowE Glass SFC Hard Coated LowE Glass
Type High Solar Shading
Thickness 3,4,5,5.5,6,8,10,12mm
Other Colors Light Green
Standard Size 1650 x 2440, 1830 x 2440, 1650 x 2140, 2140 x 3300/3660, 2250 x 3300/3660, 2440 x 3300/3660
Incoterms EXW,FOB,CFR,CIF,CIP,DDU,DDP.
Lead time About 20 days upon receipt of your deposit or confirmation.
MOQ 100 Sqm.
Package Paper or powder interlayer between two glass panels and plywood crates with straps.
Payment Terms T/T, L/C, D/P, Western Union,Paypal.
Place of origin CHINA


Type High Solar Shading
Thickness 3,4,5,5.5,6,8,10,12mm
Other Colors Light Green
Standard Size 1650 x 2440, 1830 x 2440, 1650 x 2140, 2140 x 3300/3660, 2250 x 3300/3660, 2440 x 3300/3660
Incoterms EXW,FOB,CFR,CIF,CIP,DDU,DDP.
Lead time About 20 days upon receipt of your deposit or confirmation.
MOQ 100 Sqm.
Package Paper or powder interlayer between two glass panels and plywood crates with straps.
Payment Terms T/T, L/C, D/P, Western Union,Paypal.
Place of origin CHINA

SYP Solar-F Cool Glass ( Sfc )

Solar-f cool(sfc) is a high shading coefficient, on-line energy saving glass introduced by shanghai yaohua pilkington glass

group co., ltd. from pilkington uk - the world's top glass manufacturing group. based on the innovative coating technology

of pilkington uk, syp has not only adopted the methodology but also independently researched and developed sfc - on line

coated glass products with a new type of high light transparency and a regulated sunshade effect. the sfc range of

products will result in energy saving by reducing carbon dioxide emissions from both architectural and automotive markets.

sfc is suitable to use as curtain wall glass, doors and windows glass, auto-glass and other applications. sfc has a very

high level of uv absorption and low-e performance, a very elegant green color and an excellent sunshade function.

SFC  Hard Coated LowE Glass Parameter
Monolithic Thinckness mm Visible Light Solar Energy U Value W/·k SHGC SC
Transmittance Reflectance Transmittance Reflectance Winter U Value Summer U Value Euro EN673
Outside Inside
Solar-F Cool 3.5 75 10 11 47 30 3.68 2.8 3.7 0.55 0.63
Solar-F Cool 5 71 9 11 40 7 3.75 2.91 3.7 0.5 0.58
Solar-F Cool 6 68 9 11 36 7 3.72 2.87 3.7 0.47 0.54

3.5Clear

+0.76PVB+

3.5SFC

7.76 73 10 11 42 1 3.56 2.73 3.6 0.52 0.6

5 SFC 2#

+ 12Air +

 5  Clear

22 64 14 17 35 9 1.94 1.96 1.9 0.43 0.49

6 SFC 2#

 + 12Air +

6 Clear

24 61 13 17 31 8 1.92 1.95 1.9 0.39 0.45
All performance values are center-of-glass values calculated using the LBNL Window 6.3 program for your reference only.
Packing: Paper or powder interlayer between two glass panels and plywood crates or wooden crates with straps.

Crates type including  open crates, end cap, common frame as following:
