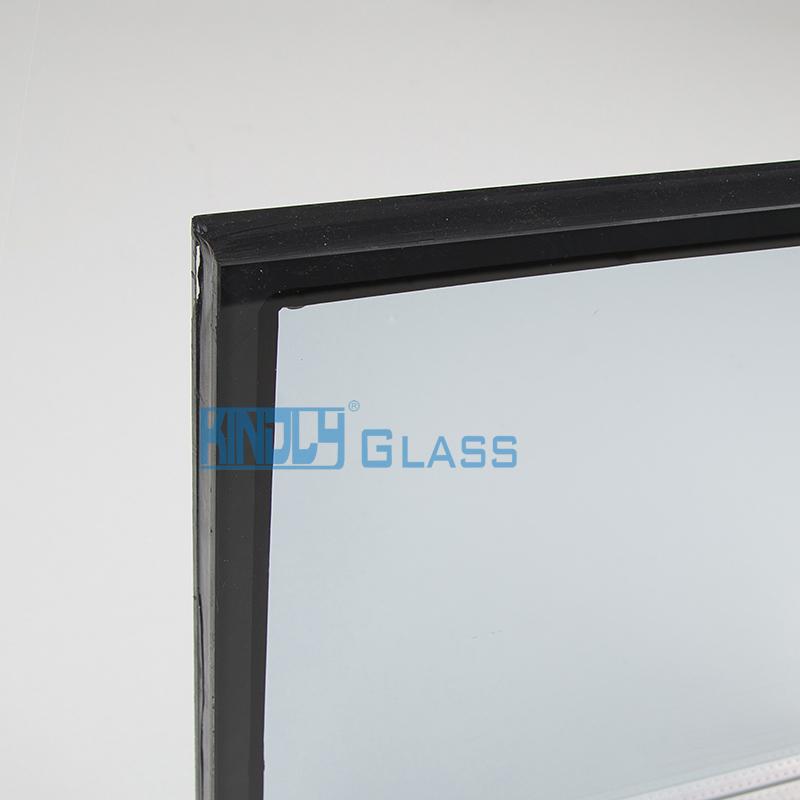

SY 48 LowE Insulated Glass Unit

SY 48 LowE Insulated Glass Unit SY 48 LowE Insulated Glass Unit SY 48 LowE Insulated Glass Unit SY 48 LowE Insulated Glass Unit
Type High Solar Shading
Thickness 3mm + 6A + 3mm / 4mm + 8A + 4mm
5mm + 9A + 5mm / 6mm + 12A + 6mm
8mm + 15A + 8mm / 17.52mm + 20A + 8mm
17.52mm + 25A + 12mm
Glass Thickness Matched with Different Air Space as Requested.
Other Colors Clear
Silver & Gold
French Green & Dark Green
Euro Grey,Dark Grey & Black
Eruo Bronze, Golden Bronze & Pink
Double Silver LowE & Triple Silver LowE
Standard Size Customerized
Min.Size:200 x 200mm
Max.Size:2500 x 5000mm
Incoterms EXW,FOB,CFR,CIF,CIP,DDU,DDP.
Lead time About 20 days upon receipt of your deposit or confirmation.
MOQ 100 Sqm.
Package Paper or powder interlayer between two glass panels and plywood crates with straps.
Payment Terms T/T, L/C, D/P, Western Union,Paypal.
Place of origin CHINA


Type High Solar Shading
Thickness 3mm + 6A + 3mm / 4mm + 8A + 4mm
5mm + 9A + 5mm / 6mm + 12A + 6mm
8mm + 15A + 8mm / 17.52mm + 20A + 8mm
17.52mm + 25A + 12mm
Glass Thickness Matched with Different Air Space as Requested.
Other Colors Clear
Silver & Gold
French Green & Dark Green
Euro Grey,Dark Grey & Black
Eruo Bronze, Golden Bronze & Pink
Double Silver LowE & Triple Silver LowE
Standard Size Customerized
Min.Size:200 x 200mm
Max.Size:2500 x 5000mm
Incoterms EXW,FOB,CFR,CIF,CIP,DDU,DDP.
Lead time About 20 days upon receipt of your deposit or confirmation.
MOQ 100 Sqm.
Package Paper or powder interlayer between two glass panels and plywood crates with straps.
Payment Terms T/T, L/C, D/P, Western Union,Paypal.
Place of origin CHINA

Insulated glass unit is a multi-glass combination consisting of two or more panes enclosing a hermetically-sealed air space. The most important function of insulation glass is to reduce thermal losses, which offers many advantages: lower energy consumption, perfect transparency by reducing the incidence of condensation on the warm air side and the possibility of using larger glazed areas without increasing energy consumption.

Production
Insulating glass is a glazed unit composed of two or more glass panes separated by spacers filled with dehydrated air or gas. The sheets are connected by a spacer, using sealants to reduce water vapor penetration. The whole unit is hermetically assembled by a secondary edge seal which gives structural robustness to the insulating glass. The spacer contains a desiccant which absorbs humidity from within the air space. The insulating glass unit (IGU) is made manually or with an automatic plant.

Each glass pane has two surfaces, so typical double-paned IGUs have four surfaces.

SY-48  Hard Coated LowE Glass Parameter
Structure Light Properties Thermal Properties U-Value
  Thickness LT% LR(Ext)% EA% SF% SC W/ . K  Air W/ . K  Agron
SY-48   Single Glazing 5mm 52 7 53 49 0.56 4.4
6mm 51 7 54 49 0.56 4.3
8mm 51 6 55 48 0.55 4.3
SY-48  Coating in Pos.2 5-12-5mm 46 9 58 41 0.47 2.3 2.0
5-15-5mm 46 9 58 40 0.46 2.1 1.9
6-12-6mm 46 9 59 40 0.46 2.3 2.0
6-15-6mm 46 9 59 40 0.46 2.1 1.9
8-12-8mm 45 9 61 39 0.45 2.3 2.0
8-15-8mm 45 9 61 39 0.45 2.1 1.9
1.The value and performance data shown in the tables are test results and not performance guarantees.
