| Type | Double Silver LowE |
| Thickness | IG Thickness 3/8”（6mm), 1/2”(12mm), 3/4″(19mm), 13/16″(20mm), 7/8″(22mm), 15/16”(24mm), 1″(25mm) |
| Other Colors | Single Glass Type Can Be Clear Glass (3mm – 1/8“, 4mm – 5/32”, 5mm – 3/16”, 6mm - 1/4”) Hard Coated / Soft Coated Low-E Glass (3mm – 1/8“, 4mm – 5/32”, 5mm – 3/16”, 6mm - 1/4”) Bronze,Grey,Blue,Green Tinted Glass (4mm – 5/32”, 5mm – 3/16”, 6mm - 1/4”) Bronze,Grey,Blue,Green Solar Control Glass (4mm – 5/32”, 5mm – 3/16”, 6mm - 1/4”) Laminated Glass (33.1mm,44.2mm,55.2mm ) Acid Etched Glass (3mm – 1/8“, 4mm – 5/32”, 5mm – 3/16”, 6mm - 1/4”) Glazed Glass (4mm – 5/32”, 5mm – 3/16”, 6mm - 1/4”) Fire-resistance Glass (4mm – 5/32”, 5mm – 3/16”, 6mm - 1/4”, 8mm - 5/16”) |
| Standard Size | Min.:300x300mm Max.:2500x6000mm |
| Incoterms | EXW,FOB,CFR,CIF,CIP,DDU,DDP. |
| Lead time | About 20 days upon receipt of your deposit or confirmation. |
| MOQ | 100 Sqm. |

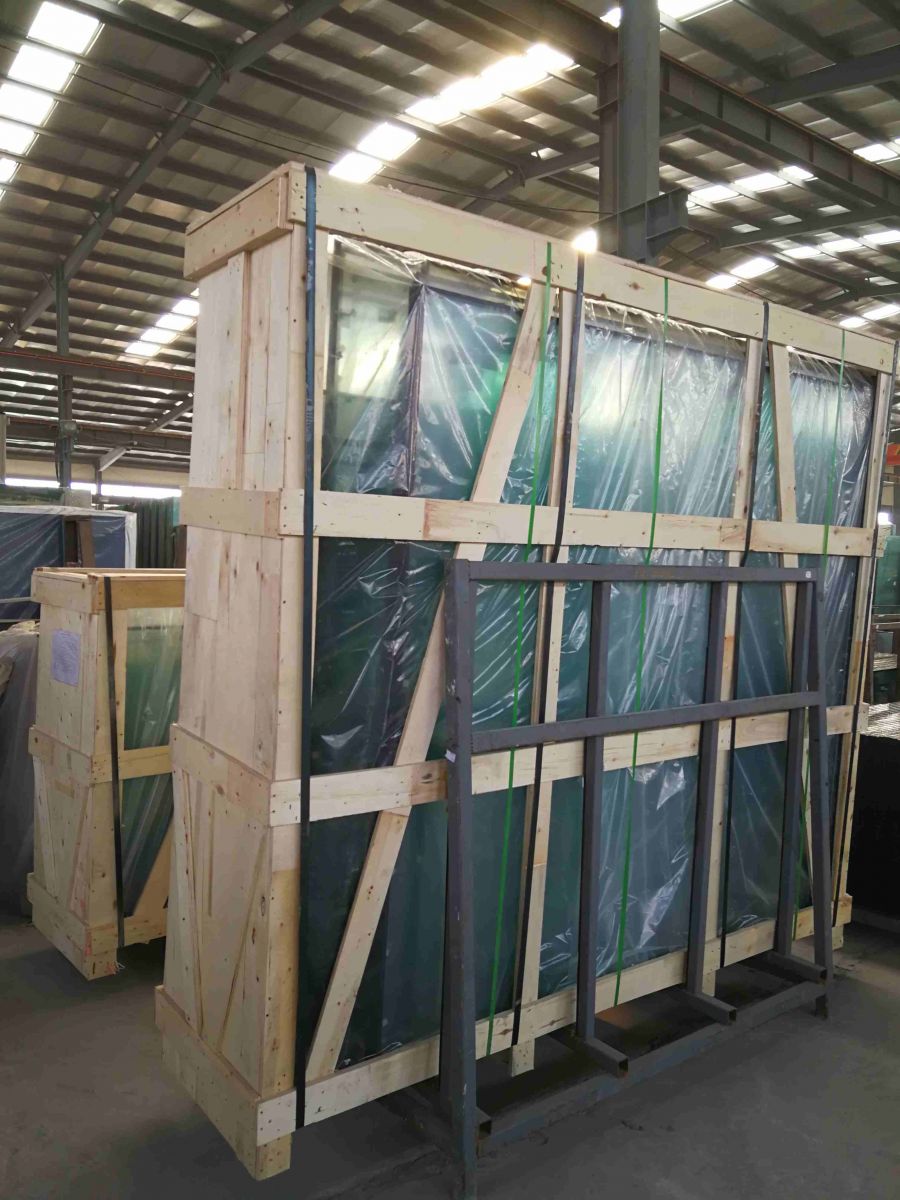

| Package | Cork pad interlayer and standard plywood pallet crates. |
| Payment Terms | T/T, L/C, D/P, Western Union,Paypal. |
| Place of origin | CHINA |
| Type | Double Silver LowE |
| Thickness | IG Thickness 3/8”（6mm), 1/2”(12mm), 3/4″(19mm), 13/16″(20mm), 7/8″(22mm), 15/16”(24mm), 1″(25mm) |
| Other Colors | Single Glass Type Can Be Clear Glass (3mm – 1/8“, 4mm – 5/32”, 5mm – 3/16”, 6mm - 1/4”) Hard Coated / Soft Coated Low-E Glass (3mm – 1/8“, 4mm – 5/32”, 5mm – 3/16”, 6mm - 1/4”) Bronze,Grey,Blue,Green Tinted Glass (4mm – 5/32”, 5mm – 3/16”, 6mm - 1/4”) Bronze,Grey,Blue,Green Solar Control Glass (4mm – 5/32”, 5mm – 3/16”, 6mm - 1/4”) Laminated Glass (33.1mm,44.2mm,55.2mm ) Acid Etched Glass (3mm – 1/8“, 4mm – 5/32”, 5mm – 3/16”, 6mm - 1/4”) Glazed Glass (4mm – 5/32”, 5mm – 3/16”, 6mm - 1/4”) Fire-resistance Glass (4mm – 5/32”, 5mm – 3/16”, 6mm - 1/4”, 8mm - 5/16”) |
| Standard Size | Min.:300x300mm Max.:2500x6000mm |
| Incoterms | EXW,FOB,CFR,CIF,CIP,DDU,DDP. |
| Lead time | About 20 days upon receipt of your deposit or confirmation. |
| MOQ | 100 Sqm. |
| Package | Cork pad interlayer and standard plywood pallet crates. |
| Payment Terms | T/T, L/C, D/P, Western Union,Paypal. |
| Place of origin | CHINA |

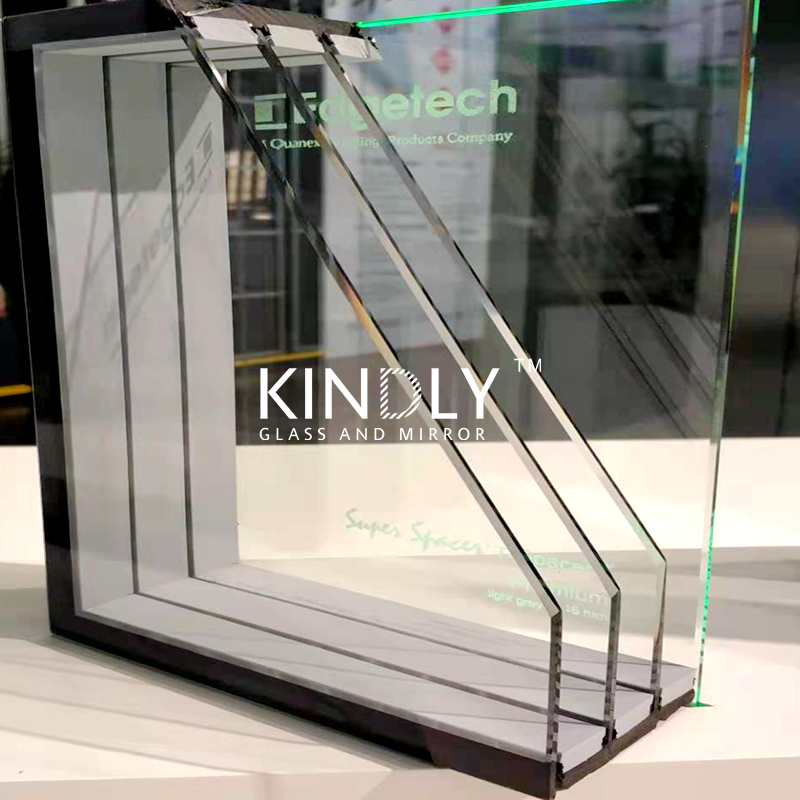

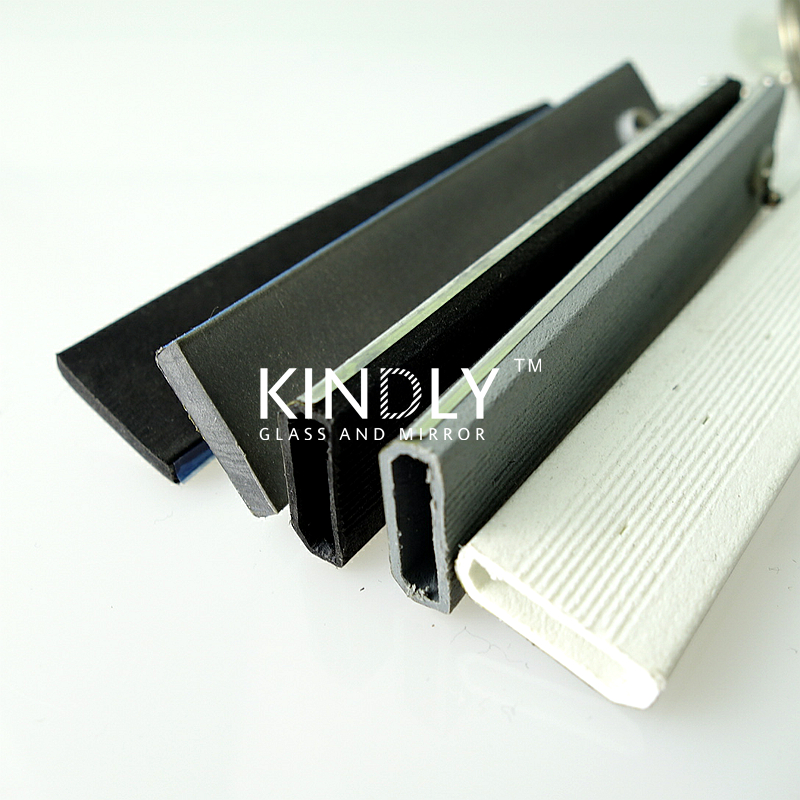

Super Spacer
"Thermo edge" refers to the thermal conductivity of the spacers on the edge of the hollow glass. If the thermal conductivity of the spacer material is lower than that of the traditional aluminum strip, and the product of the material thickness and the thermal conductivity is less than 0.007w/k, it is called a warm edge.
Most of the new spacers have better performance than aluminum, but still contain some metals, and completely non-metal spacers usually have the lowest thermal conductivity.
Super spacer is a thermosetting, elastic, microporous structure, containing silicone and desiccant, covered with a moisture barrier film on the back, and made by extrusion technology. The shape of this thermosetting polymer material is formed when it is heated and cured, and it will not be deformed when it is subjected to secondary heating.
Super spacers can maintain their elasticity in a wide temperature range and always maintain their original shape.
The silicone molecular structure of the Super Spacer has excellent resistance to ozone, ultraviolet rays and oxidation, as well as excellent color stability.
Super spacer hollow system structure description
TriSeal-Three-way sealing structure, suitable for high-performance doors, windows and curtain walls
1. Thermosetting elastic microporous structure, without any metal, the body is silicone material, pre-filled with 3A molecular sieve.
2. The pressure-sensitive adhesive acrylic adhesive is bonded to the glass for the first seal.
3. Comes with butyl rubber for the second seal.
4. Multi-layer water vapor moisture-proof film.
5. Silicone glue, polysulfide glue, polyurethane glue, DSE/DSA or hot melt glue is the third seal.
Premium / Standard double-channel sealing structure, suitable for high-performance doors and windows
1. Thermosetting elastic microporous structure, without any metal, body is silicone or EPDM, pre-filled with 3A molecular sieve.
2. Pressure-sensitive adhesive acrylic adhesive to achieve initial bonding with glass.
3. Multi-layer water vapor moisture-proof film.
4. For the second sealant, hot melt butyl glue or reactive hot melt glue is recommended.
Super spacer performance characteristics
1. The lowest thermal conductivity
The thermal conductivity of super spacers is extremely low, and the thermal resistance is 1000+ times that of traditional aluminum spacers and 100 times that of stainless steel. This means that the hollow glass has less heat conduction and energy loss, making the surface temperature change very small.The surface temperature of the insulating glass made of super spacers is about 8 degrees higher than that of the insulating glass made of traditional aluminum strips.
2. Excellent anti-condensation performance
The insulating glass made of super spacers exhibits extremely high anti-condensation performance, which means that related health problems caused by mold can be basically eliminated, and the insulating glass is also cleaner and more transparent.
3. Excellent oxygen retention performance
Due to its flexibility and continuous sealing at the corners of the super spacer, the hollow glass made has excellent gas retention performance; the German Rosenheim laboratory has verified that the annual oxygen leakage rate is much lower than <1%;
4. Super long sealing durability
The thermosetting microporous elasticity of the super spacer can always return to its original shape after expansion and contraction. However, rigid spacers are not well adapted to the hollow "pump effect". Under the action of assembly stress, the edge of the glass is broken and the butyl rubber moves, which ultimately leads to the failure of the insulating glass seal. In the durability test, the service life of insulating glass made of super spacers is 2-3 times longer than the service life of rigid spacers.According to the ASTM E2188/2190 standard, after high temperature and high humidity climate cycle accelerated aging test, the hollow sealing performance remains intact after multiple rounds of testing.
5. Flexible spacer system, suitable for fully automated hollow production
The world's first flexible spacer technology, and the flexible features of its products have truly realized the automation of insulating glass production. The laying of spacers is automatically completed by a manipulator, with simple technology, high efficiency, no manual intervention, and no human production errors.Fully automatic production line, producing up to 1000 pieces in 7 hours;High-speed automatic production line, producing up to 1480 pieces in 7 hours;
Kindly processed glasses Products are fully accredited to enable you to buy with confidence. Our accreditation include:
ISO9001 | China GB | EN(European Norm) | ANSI(American National Standards Institute) | AS/NZS
