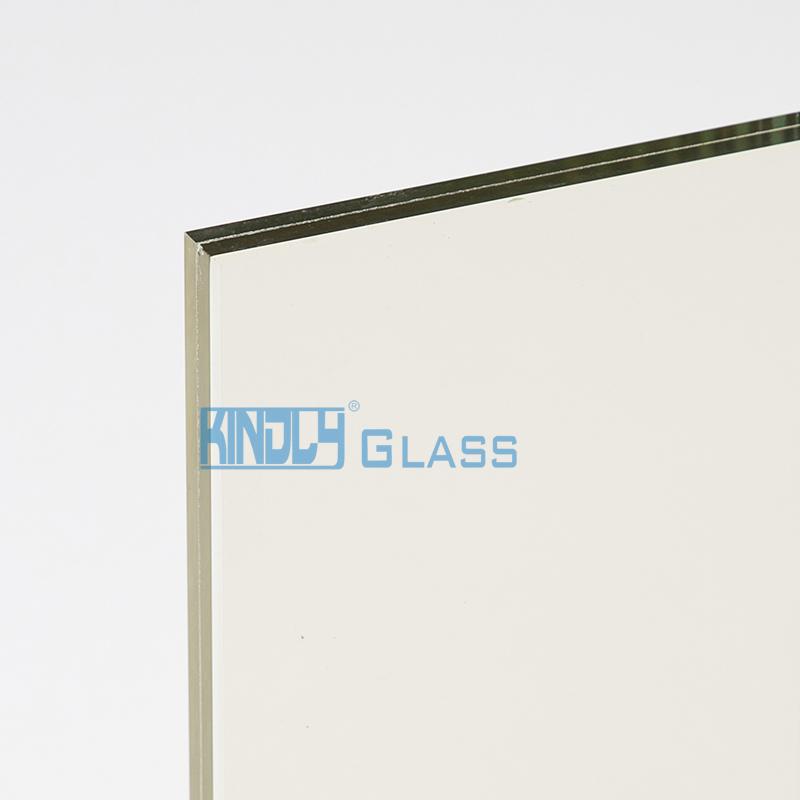

AGC Stopsol Supersilver Clear Lamianted Glass

AGC Stopsol Supersilver Clear Lamianted Glass AGC Stopsol Supersilver Clear Lamianted Glass AGC Stopsol Supersilver Clear Lamianted Glass AGC Stopsol Supersilver Clear Lamianted Glass
Type PVB Laminated Glass
Thickness Standard Thickness
4mm 5mm 6mm 8mm 10mm
Other Colors French Green (Light Green),Dark Green(Natural Green);
Ford Blue, Dark Blue (Diamond Blue);
Kunshan Blue, Crystal Blue; Ocean Blue,
Euro Bronze(Grey Bronze), Golden Bronze,
Blue Grey,Dark Grey, Crystal Grey,
Black; Crystal Yellow.Pink
Standard Size 3300*2440mm
3300*2140mm
3300*5100mm
Incoterms EXW,FOB,CFR,CIF,CIP,DDU,DDP.
Lead time About 20 days upon receipt of your deposit or confirmation.
MOQ 100 Sqm.
Package Paper or cork pad interlayer between two glass panels and plywood crates with straps.
Payment Terms T/T, L/C, D/P, Western Union,Paypal.
Place of origin CHINA


Type PVB Laminated Glass
Thickness Standard Thickness
4mm 5mm 6mm 8mm 10mm
Other Colors French Green (Light Green),Dark Green(Natural Green);
Ford Blue, Dark Blue (Diamond Blue);
Kunshan Blue, Crystal Blue; Ocean Blue,
Euro Bronze(Grey Bronze), Golden Bronze,
Blue Grey,Dark Grey, Crystal Grey,
Black; Crystal Yellow.Pink
Standard Size 3300*2440mm
3300*2140mm
3300*5100mm
Incoterms EXW,FOB,CFR,CIF,CIP,DDU,DDP.
Lead time About 20 days upon receipt of your deposit or confirmation.
MOQ 100 Sqm.
Package Paper or cork pad interlayer between two glass panels and plywood crates with straps.
Payment Terms T/T, L/C, D/P, Western Union,Paypal.
Place of origin CHINA

Laminated glass is a combination of two or more glass sheets with one or more interlayers of plastic (PVB) or resin. In case of breakage, the interlayer holds the fragments together and continues to provide resistance to the passage of persons or objects. This glass is particularly suitable where it is important to ensure the resistance of the whole sheet after breakage such as: shop-fronts, balconies, stair-railings, roof glazing.



Production:

There are two types of laminated glass: PVB and resin laminated glass: PVB laminated glass is two or more sheets of glass which are bonded together with one or more layers (PVB) under heat and pressure to form a single piece. Resins laminated glass is manufactured by pouring liquid resin into the cavity between two sheets of glass which are held together until the resin cures.



Features:

1) Extremely high safety: The PVB interlayer withstands penetration from impact. Even if the glass cracks, splinters will adhere to the interlayer and not scatter. In comparison with other kinds of glass, laminated glass has much higher strength to resist shock, burglary, burst and bullets.

2) Energy-saving building materials: PVB interlayer impedes the transmission of solar heat and reduces cooling loads.

3) Create aesthetic sense to buildings: Laminated glass with a tinted interlayer will beautify the buildings and harmonize their appearances with surrounding views which meet the demand of architects.

4) Sound control: PVB interlayer is an effective absorber of sound.

5) Ultraviolet screening: The interlayer filters out ultraviolet rays and prevents the furniture and curtains from fading effec

The Parameters as following:



Structure Light Properties Thermal Properties U Value
Coating in Pos.4 Thickness L.T.% L.R.(Ext)% D.E.T.% E.R.% S.F.% S.C.% W/m² . K
Stopsol  Supersilver Clear Laminated  4+0.38+4mm 61 34 60 22 66 0.76 5.7
4+0.76+4mm 61 34 59 22 65 0.75 5.6
4+1.14+4mm 61 34 58 21 64 0.74 5.6
4+1.52+4mm 61 34 57 21 64 0.73 5.5
5+0.38+5mm 61 35 59 22 65 0.75 5.6
5+0.76+5mm 61 35 58 22 64 0.74 5.6
5+1.14+5mm 61 35 56 21 63 0.73 5.5
5+1.52+5mm 61 35 56 21 63 0.72 5.5
6+0.38+6mm 60 33 54 19 62 0.72 5.6
6+0.76+6mm 60 33 53 19 62 0.71 5.5
6+1.14+6mm 60 32 52 19 61 0.70 5.4
6+1.52+6mm 60 32 51 18 61 0.70 5.4
8+0.38+8mm 60 31 50 17 60 0.69 5.4
8+0.76+8mm 60 31 49 17 60 0.69 5.4
8+1.14+8mm 59 31 48 17 59 0.68 5.3
8+1.52+8mm 59 30 47 17 59 0.68 5.3
10+0.76+10mm 58 30 47 17 59 0.67 5.3
10+1.14+10mm 58 30 46 16 58 0.67 5.2
10+1.52+10mm 57 29 45 16 58 0.66 5.2

Packing: Paper or cork  pad interlayer between two glass panels and plywood crates with straps.


Crates type including  open crates, end cap, common frame as following:
