| Type | PVB Laminated Glass |
| Thickness | 22.2,33.2,44.2,55.2,66.2 and customization. |
| Other Colors | Clear, ultra clear, tinted glass and coated glass. |
| Standard Size | 1650 x 2440, 1830 x 2440, 1650 x 2140, 2140 x 3300/3660, 2250 x 3300/3660, 2440 x 3300/3660 |
| Incoterms | EXW,FOB,CFR,CIF,CIP,DDU,DDP. |
| Lead time | About 20 days upon receipt of your deposit or confirmation. |
| MOQ | 100 Sqm. |

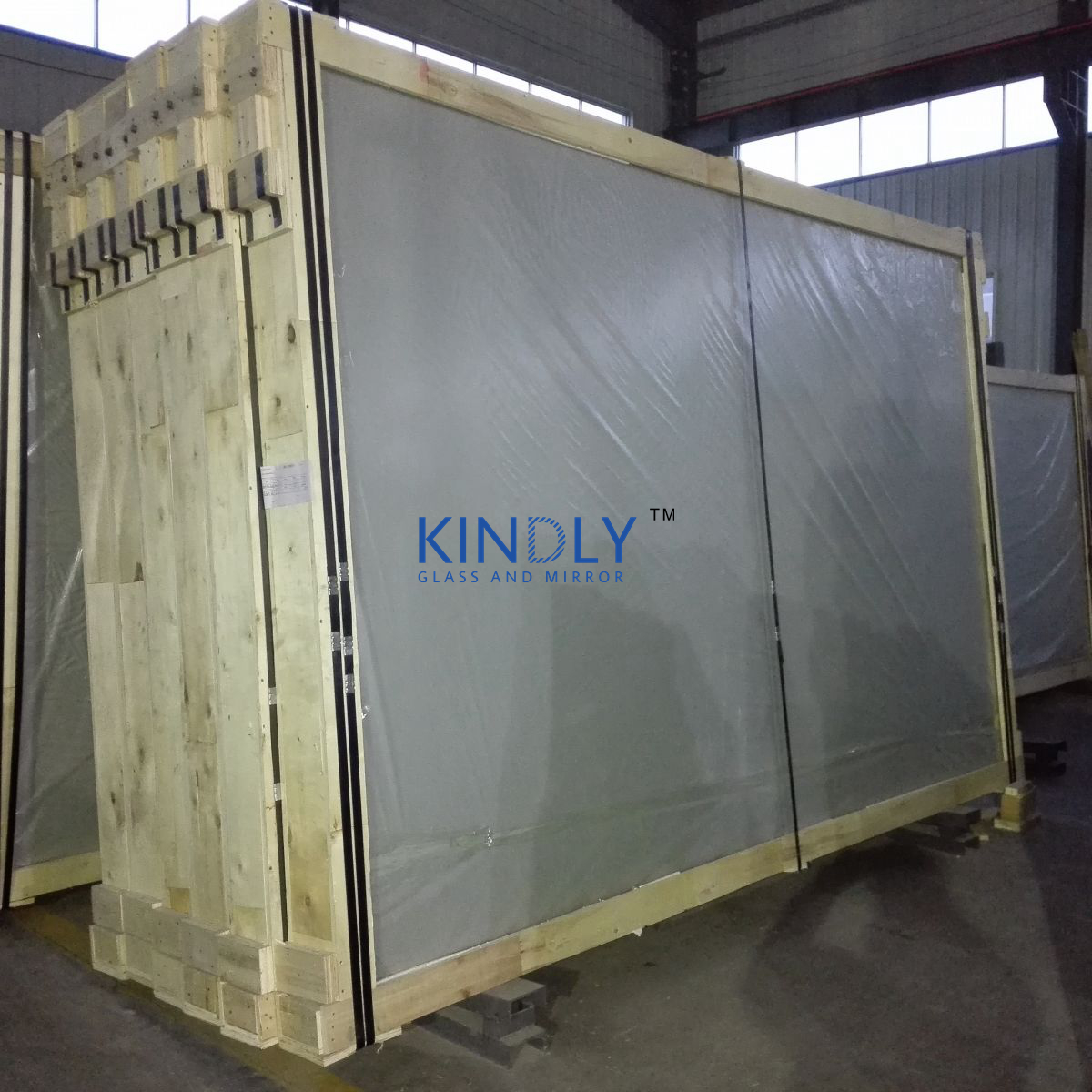

| Package | Paper or powder interlayer between two glass panels and plywood crates with straps. |
| Payment Terms | T/T, L/C, D/P, Western Union,Paypal. |
| Place of origin | CHINA |
| Type | PVB Laminated Glass |
| Thickness | 22.2,33.2,44.2,55.2,66.2 and customization. |
| Other Colors | Clear, ultra clear, tinted glass and coated glass. |
| Standard Size | 1650 x 2440, 1830 x 2440, 1650 x 2140, 2140 x 3300/3660, 2250 x 3300/3660, 2440 x 3300/3660 |
| Incoterms | EXW,FOB,CFR,CIF,CIP,DDU,DDP. |
| Lead time | About 20 days upon receipt of your deposit or confirmation. |
| MOQ | 100 Sqm. |
| Package | Paper or powder interlayer between two glass panels and plywood crates with straps. |
| Payment Terms | T/T, L/C, D/P, Western Union,Paypal. |
| Place of origin | CHINA |
Acoustic PVB normally is 0.76mm made up of two layers of common resin and one layer of sound insulation resin.This multi-layer product was designed with improved handling and processability in mind. The product allows laminators to produce glass laminates with enhanced acoustical properties compared to laminates made with standard polyvinyl butyral(PVB).
Features :
Near the ear is most sensitive at 1000-4000 cycles per second, compared with using conventional middle membrane laminated glass, acoustic laminated glass to produce 5 decibels of sound effects.
|
Test standard |
GBT 8485 |
|
Glass type |
Rw (C, Ctr) |
|
4mm glass |
30 (-2，-3) |
|
2mm+0.76PVB+2mm |
31（-1，-3） |
|
2mm+0.76Acoustic PVB+2mm |
35（0，-3） |
|
3mm+0.76Acoustic PVB+3mm |
37（0，-3） |
.jpg)
Kindly processed glasses Products are fully accredited to enable you to buy with confidence. Our accreditation include:
ISO9001 | China GB | EN(European Norm) | ANSI(American National Standards Institute) | AS/NZS
Kindly Glass & Mirror is a professional supplier of glass panels and good manufacturer of processed glass panels.
