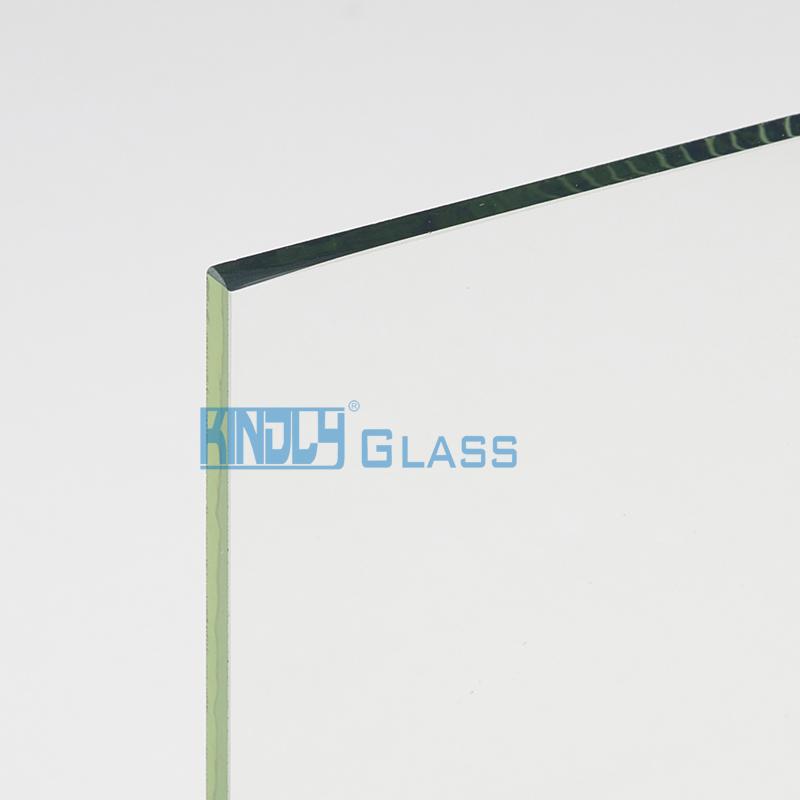

Planibel G Online LowE Glass

Planibel G Online LowE Glass Planibel G Online LowE Glass Planibel G Online LowE Glass Planibel G Online LowE Glass
Type High Transparency
Thickness 3.2,4,5,5.5,6,8,10,12mm
Other Colors Clear
Standard Size 1650 x 2440, 1830 x 2440, 1650 x 2140, 2140 x 3300/3660, 2250 x 3300/3660, 2440 x 3300/3660
Jumbo Size 3300 x 5100mm
Incoterms EXW,FOB,CFR,CIF,CIP,DDU,DDP.
Lead time About 20 days upon receipt of your deposit or confirmation.
MOQ 100 Sqm.
Package Paper or powder interlayer between two glass panels and plywood crates with straps.
Payment Terms T/T, L/C, D/P, Western Union,Paypal.
Place of origin CHINA


Type High Transparency
Thickness 3.2,4,5,5.5,6,8,10,12mm
Other Colors Clear
Standard Size 1650 x 2440, 1830 x 2440, 1650 x 2140, 2140 x 3300/3660, 2250 x 3300/3660, 2440 x 3300/3660
Jumbo Size 3300 x 5100mm
Incoterms EXW,FOB,CFR,CIF,CIP,DDU,DDP.
Lead time About 20 days upon receipt of your deposit or confirmation.
MOQ 100 Sqm.
Package Paper or powder interlayer between two glass panels and plywood crates with straps.
Payment Terms T/T, L/C, D/P, Western Union,Paypal.
Place of origin CHINA

Planibel G

is a pyrolytic, low Emissivity glass. The Low-E coating is applied on a substrate of clear float glass by a pyrolytic process called online CVD (Chemical Vapor Deposition) method.

In winter, the aim of the coating is to reflect the heat back to inside of the building to prevent heat loss and keep the indoor climate at an even temperature.

In summer, the coating will reduce the amount of re-radiated heat into the building thereby keeping indoor cooler. Total heat gain is reduced.

Products Features

  • Online hard coating
  • Stable, virtually unlimited shelf life, long life performance
  • Transparent and neutral color appearance, low light reflection
  • High light transmission and desirable solar gain
  • High durability, easy handling & easy processing (Cutting, laminating,tempering, bending, screen-printing)
  • Can be used as single glazing (surface position#2)
  • No edge deletion and no special handling for IGU

Product Applications

Planibel G has multiple applications in residential and commercial buildings, and also domestic electric appliances like ovens and refrigerator doors thanks to its neutral appearance and high light transmission. The metal oxide coating contributes to the thermal insulating properties of windows & doors, and it reduces the indoors energy consumption.

Combination with reflective / tinted glass glazed on the external pane (IGU), it provides excellent solar shading.

Planibel G Online Coated LowE Glass Parameter
Structure Light Properties Thermal Properties U Value
Single Glazing Thickness LT% LR(Ext)% EA% SF% SC W/㎡ * K  Air W/㎡ * K  Argon
Planibel G  3.2 82 11 19 72 0.83 3.7
4 82 11 20 71 0.82 3.7
5 81 11 23 70 0.8 3.7
6 81 11 24 69 0.79 3.7
8 80 11 26 67 0.77 3.6
10 79 10 29 65 0.75 3.6
12 78 10 31 64 0.74 3.6
Planibel G  4-9-4mm  74 16 27 64 0.74 2.2 1.8
4-12-4mm 74 16 27 64 0.74 1.9 1.6
5-9-5mm 73 16 29 62 0.71 2.2 1.8
5-12-5mm 73 16 29 62 0.71 1.9 1.6
6-12-6mm 72 16 31 61 0.7 1.9 1.6
6-15-6mm 72 16 31 61 0.7 1.7 1.5
8-12-8mm 71 16 36 59 0.68 1.9 1.6
8-15-8mm 71 16 36 59 0.68 1.7 1.5
10-12-10mm 69 15 40 57 0.66 1.9 1.6
10-15-10mm 69 15 40 57 0.66 1.7 1.4
12-12-12mm 68 15 44 55 0.63 1.9 1.6
12-15-12mm 68 15 44 55 0.63 1.7 1.4
1.The value and performance data shown in the tables are test results and not performance guarantees.
Packing: Paper or powder interlayer between two glass panels and plywood crates or wooden crates with straps.

Crates type including  open crates, end cap, common frame as following:
