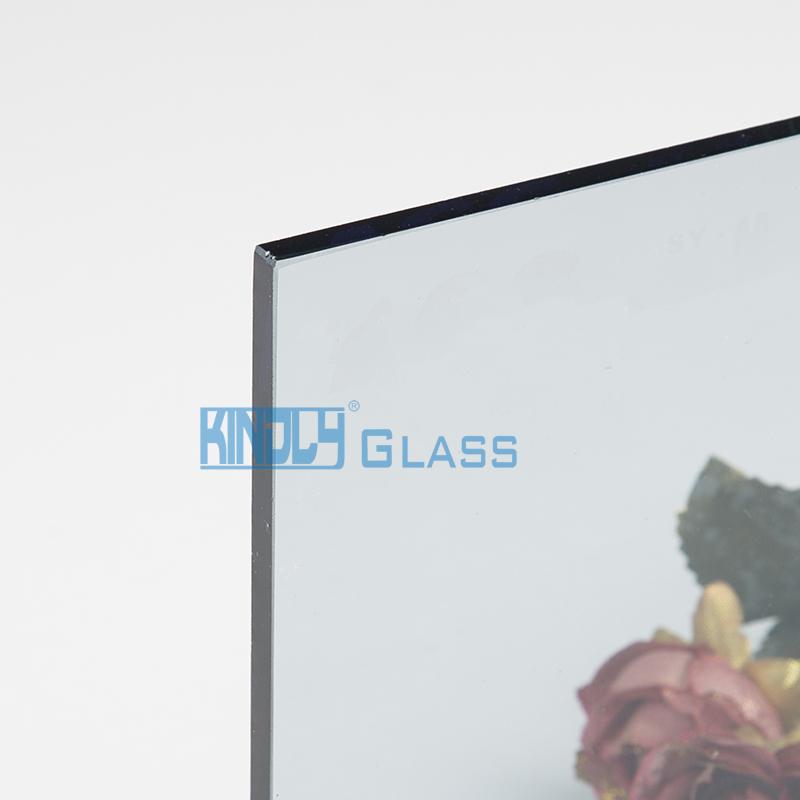

SY 48 Hard Coated LowE Glass

SY 48 Hard Coated LowE Glass SY 48 Hard Coated LowE Glass SY 48 Hard Coated LowE Glass SY 48 Hard Coated LowE Glass
Type High Solar Shading
Thickness 5,5.5,6,8,10mm
Other Colors Grayish Blue
Standard Size 1650 x 2440, 1830 x 2440, 1650 x 2140, 2140 x 3300/3660, 2250 x 3300/3660, 2440 x 3300/3660
Jumbo Size 3300 x 5100mm
Incoterms EXW,FOB,CFR,CIF,CIP,DDU,DDP.
Lead time About 20 days upon receipt of your deposit or confirmation.
MOQ 100 Sqm.
Package Paper or powder interlayer between two glass panels and plywood crates with straps.
Payment Terms T/T, L/C, D/P, Western Union,Paypal.
Place of origin CHINA


Type High Solar Shading
Thickness 5,5.5,6,8,10mm
Other Colors Grayish Blue
Standard Size 1650 x 2440, 1830 x 2440, 1650 x 2140, 2140 x 3300/3660, 2250 x 3300/3660, 2440 x 3300/3660
Jumbo Size 3300 x 5100mm
Incoterms EXW,FOB,CFR,CIF,CIP,DDU,DDP.
Lead time About 20 days upon receipt of your deposit or confirmation.
MOQ 100 Sqm.
Package Paper or powder interlayer between two glass panels and plywood crates with straps.
Payment Terms T/T, L/C, D/P, Western Union,Paypal.
Place of origin CHINA

SY48  High Solar Shading with Low Emissivity

SY 48 is a new line-up of AGC online coated glass products. It has the typical energy saving properties of  Sunergy Clear,moreover, the excellent solar shading performance of SY-48 makes the best-fit for window application in summer hot and winter warm zone and also the environment which solar shading is required. At the condition of 6 SY48 2# + 12 Air + 6 clear,SC value drops to 0.48.

Besides high solar shading, SY 48 also has low emissivity performance. That means it shows good balance of solar shading and thermal insulation.

The neutral grayish blue appearance expands the color range of AGC online coated glass products, and it's also suitable for privacy view and fashion aesthetics of modern.

Features

1.Online hard coating.

2.Cool neutral color and privacy appearance effect.

3.High solar energy shading.

4.Low emmissivity function for thermal insulation.

5.High durability,easy handing and processing such as cutting,laminating,tempering,bending,screen-printing.

6.No edge deletion and no special handing for IGU.

SY-48   Glass Parameter
Structure Light Properties Thermal Properties U-Value
  Thickness LT% LR(Ext)% EA% SF% SC W/ . K Air W/ . K Argon
SY-48    Single  Glazing 5mm 52 7 53 49 0.56 4.4
6mm 51 7 54 49 0.56 4.3
8mm 51 6 55 48 0.55 4.3
SY-48   Coating  in Pos.2 5-12-5mm 46 9 58 41 0.47 2.3 2.0
5-15-5mm 46 9 58 40 0.46 2.1 1.9
6-12-6mm 46 9 59 40 0.46 2.3 2.0
6-15-6mm 46 9 59 40 0.46 2.1 1.9
8-12-8mm 45 9 61 39 0.45 2.3 2.0
8-15-8mm 45 9 61 39 0.45 2.1 1.9
1.The value and performance data shown in the tables are test results and not performance guarantees.
Packing: Paper or powder interlayer between two glass panels and plywood crates or wooden crates with straps.

Crates type including  open crates, end cap, common frame as following:
