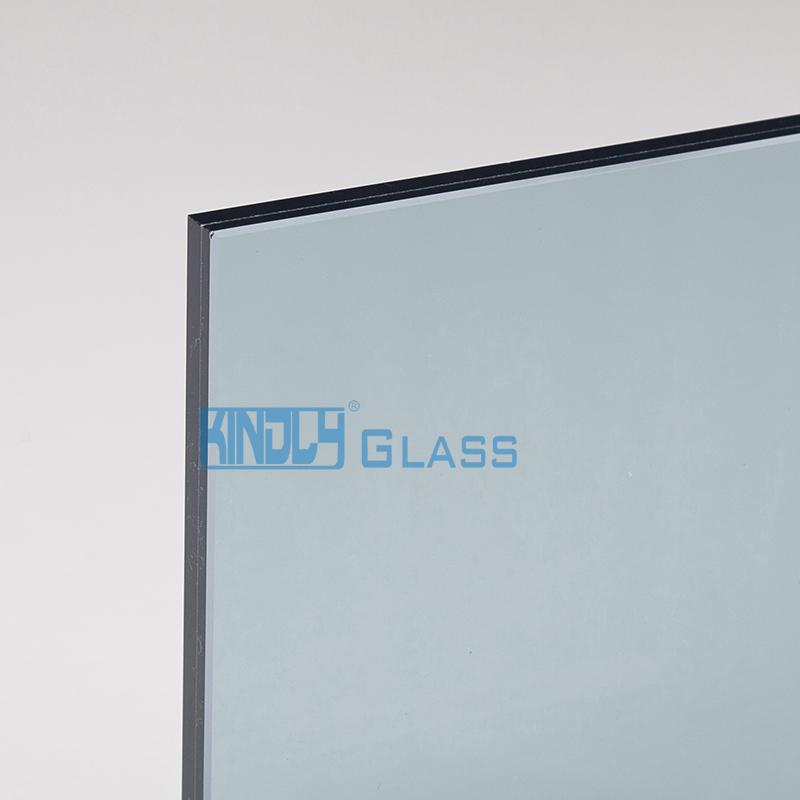

SY48 AGC LowE 1# Clear Laminated Glass

SY48 AGC LowE 1# Clear Laminated Glass SY48 AGC LowE 1# Clear Laminated Glass SY48 AGC LowE 1# Clear Laminated Glass SY48 AGC LowE 1# Clear Laminated Glass
Type PVB Laminated Glass
Thickness Standard Thickness
4mm 5mm 6mm 8mm 10mm
Other Colors French Green (Light Green),Dark Green(Natural Green); Ford Blue, Dark Blue (Diamond Blue); Ocean Blue, Kunshan Blue, Crystal Blue; Euro Bronze(Grey Bronze), Golden Bronze, Pink; Blue Grey,Dark Grey, Crystal Grey, Black; Crystal Yellow.
Standard Size 3300*2440mm
3300*2140mm
3300*5100mm
Incoterms EXW,FOB,CFR,CIF,CIP,DDU,DDP.
Lead time About 20 days upon receipt of your deposit or confirmation.
MOQ 100 Sqm.
Package Paper or cork pad interlayer between two glass panels and plywood crates with straps.
Payment Terms T/T, L/C, D/P, Western Union,Paypal.
Place of origin CHINA


Type PVB Laminated Glass
Thickness Standard Thickness
4mm 5mm 6mm 8mm 10mm
Other Colors French Green (Light Green),Dark Green(Natural Green); Ford Blue, Dark Blue (Diamond Blue); Ocean Blue, Kunshan Blue, Crystal Blue; Euro Bronze(Grey Bronze), Golden Bronze, Pink; Blue Grey,Dark Grey, Crystal Grey, Black; Crystal Yellow.
Standard Size 3300*2440mm
3300*2140mm
3300*5100mm
Incoterms EXW,FOB,CFR,CIF,CIP,DDU,DDP.
Lead time About 20 days upon receipt of your deposit or confirmation.
MOQ 100 Sqm.
Package Paper or cork pad interlayer between two glass panels and plywood crates with straps.
Payment Terms T/T, L/C, D/P, Western Union,Paypal.
Place of origin CHINA

Laminated glass is a combination of two or more glass sheets with one or more interlayers of plastic (PVB) or resin. In case of breakage, the interlayer holds the fragments together and continues to provide resistance to the passage of persons or objects. This glass is particularly suitable where it is important to ensure the resistance of the whole sheet after breakage such as: shop-fronts, balconies, stair-railings, roof glazing.



Production:

There are two types of laminated glass: PVB and resin laminated glass: PVB laminated glass is two or more sheets of glass which are bonded together with one or more layers (PVB) under heat and pressure to form a single piece. Resins laminated glass is manufactured by pouring liquid resin into the cavity between two sheets of glass which are held together until the resin cures.



Features:

1) Extremely high safety: The PVB interlayer withstands penetration from impact. Even if the glass cracks, splinters will adhere to the interlayer and not scatter. In comparison with other kinds of glass, laminated glass has much higher strength to resist shock, burglary, burst and bullets.

2) Energy-saving building materials: PVB interlayer impedes the transmission of solar heat and reduces cooling loads.

3) Create aesthetic sense to buildings: Laminated glass with a tinted interlayer will beautify the buildings and harmonize their appearances with surrounding views which meet the demand of architects.

4) Sound control: PVB interlayer is an effective absorber of sound.

5) Ultraviolet screening: The interlayer filters out ultraviolet rays and prevents the furniture and curtains from fading effec3300*2440mm
3300*2140mm
3300*5100mm



Structure Light Properties Thermal Properties U Value
Coating in Pos.4 Thickness L.T.% L.R.(Ext)% D.E.T.% E.R.% S.F.% S.C.% W/m² . K
SY48 AGC Low E Clear Laminated Glass  5+0.38+5mm 51 7 34 7 48 0.56 4.3
5+0.76+5mm 51 7 34 6 48 0.56 4.2
5+1.14+5mm 51 7 33 6 48 0.55 4.2
5+1.52+5mm 51 6 33 6 47 0.55 4.2
6+0.38+6mm 50 7 33 7 47 0.55 4.2
6+0.76+6mm 50 7 33 6 47 0.55 4.2
6+1.14+6mm 50 7 32 6 47 0.55 4.2
6+1.52+6mm 50 7 32 6 47 0.55 4.1
8+0.76+8mm 49 6 31 6 46 0.54 4.1
8+1.14+8mm 49 6 30 6 46 0.54 4.1
8+1.52+8mm 49 6 30 6 46 0.53 4.1
10+0.76+10mm 50 7 29 6 44 0.52 3.9
10+1.14+10mm 50 7 29 6 44 0.52 3.9
10+1.52+10mm 50 7 29 6 45 0.52 3.8

Packing: Paper or cork  pad interlayer between two glass panels and plywood crates with straps.


Crates type including  open crates, end cap, common frame as following:
